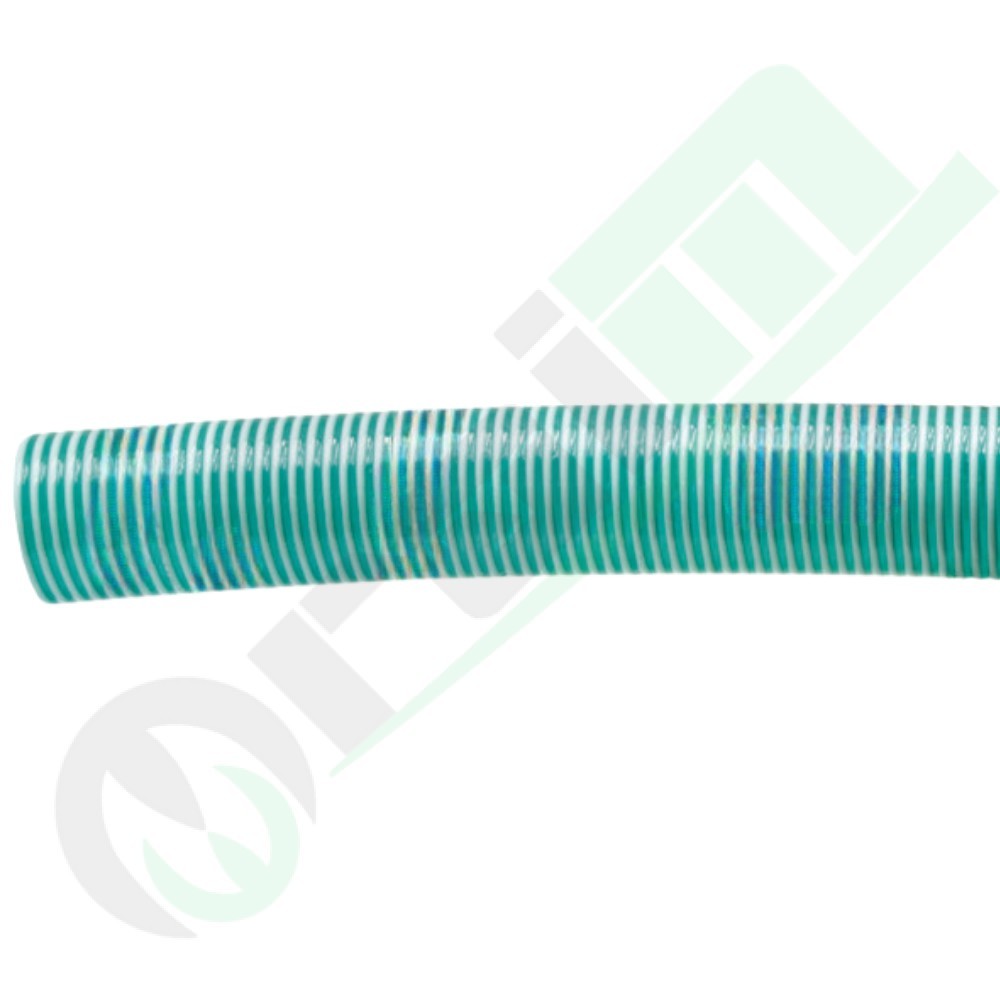

Pressure and Suction PVC Hose 63mm 2 1/2 Inch By The Meter Part No 4050520063

The Hose 4050520063 is made of soft PVC with polyester fiber reinforcement and a spiral structure. It offers excellent resistance to chemical agents while remaining easy to handle. With a 63 mm (2 1/2 inch) internal diameter, it is designed for both pressure and suction applications, ensuring reliable performance with a working pressure of 5 bar within a temperature range of -5°C to +60°C.

Dual Pressure & Suction Capability
Smooth Inner Bore
Lightweight & Chemical Resistant

€9.00VAT incl.

Coupon -€0.18 -2% sul carrello

Sconto extra riservato ai clienti registrati

Accedi per sbloccare il codice

Prezzo finale con coupon: €8.82

Not sure it fits?Message us with your tractor model

Secure paymentsEasy returnsFree shipping over €30 + VAT

Description

The Hose 4050520063 is made of soft PVC with polyester fiber reinforcement and a spiral structure. It offers excellent resistance to chemical agents while remaining easy to handle. With a 63 mm (2 1/2 inch) internal diameter, it is designed for both pressure and suction applications, ensuring reliable performance with a working pressure of 5 bar within a temperature range of -5°C to +60°C.

Key features

Dual Pressure & Suction CapabilityThe specialized spiral structure reinforced with high-strength polyester enables the hose to operate efficiently under both pressure delivery (up to 5 bar) and suction phases without collapsing or flat pinching under load.

Smooth Inner BoreFeaturing a completely smooth internal surface to minimize friction losses, optimize flow rate, and prevent deposits, build-up, or clogging inside the line.

Lightweight & Chemical ResistantFormulated from premium lightweight PVC compound, this hose is highly flexible and easy to handle in outdoor conditions while offering superior resistance to weather exposure and a broad range of chemicals.

Specifications

Product Code	4050520063
Hose Type	Spiral pressure and vacuum (suction) hose
Construction & Reinforcement	Soft PVC with polyester insert, smooth inner bore
Inside Diameter (ID)	63 mm (2 1/2")
Outside Diameter (OD)	70.6 mm
Wall Thickness	3.8 mm
Working Pressure	5 bar
Bending Radius	290 mm
Temperature Range	-5 °C to +60 °C
Food Grade Safe	NO
Format	By the meter (Full roll length 50 m)
