Pressure and Suction PVC Hose 100mm 4 Inch By The Meter Part No 4050520098

star star star star star_border
Granit
4050520098

The Hose 4050520098 is made of soft PVC with polyester fiber reinforcement and a spiral structure. It offers excellent resistance to chemical agents while remaining easy to handle. With a 100 mm (4 inch) internal diameter, it is designed for both pressure and suction applications, ensuring reliable performance with a working pressure of 4 bar within a temperature range of -5°C to +60°C.

Hurry! only 25 items left in stock.
€16.90
Tax included
COUPON
- € 0,34
Final price: € 16,56
Quantity

Alta disponibilità
Add to Compare
Add to Wishlist
Security Policy
Security Policy

Secure Shopping. Data protected with encryption. Your privacy is our priority!

Shipping Policy
Shipping Policy

Fast & Reliable Shipping. Orders handled with care. Various options available.

Secure Payments
Secure Payments

Secure Payments! Transactions protected by encryption. Your safety is guaranteed.

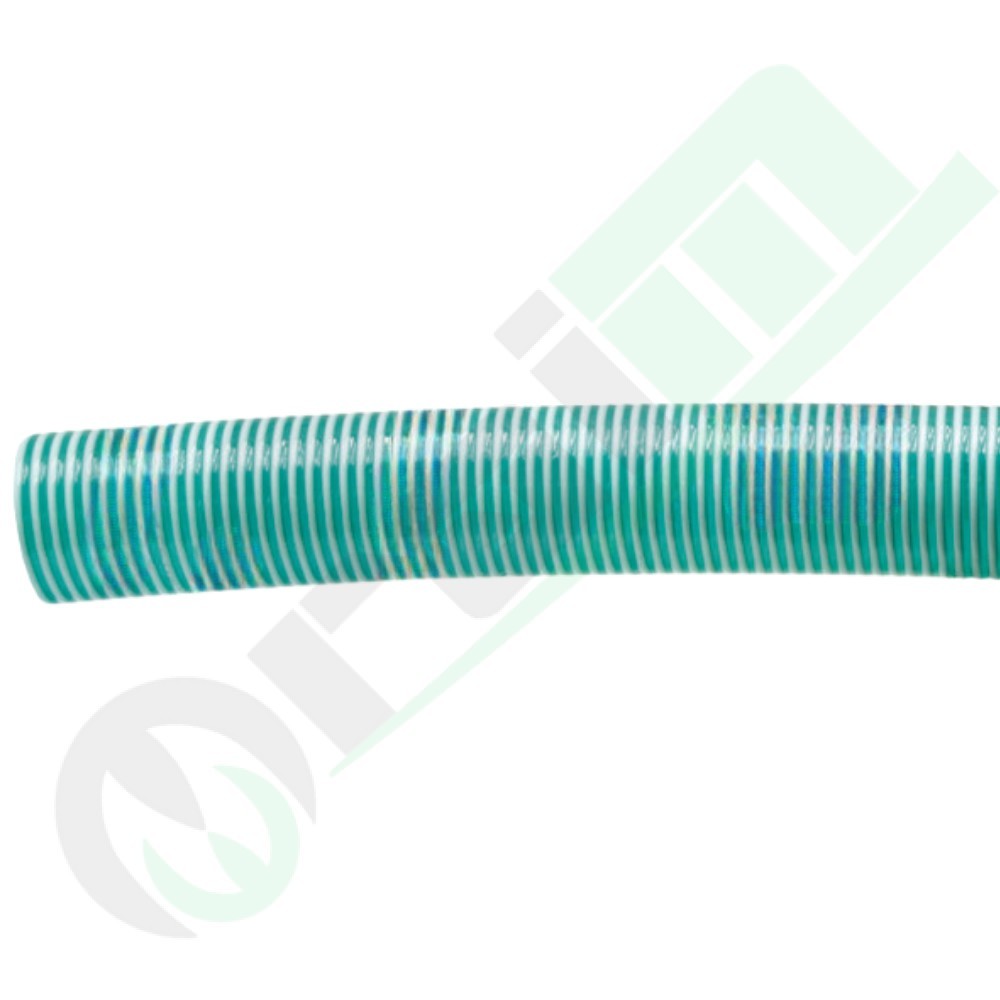

PVC Pressure & Vacuum Spiral Hose ID 100mm (4”) Custom Length (4050520098)

This premium, extra-large diameter flexible PVC spiral hose is specifically engineered for high-demand agricultural and industrial applications requiring maximum volumetric flow rates under both pressure and vacuum (suction). Reinforced with a strong polyester fiber insert and featuring a completely smooth inner bore to optimize fluid transfer, it combines heavy-duty structural robustness with outstanding chemical and atmospheric resistance.
⚠️ RETURN POLICY NOTE: Since this hose is sold by the meter and custom-cut to the length requested by the customer, returns are not accepted.
Key Features
  • Dual Pressure & Suction Capability: The specialized spiral structure reinforced with high-strength polyester combined with a massive 6 mm wall thickness allows the hose to operate safely under pressure delivery (up to 4 bar) and suction phases without risk of kinking or flat pinching under load.
  • Smooth Inner Bore: The completely smooth internal surface minimizes friction losses, optimizes flow velocity, and prevents deposits, sludge build-up, or clogging inside the line.
  • Premium Industrial Durability: Formulated from a high-grade PVC compound, this hose offers excellent resistance to external abrasion, UV radiation, ozone, and severe weather exposure for long-term outdoor operation.
Technical Specifications
Product Code 4050520098
Hose Type Spiral pressure and vacuum (suction) hose
Construction & Reinforcement Soft PVC with polyester insert, smooth inner bore
Inside Diameter (ID) 100 mm (4")
Outside Diameter (OD) 112 mm
Wall Thickness 6 mm
Working Pressure 4 bar
Bending Radius 500 mm
Temperature Range -5 °C to +60 °C
Food Grade Safe NO
Format By the meter (Full roll length 50 m)
: 4050520098
