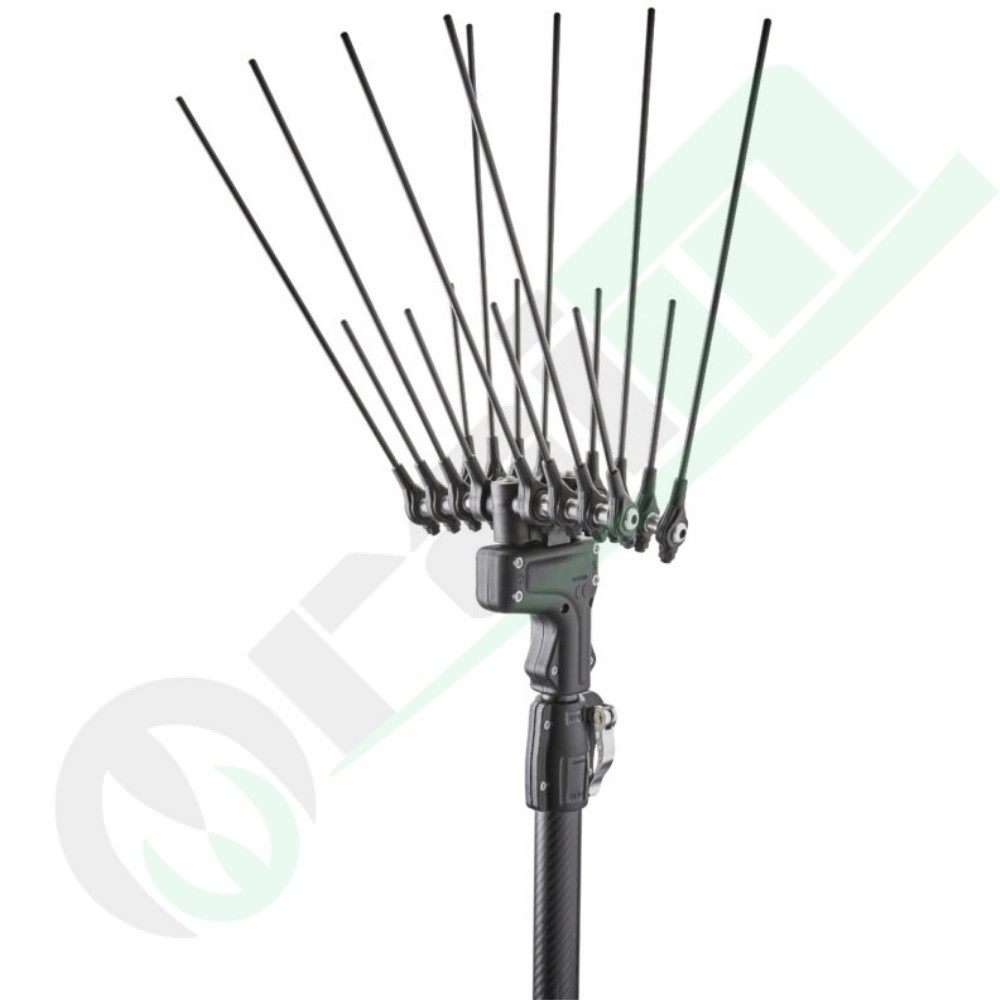

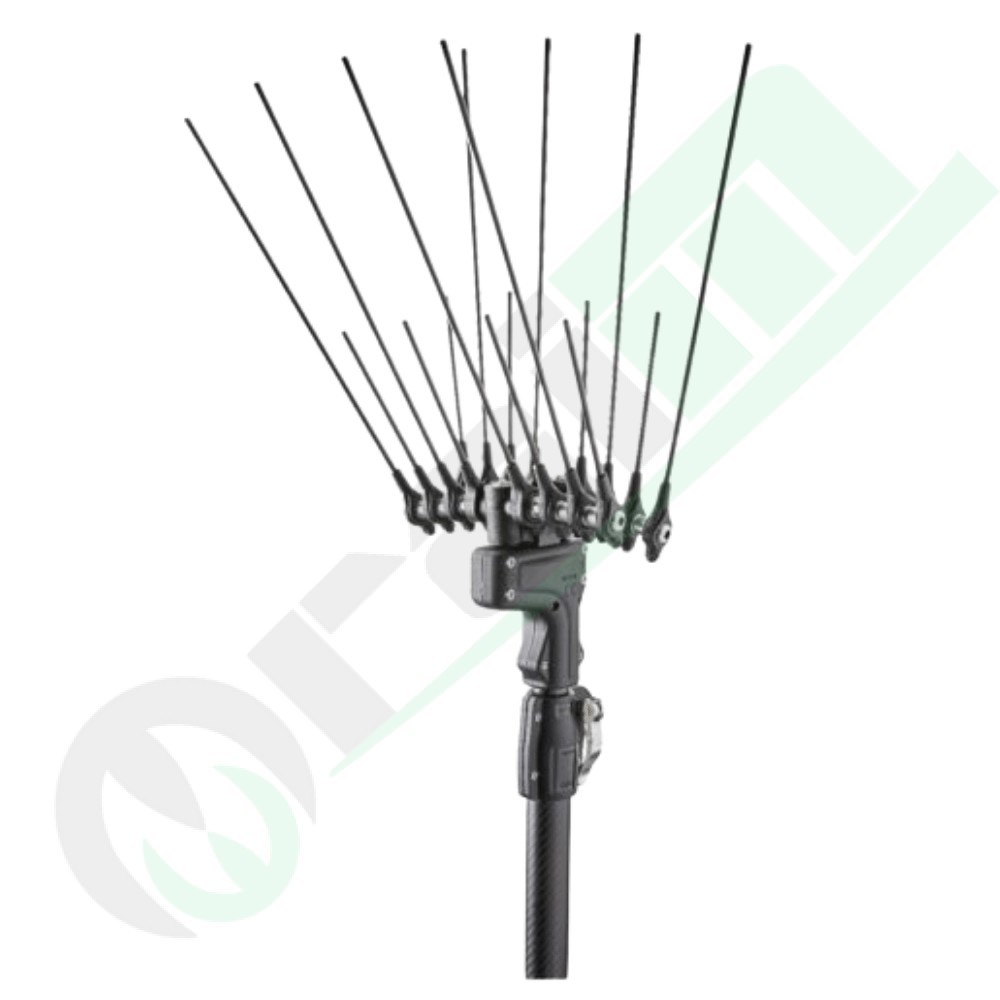

OlivGreen 700 Plus Telescopic 12V Electric Olive Harvester - Model: OG700S-PLUS / Part Number: MEOG700SPLUS
The OlivGreen 700 Plus professional electric battery-powered olive harvester (model OG700S-PLUS, commercial part number MEOG700SPLUS)[cite: 1] is an authentic high-efficiency harvesting tool engineered to satisfy demanding professional olive harvesting standards[cite: 1]. Suitable for operation across diverse olive cultivars and vegetation conditions (from well-pruned groves to dense, overgrown canopies), it features an advanced opposed elliptical dual-rake motion that maximizes olive yield while protecting bark and minimizing defoliation. The tool achieves outstanding ergonomic balance by housing the 12V electric motor with replaceable carbon brushes and mechanical gear reduction unit inside the handle base rather than on top of the pole. Equipped with an extendable telescopic pole adjusting from 1.7 to 2.2 meters with a quick-action lock[cite: 1], a safety lock ON/OFF switch, and a heavy-duty 13-meter extension power cable, it delivers high productivity of 85 – 105 kg/h[cite: 1] with an ultralight total weight of just 2.6 kg[cite: 1].
Key Features & Operational Advantages
- Opposed Elliptical Dual-Comb Kinematics: Fast 1,200 beats per minute (bpm)[cite: 1] oscillatory movement that penetrates dense branches smoothly, knocking down mature and tenaciously attached fruit without tearing off foliage or snapping tender twigs.

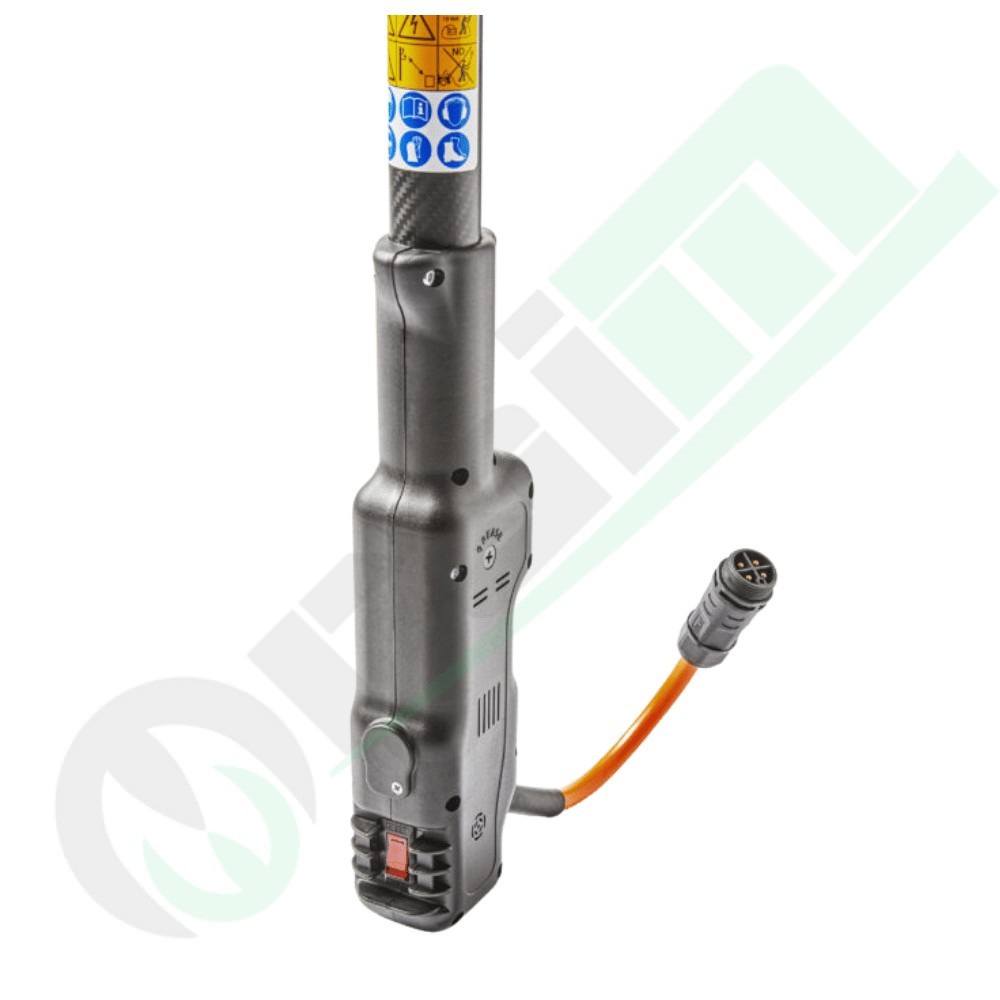

- Low-Mounted 12V Motor (Bottom-Balanced Handle): Locating the 12V motor (with easily serviceable brushes)[cite: 1] and gearbox in the base handle eliminates top-heavy inertia, significantly reducing operator shoulder and back fatigue during all-day shifts.

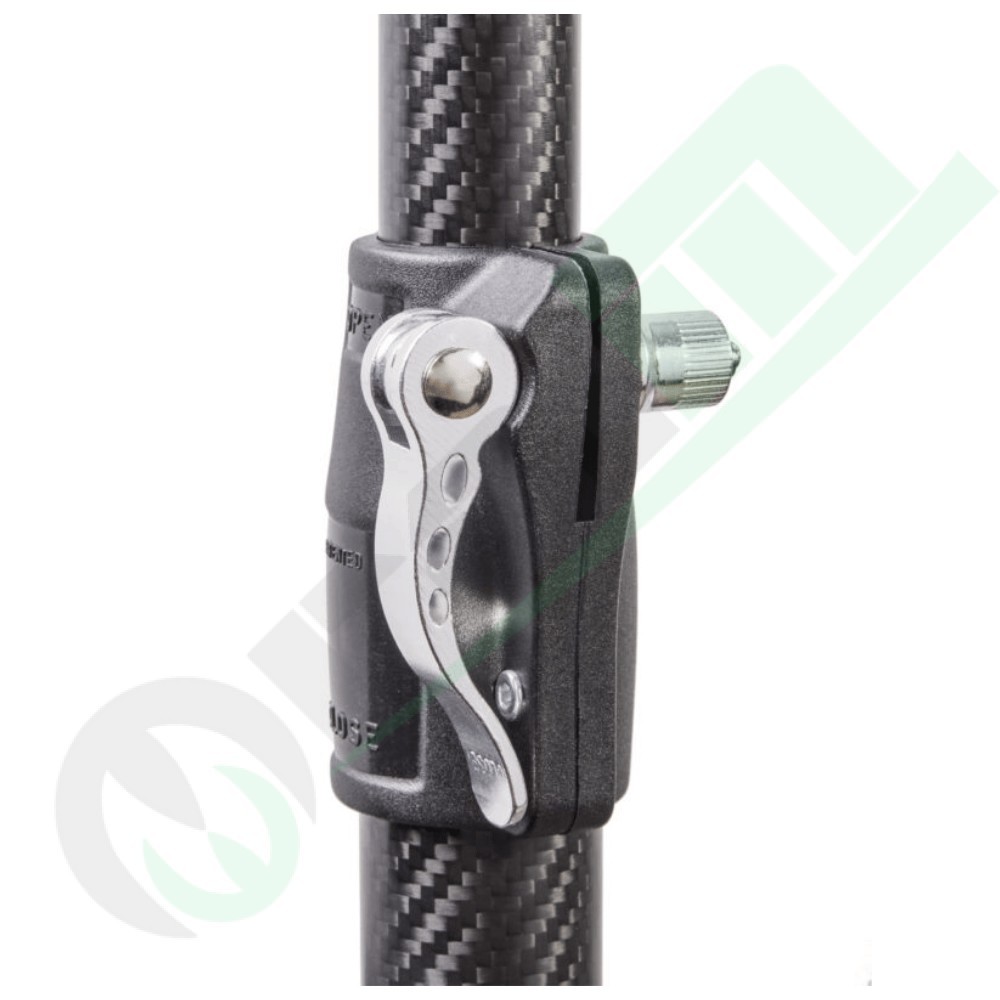

- Adjustable Telescopic Pole (1.7 > 2.2 m): Lightweight high-rigidity telescopic shaft with quick-cam locking mechanism[cite: 1], allowing ground-level pruning and harvesting reach up to 3.5 meters high.
- High Professional Hourly Output (85 – 105 kg/h): Exceptional harvesting capacity[cite: 1] optimized for both olive oil orchards and table olive harvesting across varying ripeness stages.
- Low Power Consumption (6 – 8 Ah): Economical average power draw of only 6–8 Ah[cite: 1], fully compatible with standard 12V automotive or tractor batteries rated at 60–80 Ah[cite: 1] for full-day field autonomy.
- Heavy-Duty 13-Meter Power Harness: Extra-long insulated extension cable complete with heavy-duty battery alligator clamps for wide operational mobility around trees without shifting the battery tray.
- Safety Lockout ON/OFF Switch: Protected power switch prevents accidental motor startup during transport, ladder maneuvers, or tool repositioning.
Technical Specifications
| Model Designation |
OG700S-PLUS (OlivGreen 700 Plus)[cite: 1] |
| Commercial Part Number |
MEOG700SPLUS[cite: 1] |
| Operating Voltage |
12 V[cite: 1] |
| Beating Frequency |
1200 bpm (beats per minute)[cite: 1] |
| Harvesting Kinematics |
Opposed elliptical dual-rake action (low-defoliation motion) |
| Estimated Harvesting Output |
85 – 105 kg/h[cite: 1] |
| Average Current Draw |
6 – 8 Ah[cite: 1] |
| Recommended Power Supply |
Standard 12V lead-acid battery rated at 60 – 80 Ah[cite: 1] |
| Telescopic Pole Length |
Adjustable from 1.7 to 2.2 m[cite: 1] |
| Total Tool Weight |
2.6 kg[cite: 1] |
| Motor & Drive Unit |
12V DC electric motor with replaceable carbon brushes + reduction gearbox[cite: 1] |
| Included Standard Accessories |
13 m insulated power cable with battery clamps |
Orchard Suitability & Application Scope
| Grove / Canopy Environment |
Performance Advantages & Compatibility |
| Intensive & Pruned Groves |
1200 bpm stroke speed[cite: 1] facilitates rapid sweeping across fruiting wood, reaching high output rates (85–105 kg/h)[cite: 1] without foliage loss |
| Thick & Semi-Wild Canopies |
Opposed-motion tines effortlessly work through intertwined vegetative growth to drop hard-to-reach inner olives |
| Ground-Level High Canopy Harvesting |
Telescopic adjustment up to 2.2 m[cite: 1] enables comfortable work up to ~3.5 meters high from ground level without relying on ladders |
Operating Guidelines & Workshop Maintenance Notes: Before starting, connect the alligator clamps of the 13 m cable to a fully charged 12V battery (recommended capacity: 60–80 Ah)[cite: 1], observing strict polarity (red to positive, black to negative). Set the telescopic pole to the desired working length (1.7 – 2.2 m)[cite: 1] and lock the cam lever securely to avoid slippage under load. During operation, grip the handle firmly and activate the safety ON/OFF switch: guide the combs through the outer branches moving downwards with fluid motions, avoiding jamming the tines against thick structural branches to prevent gearbox overload. At the end of each working shift, blow out olive leaf dust and debris from the harvesting head with compressed air, inspect tine tightness, and regularly check the wear status of the replaceable motor carbon brushes.
