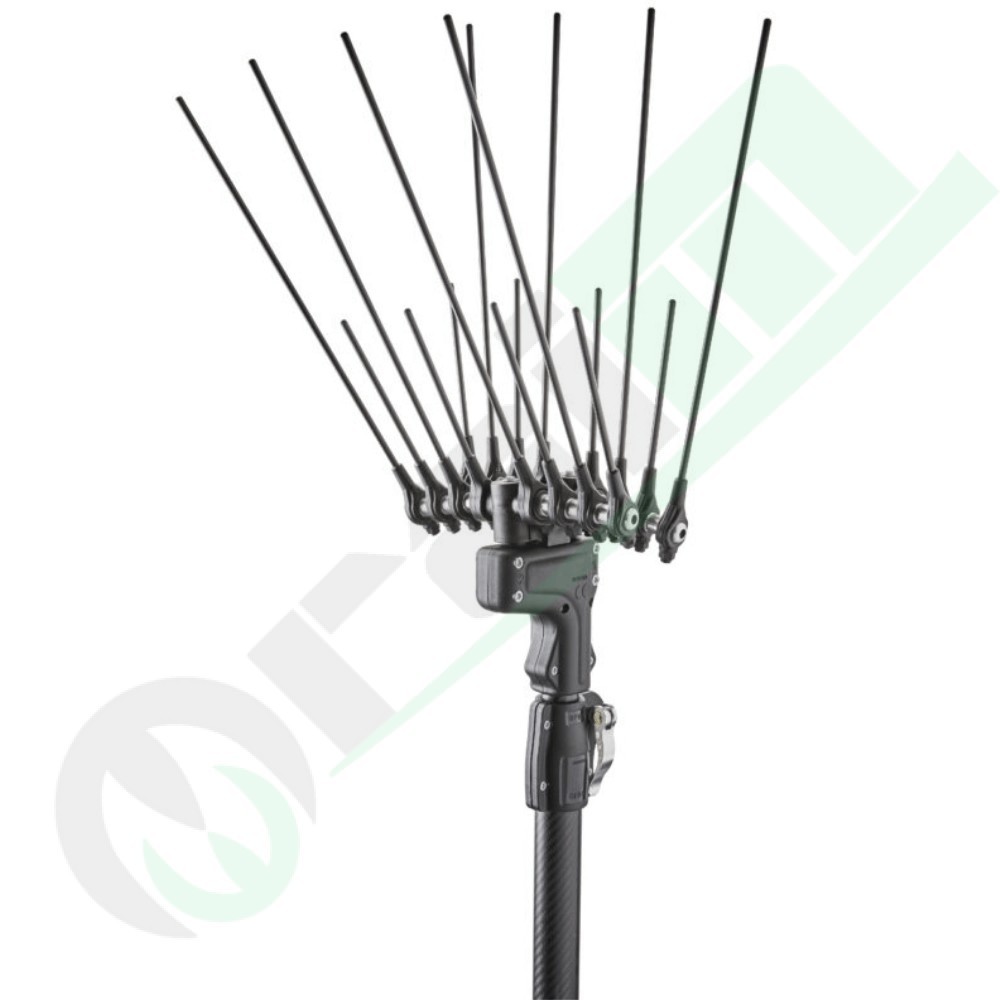

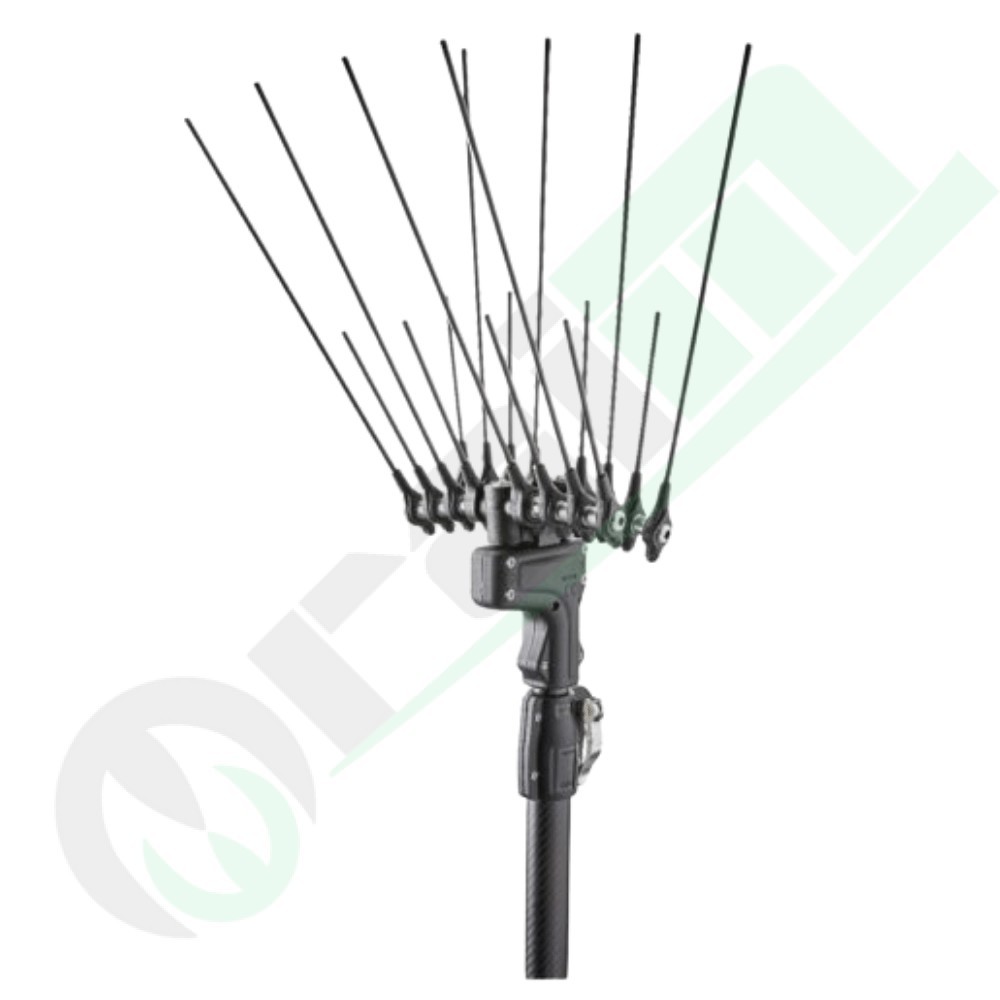

OlivGreen 700 Plus Long Telescopic 12V Electric Olive Harvester - Model: OG700 PLUS / Part Number: MEOG700PLUS

The OlivGreen 700 Plus extended-reach electric olive harvester (model OG700 PLUS, commercial part number MEOG700PLUS)[cite: 2] is a professional harvesting machine engineered for high-canopy trees and large olive groves. Suitable for operating across diverse olive cultivars and vegetation types, its opposed elliptical dual-comb movement ensures high harvesting yields while protecting foliage from excessive shedding. The tool delivers excellent ergonomic balance thanks to the 12V electric motor with replaceable brushes and gear reducer integrated directly into the handle at the base of the pole. Equipped with an extended telescopic pole adjusting from 2.2 to 3.1 meters with a quick-locking system[cite: 2], a safety lockout ON/OFF switch, and a 13-meter extension power cable, it delivers high harvesting productivity of 85 – 105 kg/h[cite: 2] with a low total weight of just 2.8 kg[cite: 2].

Key Features & Operational Advantages

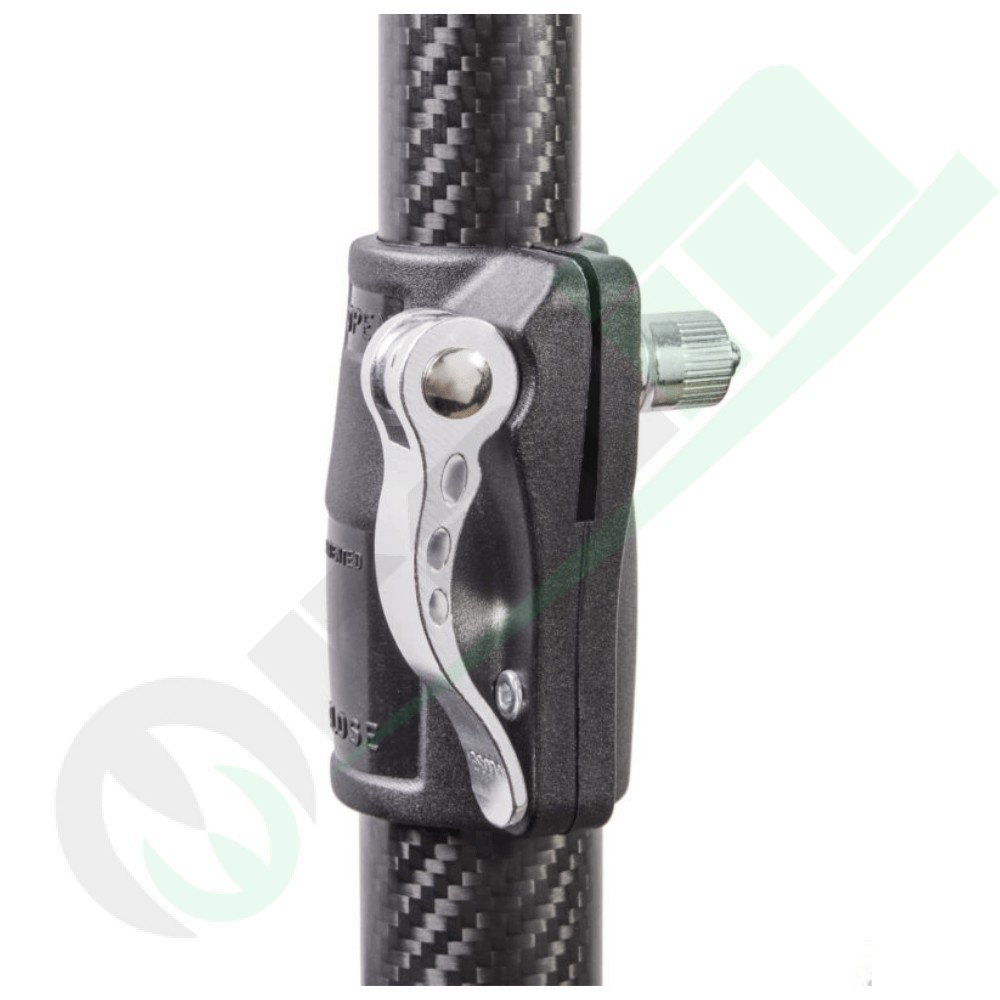

• Extended Telescopic Pole (2.2 > 3.1 m): Wide adjustment range from 2.2 to 3.1 meters with a quick-locking mechanism[cite: 2], allowing operators to harvest high canopies directly from ground level safely.
• Opposed Elliptical Dual-Comb Motion: 1,200 beats per minute (bpm) oscillation rate[cite: 2] that allows the tines to penetrate dense foliage smoothly, knocking down fruit without damaging limbs or twigs.

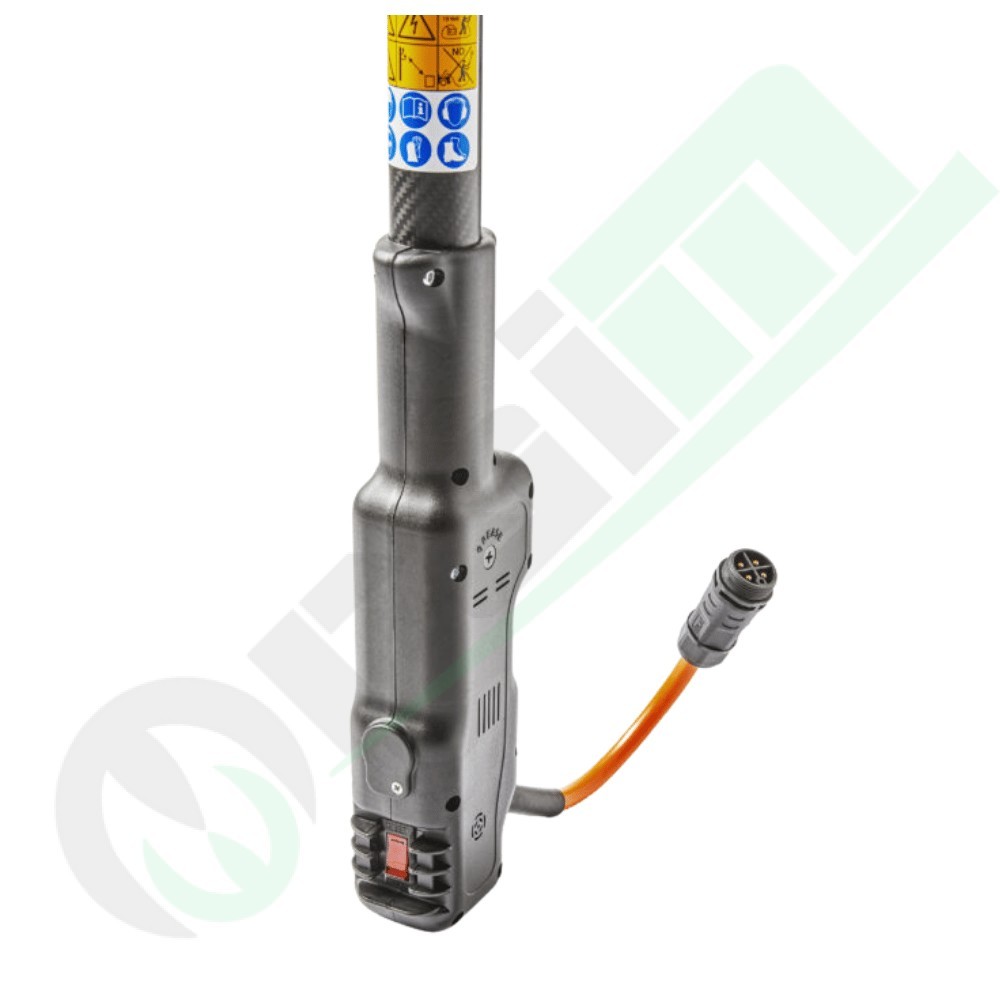

• Handle-Mounted Motor & Gearbox: The 12V motor with easily replaceable brushes and reduction gearbox is housed at the base handle, keeping the head light and minimizing arm and back fatigue.
• High Harvesting Capacity (85 – 105 kg/h): Professional productivity rate[cite: 2] designed for intensive harvesting across all standard olive varieties.
• Low Power Consumption (6 – 8 Ah): Average current draw of only 6 to 8 Ah[cite: 2], easily powered by standard 12V lead-acid batteries (60–80 Ah)[cite: 2] for full-day field autonomy.
• 13-Meter Extension Cable: Heavy-duty power harness with battery clamps, providing ample working radius around trees without moving the battery unit constantly.
• Safety Lockout ON/OFF Switch: Protected power switch designed to prevent unintended activation during handling and transport.

Technical Specifications

Orchard Suitability & Application Scope

Grove / Tree Type	Operational Advantages (2.2 – 3.1 m Version)
Tall & Mature Trees	Telescopic reach up to 3.1 meters[cite: 2] enables easy ground-level harvesting of top branches, removing the safety hazards of ladders
Thick & Unpruned Canopies	Opposed elliptical motion easily penetrates intertwined foliage to detach stubborn inner fruit without tearing branches
Sloped & Terraced Groves	Balanced weight distribution (2.8 kg total weight)[cite: 2] provides comfortable handling on uneven hillside terrain

Operating Guidelines & Workshop Maintenance Notes: Connect the 13 m cable clamps to a fully charged 12V battery (recommended 60–80 Ah)[cite: 2], ensuring correct polarity (red to positive, black to negative). Set the telescopic pole to the required reach (2.2 – 3.1 m)[cite: 2] and firmly clamp the lock lever before starting work. Operate the safety ON/OFF switch and guide the tines gently through the canopy, avoiding forcing the tool against thick structural branches to protect the reduction gearbox. After finishing work, blow away leaves and debris from the harvesting head using compressed air, check tine tightness, and periodically inspect the wear level of the motor carbon brushes.
