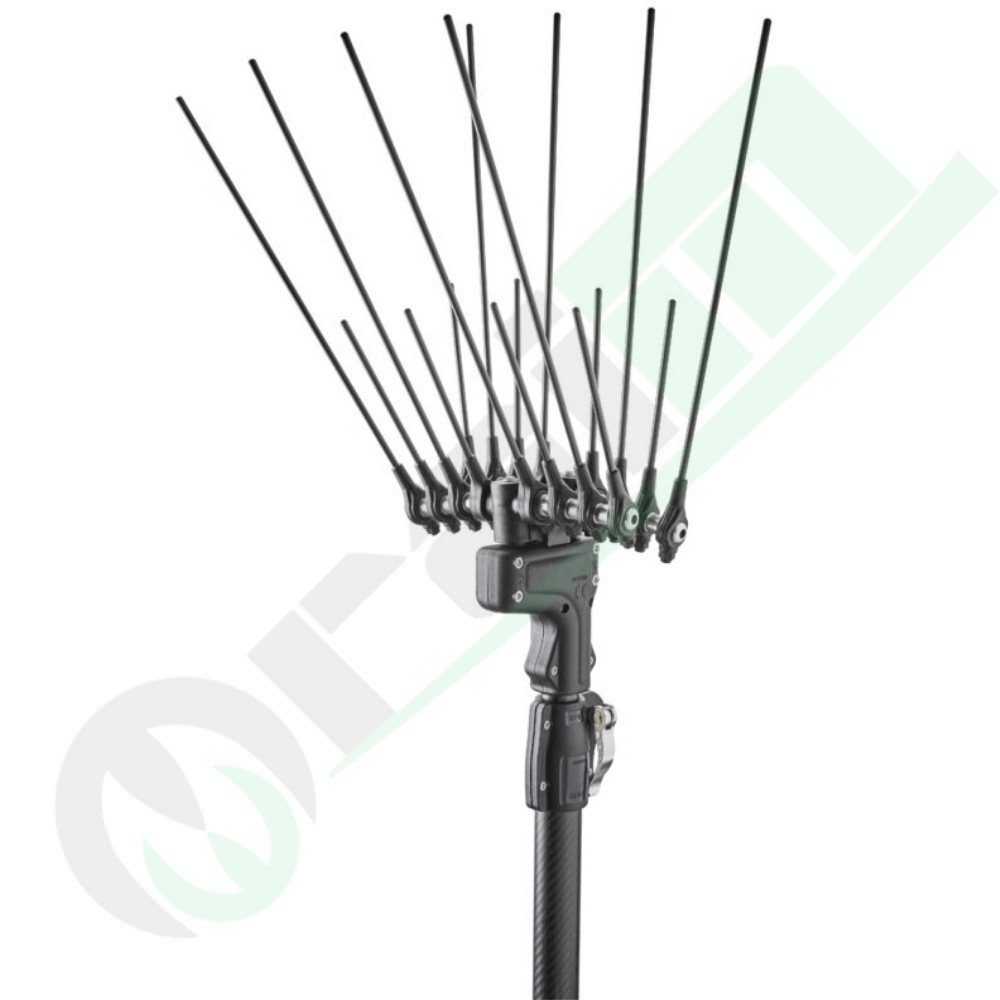

OlivGreen 700 Plus Carbon Long Telescopic 12V Electric Olive Harvester - Model: OG700 PLUS CARBON / Part Number: MEOG700CPLUS

The OlivGreen 700 Plus Carbon extended-reach battery-powered olive harvester (model OG700 PLUS CARBON, commercial part number MEOG700CPLUS)[cite: 4] is a top-tier professional olive harvesting tool combining an extended carbon fiber telescopic pole with an ultralight design for tall trees and large orchards. Engineered to operate efficiently across various olive cultivars and vegetation conditions (from pruned groves to dense, unmanaged trees), it features an opposed elliptical dual-comb movement to ensure high harvest yields without excessive defoliation. The machine achieves optimal balance thanks to the 12V electric motor with replaceable brushes and gear reducer integrated directly into the base handle. Equipped with a carbon fiber telescopic pole adjusting from 2.2 to 3.1 meters with a quick-locking system[cite: 4], a safety lockout ON/OFF switch, and a 13-meter extension power cable, it delivers high harvesting productivity of 85 – 105 kg/h[cite: 4] with an ultralight total weight of just 2.4 kg[cite: 4].

Key Features & Operational Advantages

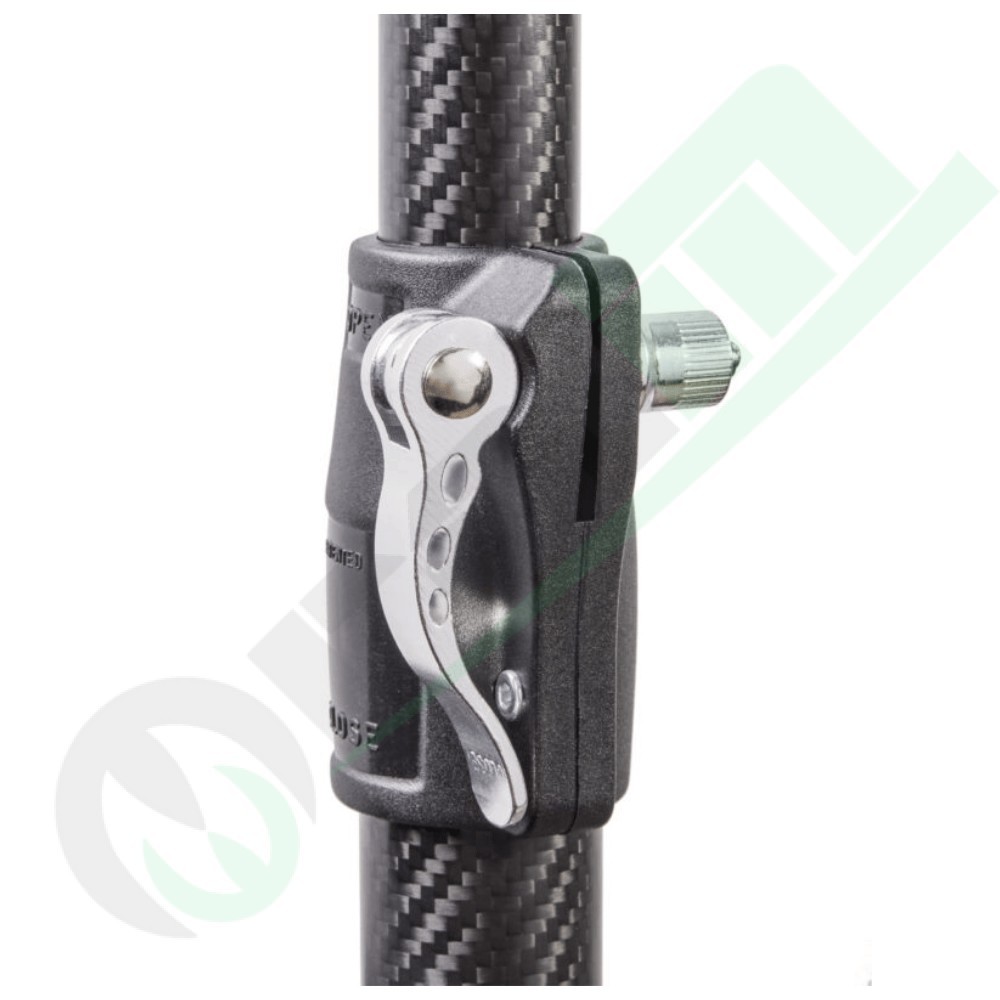

• Extended Carbon Fiber Telescopic Pole (2.2 > 3.1 m): High-modulus carbon fiber construction with rapid cam-lock adjustment[cite: 4], providing extended reach up to ~4.5 meters high from ground level with minimal pole deflection.
• Ultralight Weight for Extended Reach (Only 2.4 kg): Utilizing carbon fiber limits the total tool weight to just 2.4 kg[cite: 4], delivering unmatched handling ease and drastically reducing shoulder, arm, and back fatigue during overhead harvesting.

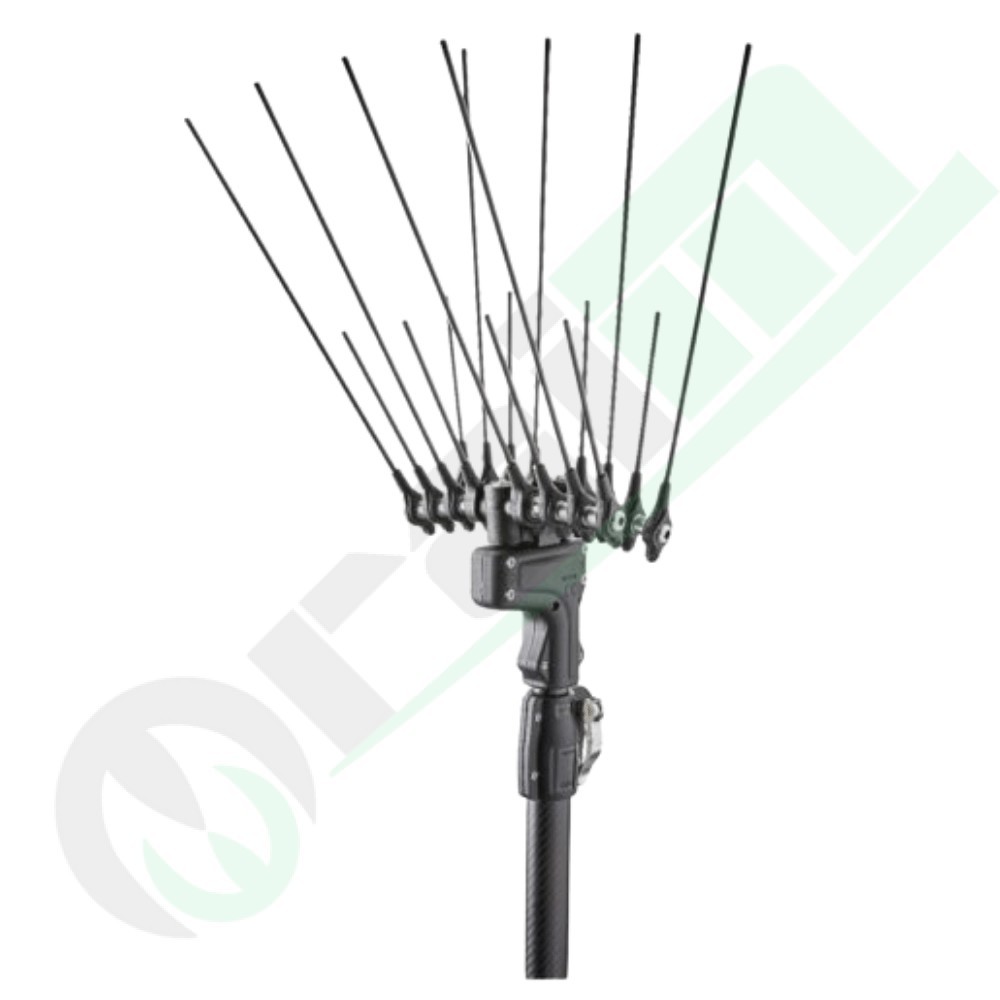

• Opposed Elliptical Dual-Comb Motion: 1,200 beats per minute (bpm) beating frequency[cite: 4] that penetrates dense foliage effortlessly, knocking down olives cleanly without snapping fruiting twigs or causing foliage loss.

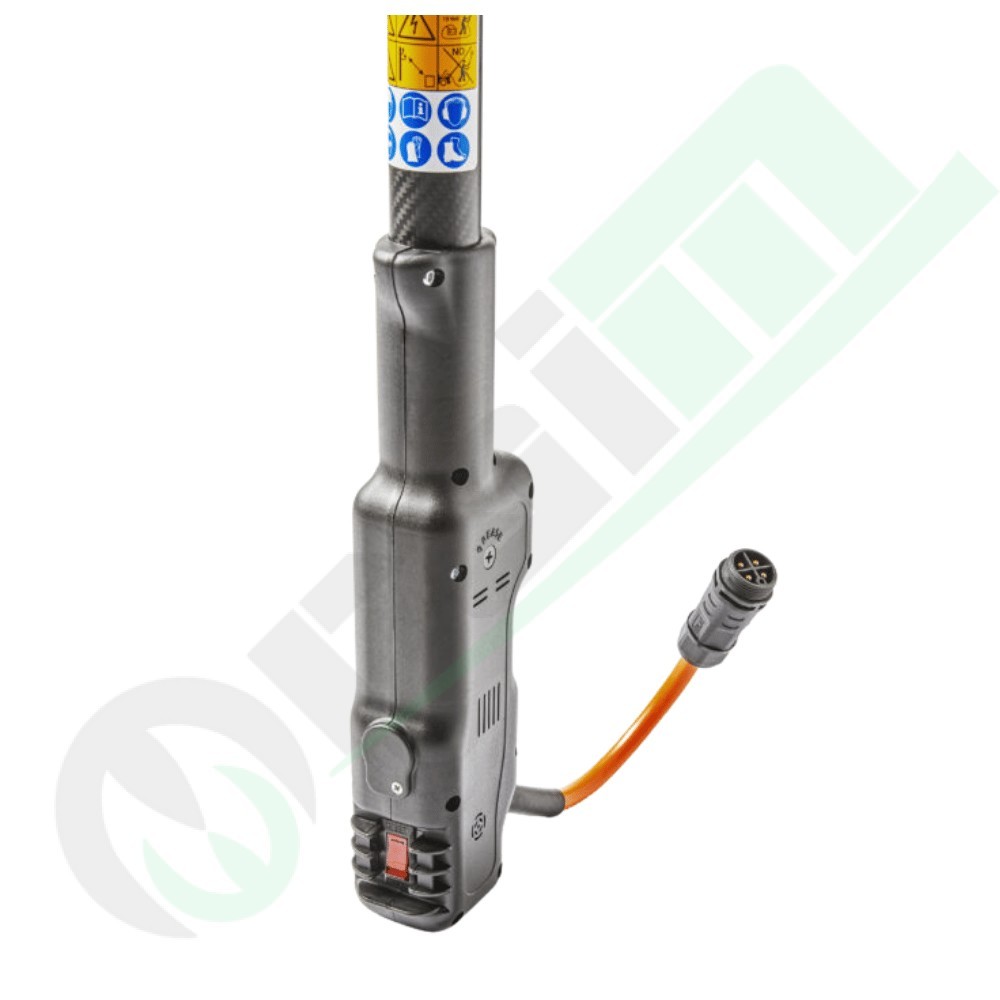

• Handle-Mounted Motor & Gearbox: The 12V motor with easily replaceable carbon brushes and reduction gearbox is housed at the base handle, keeping the harvesting head nimble and perfectly balanced.
• High Professional Hourly Output (85 – 105 kg/h): Strong harvesting throughput[cite: 4] designed for intensive commercial operations across all standard olive varieties.
• Low Power Consumption (6 – 8 Ah): Average current draw of only 6 to 8 Ah[cite: 4], allowing all-day field autonomy when powered by standard 12V lead-acid batteries (60–80 Ah)[cite: 4].
• 13-Meter Extension Cable: Heavy-duty insulated power cord complete with battery clamps, providing wide working mobility around large trees without moving the battery unit constantly.
• Safety Lockout ON/OFF Switch: Protected power switch designed to avoid accidental startup during transport or tool repositioning.

Technical Specifications

Orchard Suitability & Application Scope

Grove / Canopy Environment	Operational Advantages (Carbon Long 2.2 – 3.1 m Version)
Tall & Historic Olive Trees	The 3.1 m carbon telescopic reach[cite: 4] allows easy overhead harvesting directly from ground level, eliminating the dangers and delays of ladders
Intensive All-Day Commercial Harvesting	At just 2.4 kg[cite: 4], this long-reach model provides optimal ergonomics, preventing physical fatigue during continuous daily use
Dense or Unpruned Canopies	Opposed elliptical kinematics glide through thick branches to knock down inner olives while keeping defoliation to a minimum

Operating Guidelines & Workshop Maintenance Notes: Connect the clamps of the 13 m cable to a charged 12V battery (recommended 60–80 Ah)[cite: 4], observing strict polarity (red to positive, black to negative). Adjust the carbon telescopic pole to the desired working length (2.2 – 3.1 m)[cite: 4] and lock the cam lever securely before starting work. Operate the safety ON/OFF switch and guide the combs downward through the branches, avoiding excessive levering against heavy structural wood to protect the reduction gearbox. After finishing work, clean the harvesting head of leaves and debris using compressed air, inspect tine tightness, and periodically check the wear status of the replaceable motor carbon brushes.
