OlivGreen 500 Premium Telescopic 12V Brushless Electric Olive Harvester - Model: OG500S-PRM / Part Number: MEOG500SPRM

The OlivGreen 500 Premium professional electric battery-powered olive harvester (model OG500S-PRM, commercial part number MEOG500SPRM)[cite: 5] is a state-of-the-art harvesting machine equipped with an advanced 12V BRUSHLESS motor featuring a 3-speed electronic selector[cite: 5]. Engineered to achieve maximum harvesting yields across diverse olive cultivars and varying canopy densities (from pruned orchards to dense foliage), it utilizes an optimized lateral comb motion that ensures high detachment rates while minimizing defoliation and branch stress. The machine provides exceptional ergonomic balance by housing the brushless motor and gear reduction unit directly inside the control handle at the base of the pole. Fitted with an extendable telescopic pole adjusting from 1.7 to 2.2 meters with a quick-action locking system[cite: 5], a 3-speed ON/OFF switch with integrated safety lock, and a 13-meter extension power cable, it delivers high harvesting productivity of 100 – 120 kg/h[cite: 5] with a total weight of just 2.5 kg[cite: 5].

Key Features & Operational Advantages

• High-Efficiency 12V Brushless Motor: Brushless engineering eliminates carbon brush wear and periodic maintenance[cite: 5], significantly reducing operating temperatures and extending drivetrain life under heavy continuous duty.
• 3-Speed Electronic Control (1050 – 1200 bpm): Allows immediate adjustment of the comb beating frequency[cite: 5] to match specific olive cultivars, maturity levels, and fruit detachment resistance.

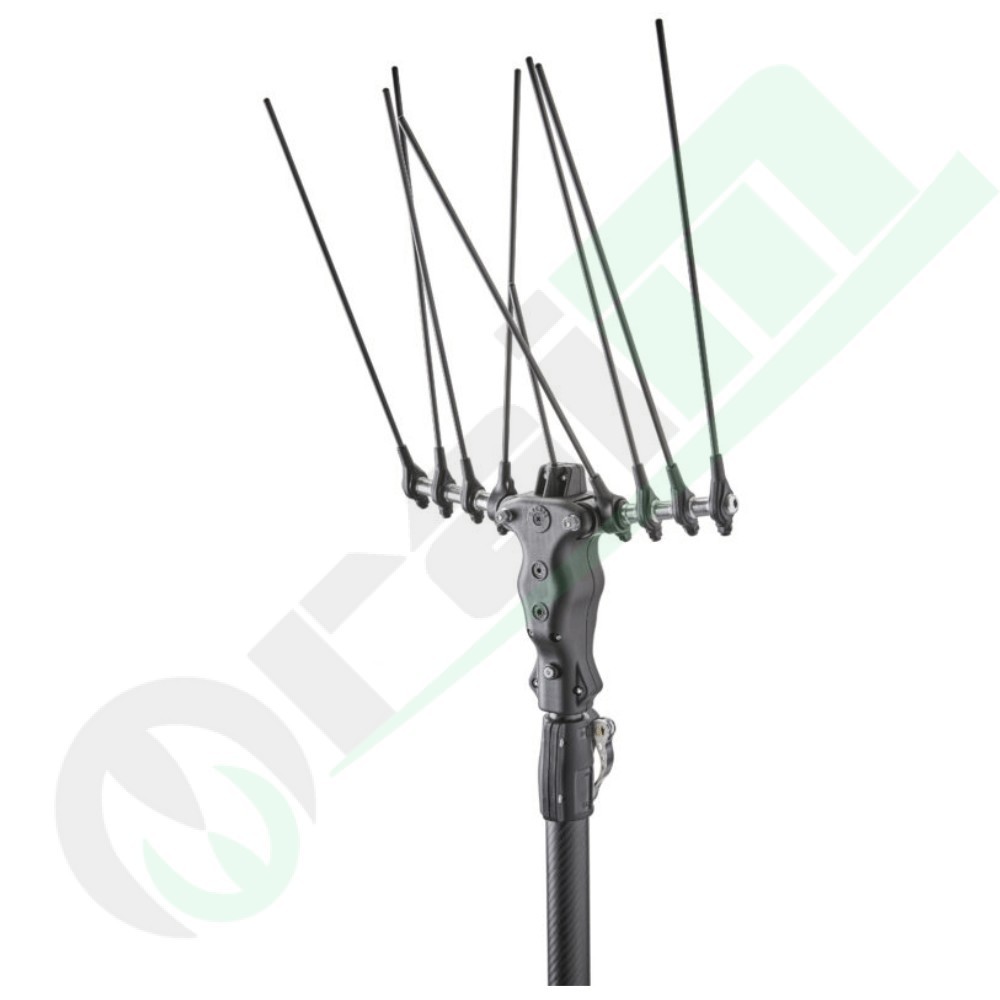

• Lateral Comb Kinematics: High-penetration side-to-side sweeping action that glides effortlessly into the canopy, detaching olives cleanly without stripping bark or snapping fruiting wood.

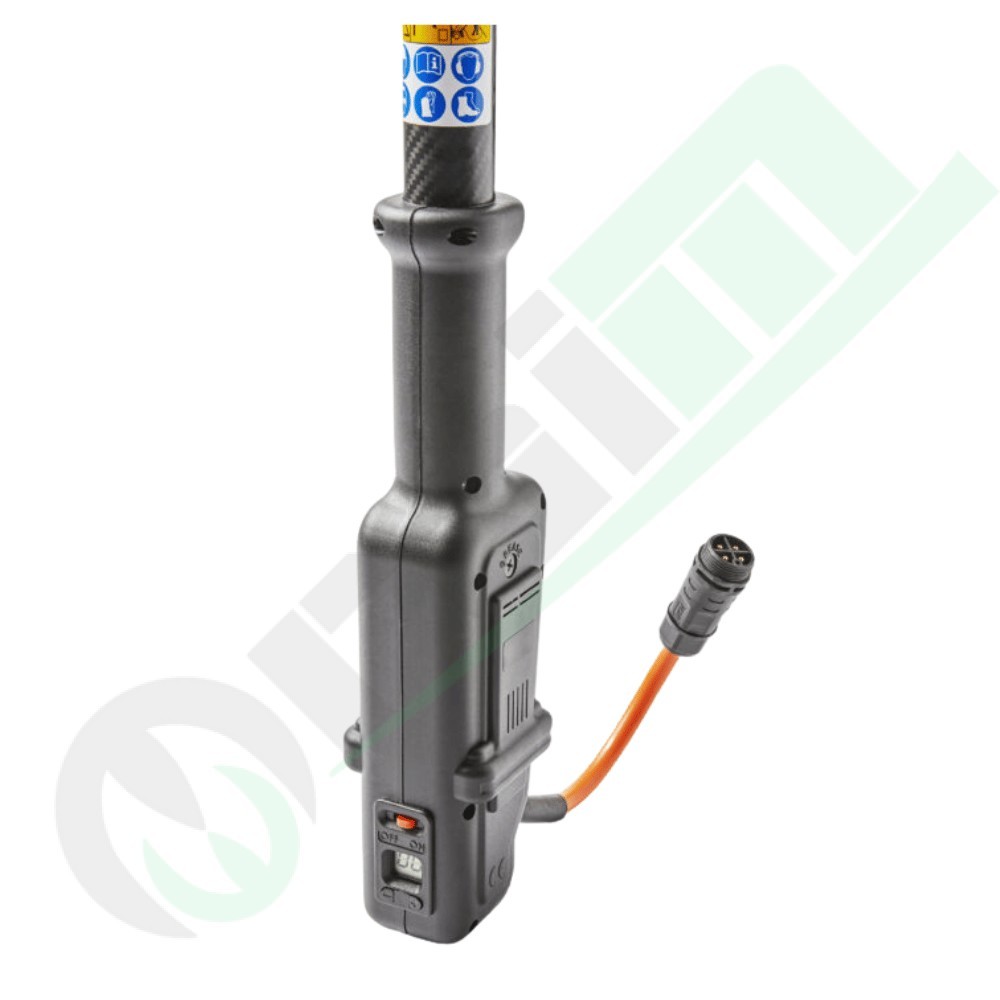

• Handle-Mounted Drivetrain: Housing the motor and gearbox in the base handle keeps the harvesting head lightweight and nimble, reducing arm, shoulder, and back fatigue during long work shifts.
• High Professional Hourly Output (100 – 120 kg/h): Outstanding harvesting rate[cite: 5] tailored to meet demanding commercial olive grove operations.

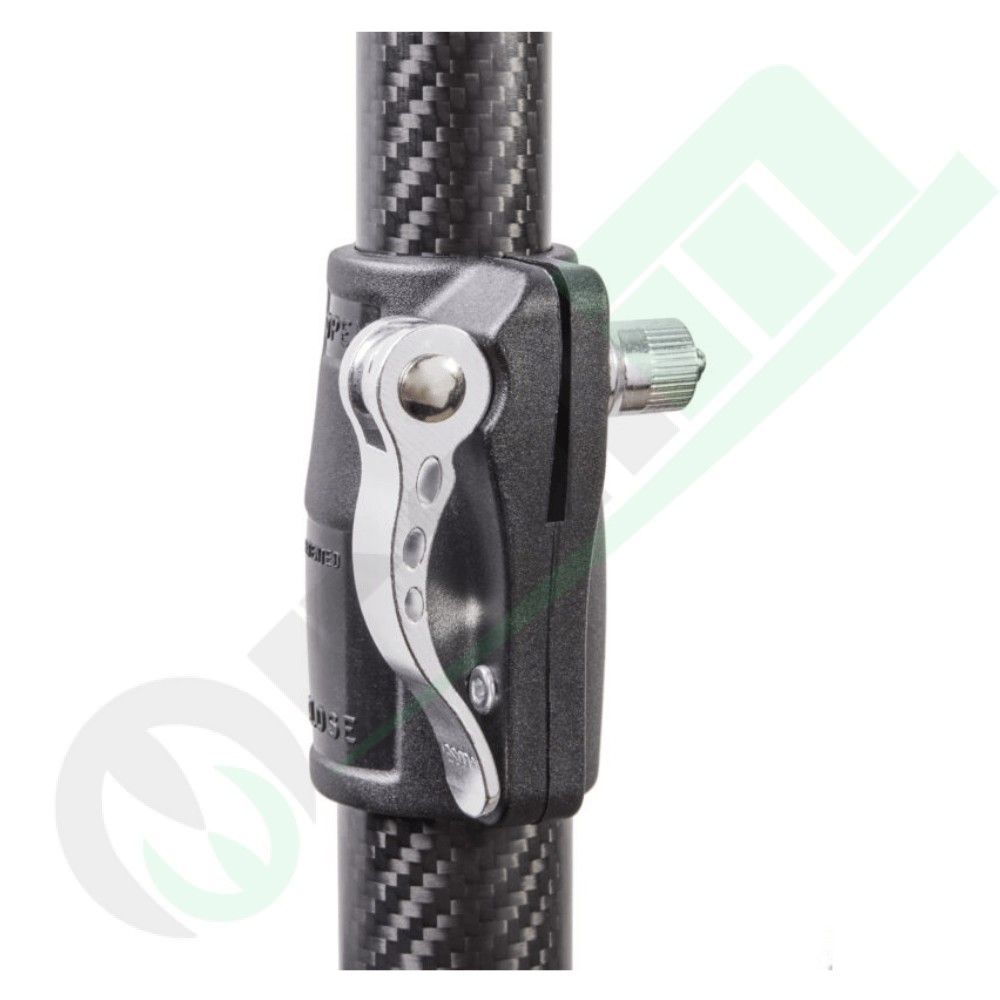

• Adjustable Telescopic Pole (1.7 > 2.2 m): Lightweight extendable shaft with an ergonomic quick-lock lever[cite: 5], providing comfortable ground-level reach into various canopy tiers.
• Low Power Consumption (6 – 8 Ah): Economical average current draw[cite: 5], readily powered by standard 12V lead-acid batteries rated at 60 Ah[cite: 5] for a full working day of field autonomy.
• Heavy-Duty 13-Meter Extension Cable: Includes a durable 13 m power cable with battery clamps and an ON/OFF switch equipped with a safety lockout mechanism.

Technical Specifications

Orchard Suitability & Application Scope

Grove / Canopy Environment	Operational Advantages (Brushless 100 – 120 kg/h)
Intensive & Pruned Groves	High speed up to 1200 bpm[cite: 5] enables swift passes through fruiting branches, maximizing hourly yield (100–120 kg/h)[cite: 5] without harming bark.
Dense & Traditional Canopies	The lateral comb oscillation penetrates thick foliage smoothly to dislodge internal fruit with minimal leaf shed.
Continuous Professional Use	Brushless technology prevents overheating and eliminates downtime for carbon brush servicing[cite: 5], delivering superior reliability throughout the harvesting season.

Operating Guidelines & Workshop Maintenance Notes: Before operation, attach the alligator clamps of the 13 m cable to a charged 12V battery (recommended 60 Ah)[cite: 5], observing correct polarity (red to positive, black to negative). Set the telescopic pole to the desired working length (1.7 – 2.2 m)[cite: 5] and clamp the quick-lock lever securely. Select the appropriate speed setting via the 3-position switch and guide the combs downward through the canopy, avoiding forcing the tines against thick structural limbs to protect the internal gearbox. At the end of the shift, blow away leaf dust and debris from the harvesting head with compressed air and inspect tine tightness. The brushless motor requires no brush replacement over its service life.
