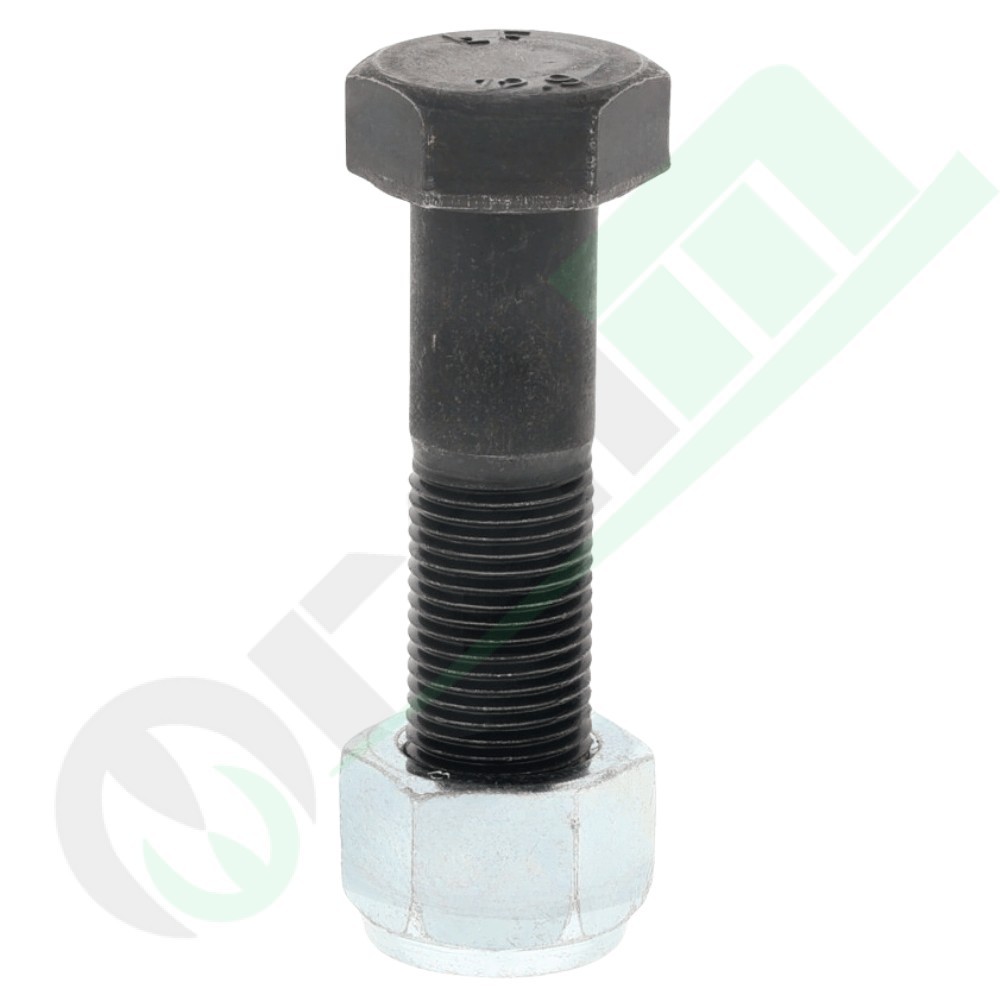

Bolt with Nut M12x1.25 L 45 mm Grade 12.9 for Agricultural Machinery - 18030-1245

star star star star star_border
Granit
18030-1245

Bolt and nut assembly part number 18030-1245 designed for secure fastening of blades and wear parts on agricultural machinery. Manufactured from high-tensile grade 12.9 steel featuring an M12 x 1.25 fine pitch thread, total length L 45 mm, and thread length G 22 mm to deliver maximum resistance against heavy vibration and shear stress.

Hurry! only 109 items left in stock.
€2.50
Tax included
COUPON
- € 0,05
Final price: € 2,45
Quantity

Alta disponibilità
Add to Compare
Add to Wishlist
Security Policy
Security Policy

Secure Shopping. Data protected with encryption. Your privacy is our priority!

Shipping Policy
Shipping Policy

Fast & Reliable Shipping. Orders handled with care. Various options available.

Secure Payments
Secure Payments

Secure Payments! Transactions protected by encryption. Your safety is guaranteed.

Extra High-Tensile Bolt with Nut M12x1.25 - Part Number: 18030-1245

The Bolt with Nut Fastening Set (part number 18030-1245, property class 12.9, metric fine pitch M12 × 1.25, total underhead length L = 45 mm, thread length G = 22 mm, unthreaded shoulder 23 mm) is an ultra-high tensile structural fastener assembly engineered for soil cultivation machinery. Designed to withstand severe shear loads, high tensile stresses, and persistent rotational vibrations across compact and medium rotary tillers, walk-behind cultivators, and light harrows.
Key Features & Benefits
  • Maximum Property Class 12.9: Quenched and tempered from high-performance alloy steel, delivering a nominal ultimate tensile strength of 1200 N/mm² and yield point of 1080 N/mm² to prevent bolt elongation, shear deformation, and brittle fractures during rocky soil impact.
  • Metric Fine Thread Pitch (M12 × 1.25): The fine 1.25 mm pitch provides superior self-locking resistance against persistent working vibrations compared to coarse threads, ensuring consistent preload retention and clamping force.
  • Precision 23 mm Unthreaded Shoulder: Keeps the critical shear boundary between the blade and mounting flange completely on the solid unthreaded body, eliminating notch stress concentrations on the thread and preventing mounting hole elongation.
  • Complete Kit with Matched High-Strength Nut: Includes a dedicated structural nut suited for property class 12.9 torque specifications, ensuring durable and play-free clamping on flanges with Ø 12.5 – 13 mm holes.
Technical Specifications
Product Code 18030-1245
Component Type Partially threaded hex head bolt with matched nut set
Property Class / Grade 12.9 (Quenched and tempered alloy steel)
Thread Size and Pitch M12 × 1.25 (Metric fine pitch)

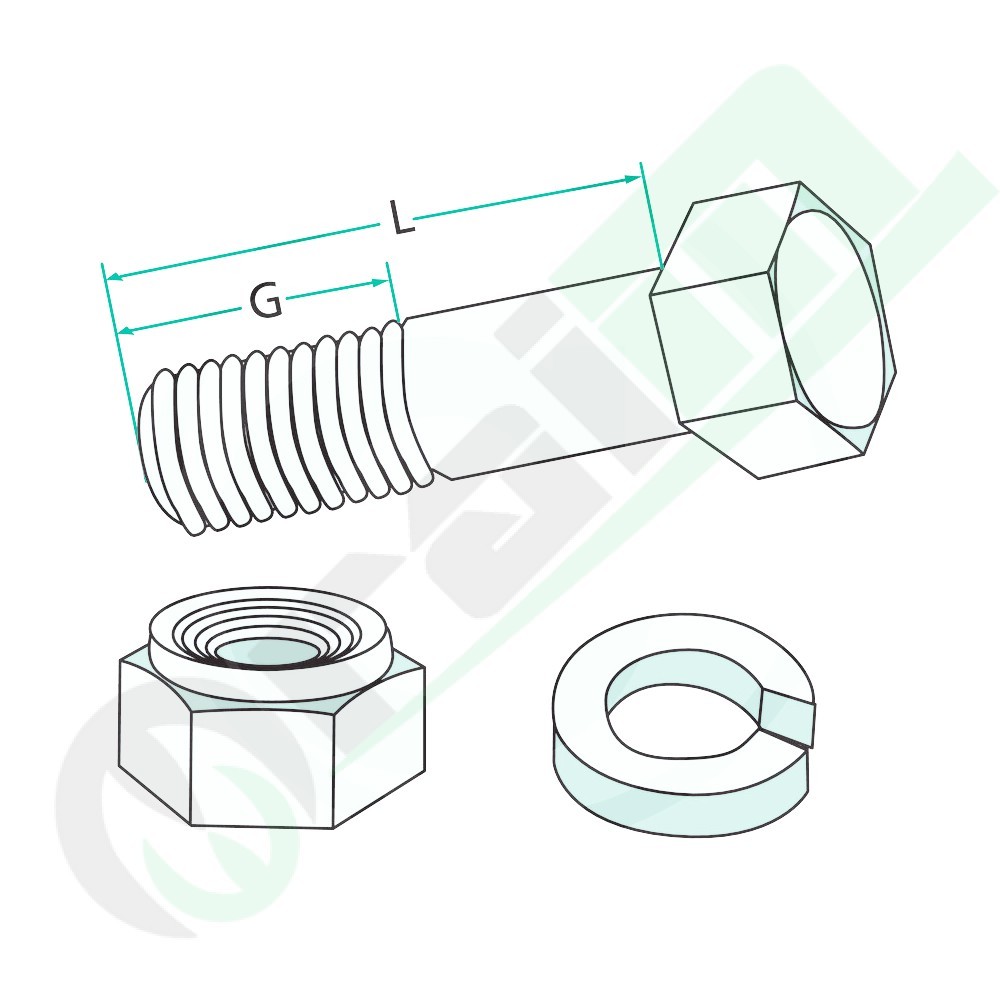

Total Underhead Length (L) 45 mm
Threaded Length (G) 22 mm
Unthreaded Shank Length 23 mm
Typical Application Scopes
Machinery Category Fastening Purpose Fitment Notes
Medium & Light Rotary Tillers Mounting blades and tines onto rotor flanges Suited for Ø 12.5 - 13 mm holes; clamp thickness up to 20-22 mm
Walk-Behind Tillers & Cultivators Fastening tines to rotor holders and hubs Withstands high vibrational stresses at elevated RPMs
Light Cultivators & Harrows Securing shares, points, and soil engaging elements High shear resistance against continuous bending loads
Installation Technical Note: As a property class 12.9 structural fastener with M12x1.25 fine pitch, tighten using a calibrated torque wrench (recommended dry torque: approximately 130 – 145 Nm, unless otherwise indicated by the implement OEM). Check hardware torque after the initial hour of field operation.
