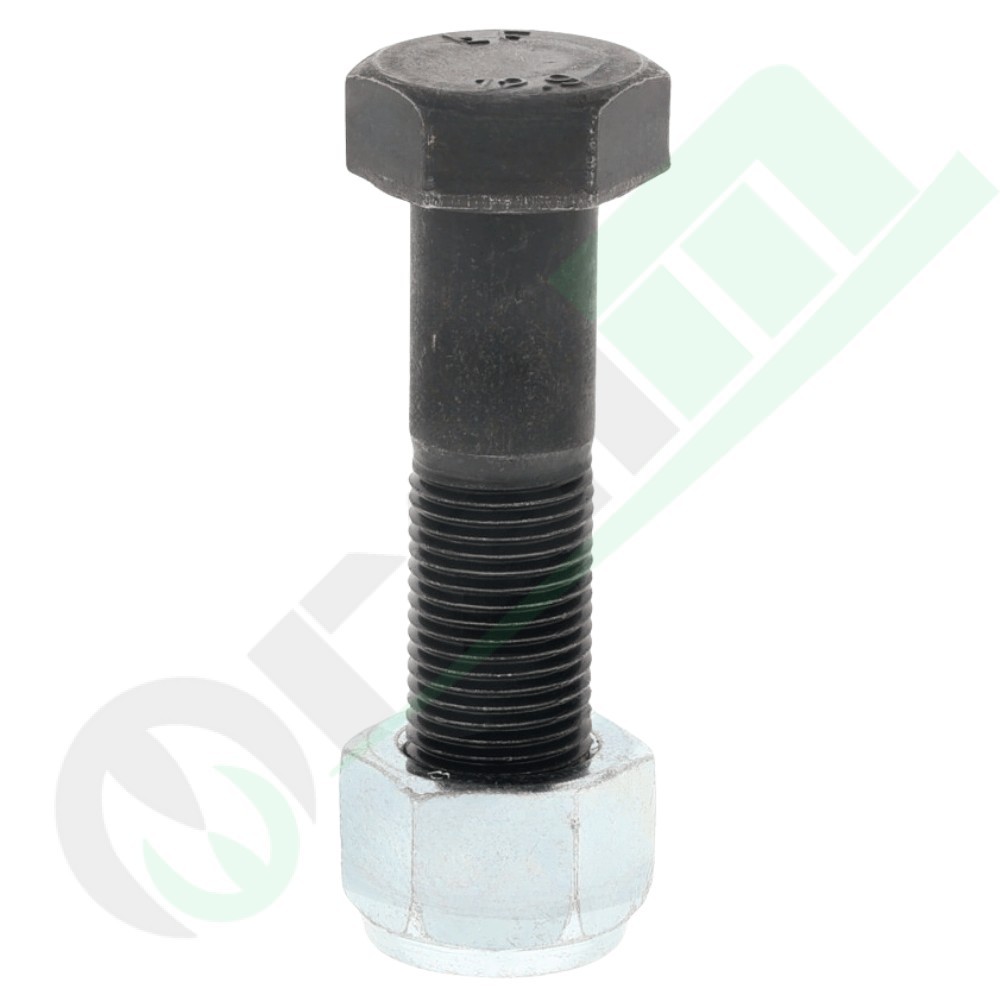

Blade Bolt M16 L 45 mm Grade 12.9 for Agricultural Machinery - 18030-1645

star star star star star_border
Granit
18030-1645

Blade bolt part number 18030-1645 designed for soil-working tools (usage: 1 per blade, 2 per share). Made of high-tensile grade 12.9 steel featuring a 16 mm diameter, M16 thread, total length L 45 mm, and thread length G 22 mm to ensure extreme shear resistance and durability under severe working conditions.

Hurry! only 49 items left in stock.
€2.90
Tax included
COUPON
- € 0,06
Final price: € 2,84
Quantity

Alta disponibilità
Add to Compare
Add to Wishlist
Security Policy
Security Policy

Secure Shopping. Data protected with encryption. Your privacy is our priority!

Shipping Policy
Shipping Policy

Fast & Reliable Shipping. Orders handled with care. Various options available.

Secure Payments
Secure Payments

Secure Payments! Transactions protected by encryption. Your safety is guaranteed.

Extra High-Tensile Blade Bolt M16 - Part Number: 18030-1645

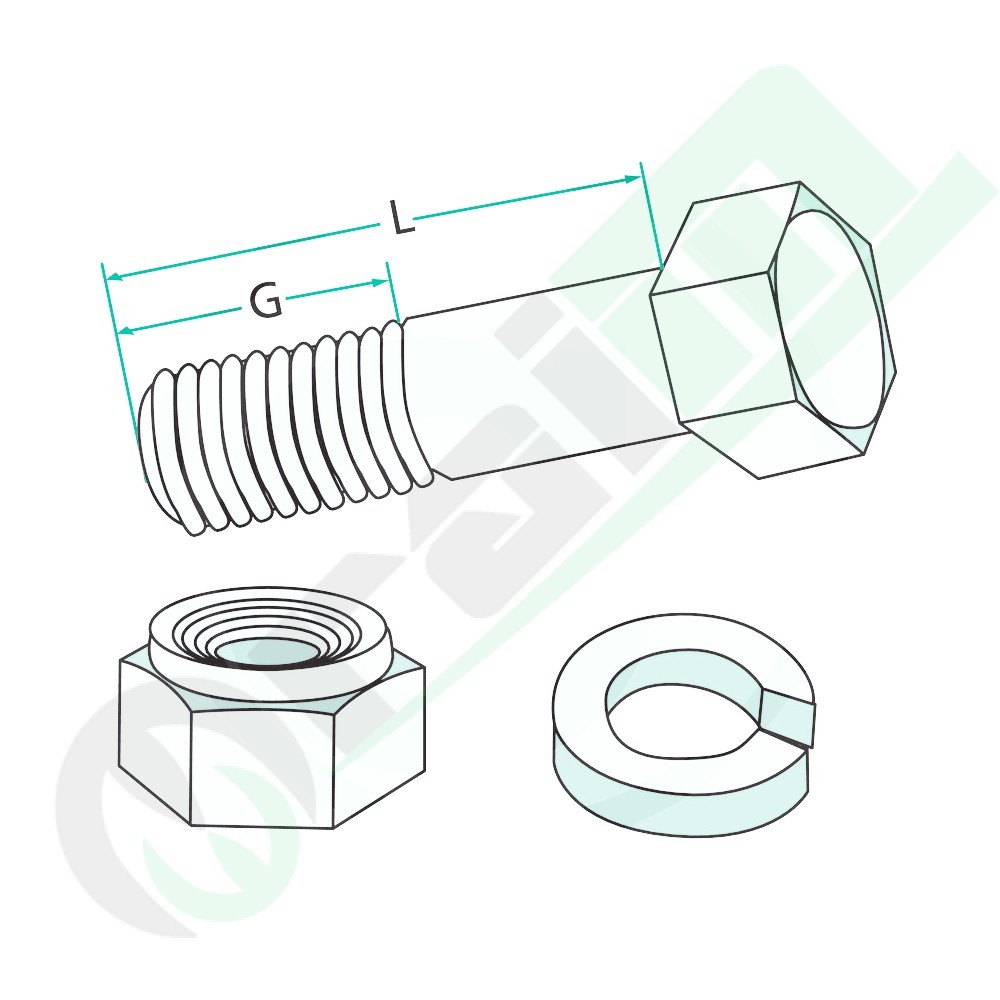

The Blade Bolt (part number 18030-1645, property class 12.9, metric thread M16, shank diameter Ø D = 16 mm, total underhead length L = 45 mm, threaded length G = 22 mm, unthreaded shoulder 23 mm) is an ultra-high tensile structural fastener designed for severe shear loads, high tensile force, and shock resistance. Engineered specifically for securing power harrow tines, rotary tiller blades (1 bolt per blade), and plowshares or cultivator points (2 bolts per share).
Key Features & Benefits
  • Maximum Strength Class 12.9: Quenched and tempered from premium alloy steel, delivering a nominal ultimate tensile strength of 1200 N/mm² and yield point of 1080 N/mm² to prevent bolt elongation, permanent bending, and brittle fracture under stony impact.
  • Precision 23 mm Unthreaded Shoulder (Ø 16 mm): Ensures the primary shear boundary between the tool body and holder flange rests completely on the solid unthreaded shank, eliminating notch stress concentrations on the thread and preventing mounting hole elongation.
  • Calibrated M16 Thread Section (G = 22 mm): The partial thread length provides solid thread engagement and stable clamp preload retention against continuous soil impact and rotor vibration.
  • Dual Application Versatility: Suitable for both single-bolt mounting systems (1 bolt per rotary tiller blade) and dual-bolt ground-engaging configurations (2 bolts per plowshare/point).
Technical Specifications
Product Code 18030-1645
Component Type Blade bolt / Partially threaded hex head structural fastener
Property Class / Grade 12.9 (Quenched and tempered alloy steel)
Nominal Thread Size M16
Shank Diameter (Ø D) 16 mm
Total Underhead Length (L) 45 mm
Threaded Length (G) 22 mm
Unthreaded Shoulder Length 23 mm
Implements Consumption 1 bolt per blade / 2 bolts per share
Typical Application Scopes
Machinery Category Fastening Purpose Fitment Notes
Power Harrows & Cultivators Securing tines, blades, and wear plates High bending strength and radial shear resistance
Plows & Subsoilers Fastening shares, points, and wings Standard dual-bolt setup (2 bolts per share)
Rotary Tillers Mounting blades to single-bolt rotor flanges Fits Ø 16.5 - 17 mm holes; clamp thickness up to 20 mm
Installation Technical Note: Being a property class 12.9 structural fastener, pair with matched class 12 high-strength nuts (or high-grade prevailing torque lock nuts) and torque with a calibrated wrench. Ensure the unthreaded shoulder bridges the entire shear interface between tool and holder, and check fastener tightness after the initial hour of field operation.
