Arag Valve and Sensor Main Connection Harness (5 Sections) - Code 467125.100

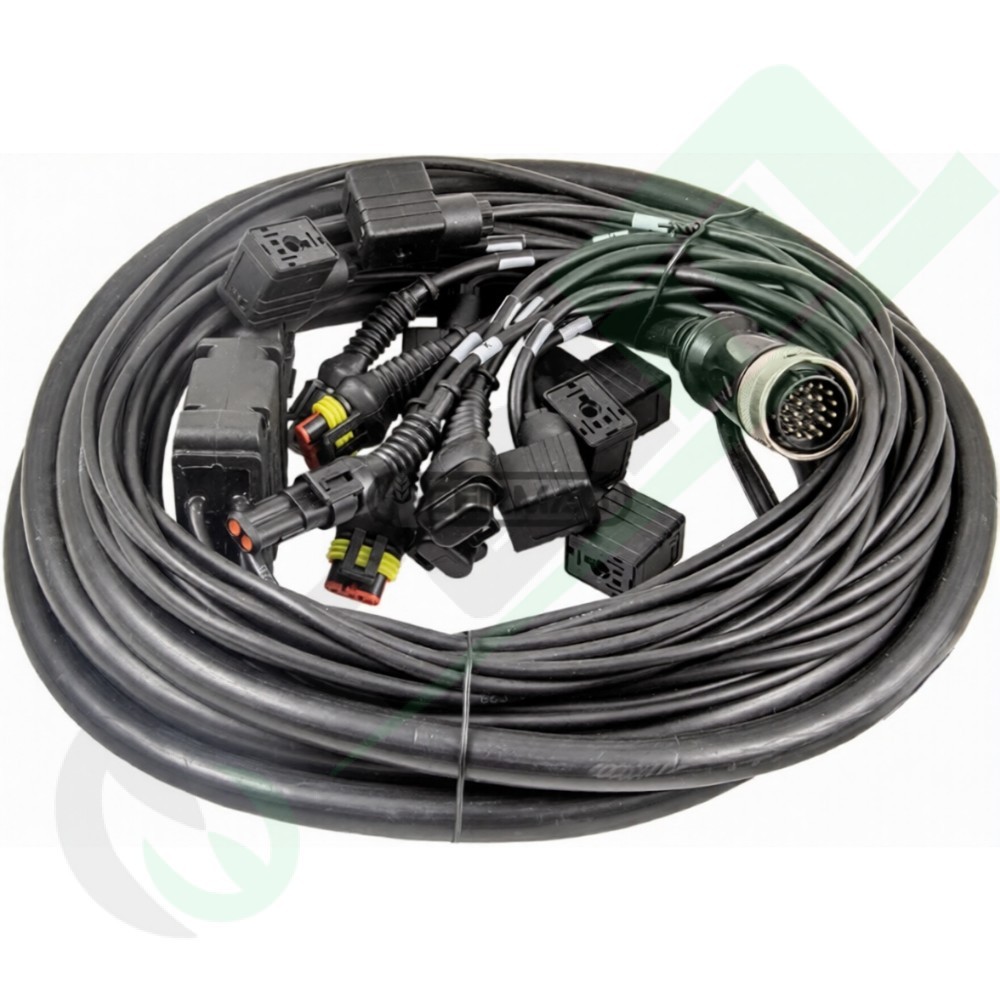

The professional-grade Arag valve and sensor connection harness (Product Code: 467125.100) is a heavy-duty primary electrical loom engineered to bridge Bravo and Delta onboard rate controllers with the section actuators and monitoring devices installed on the boom layout or spraying implement. Tailored specifically for complex systems managing 5 distribution sections, this harness unifies electrical valve actuation inputs and high-frequency sensor telemetry data into a single protected line, ensuring maximum fluid-dynamic responsiveness and precision in field applications.
Design Details and Hardware Architecture
This primary wiring loom is structurally engineered to withstand the punishing environmental parameters typical of seasonal intensive spraying schedules. The internal copper conductors feature high-grade dielectric insulation and are encased within a reinforced thermoplastic polyurethane (TPU) outer jacket. This configuration yields exceptional protection against structural friction, heavy abrasion, intense UV exposure, and continuous contact with aggressive chemical concentrates and solvent agents. The split design branches out smoothly at the terminal section to interface with 5 section control valves (either motorized or solenoid-driven) while integrating sealed connection plugs tailored for line monitoring instruments, including pulse flowmeters, pressure transducers, and speed sensors. Every connection node and terminal socket is injection-molded to comply with IP67 waterproof standards, safely blocking moisture, dust, and liquid ingress away from the electrical contacts. With a robust 6-meter linear extension, the harness establishes clear, strain-free routing from the cabin user interface to the wet-system manifold array mounted on large-scale towed or mounted spraying implements.
Technical Specifications
| Component Classification |
Primary interface wiring loom for section valves and line tracking sensors |
| Managed Distribution Sections |
5-section independent spray control |
| Harness Length Specification |
6 meters (19.6 ft) |
| Ingress Protection Rating |
Molded connectors with IP67 dust and liquid waterproofing seal |
| Peripheral Hardware Compatibility |
863/873 series motorized valves, solenoid valve blocks, digital flowmeters, pressure sensors, and Arag tachometric sensors |
| Master Console Integration |
Arag Bravo controller family (Bravo 180S, Bravo 350, Bravo 400S) and Delta data logging monitors |
| Product Reference Code |
467125.100 |
Fleet Integration & Operational Advantages
| Technical Metric |
Operational Benefit & Fleet Implementation |
| Unified Signal Routing |
Combines toggle signals for 5 separate valves and flow telemetry into a single shielded channel, minimizing cable clutter along the vehicle frame. |
| 6-Meter Heavy Extension |
Provides the optimal length for large-scale towed implements or complex multi-row systems, eliminating intermediate connection joints prone to corrosion. |
| Reinforced IP67 Seals |
Secures uninterrupted signal transmission and prevents false contact faults, even during intensive high-pressure pressure-washing and prolonged chemical exposure. |
