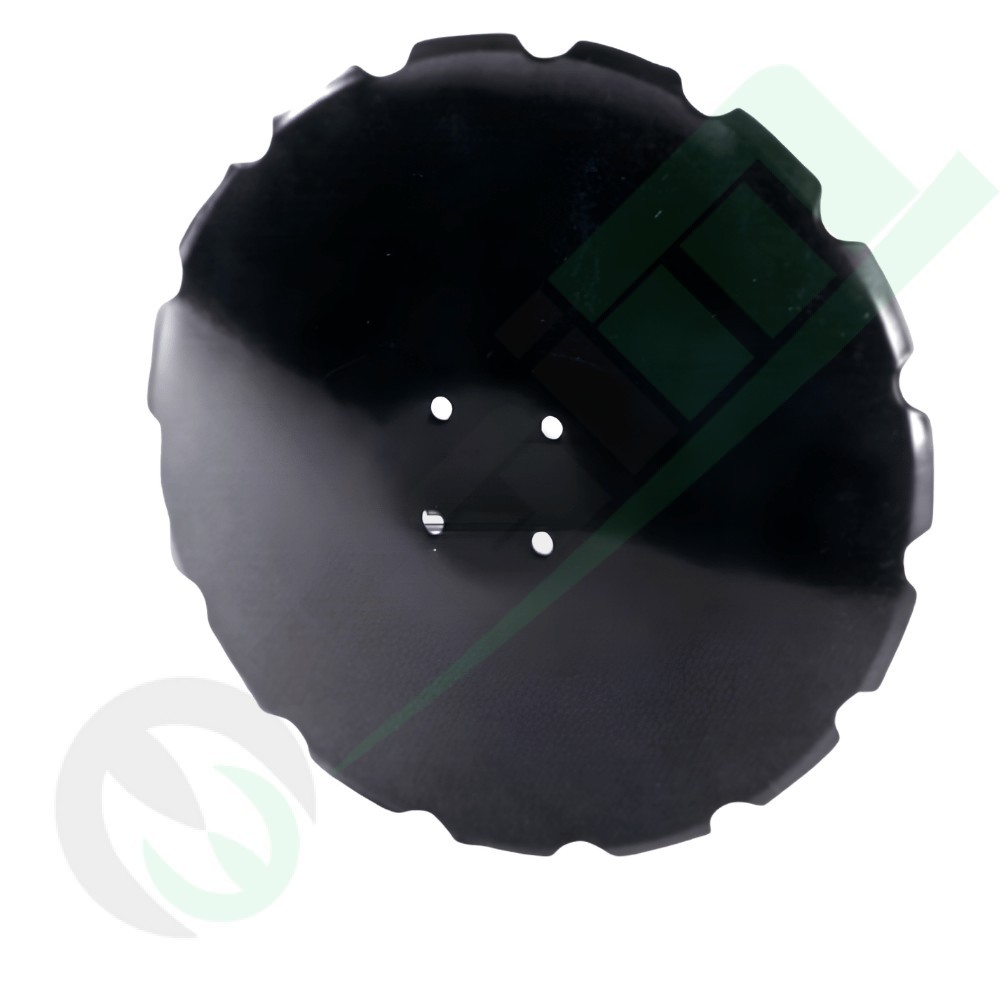

Notched disc harrow blade 55905 diameter 510 mm 4-hole 13 mm

iPhotos are indicative: the product may differ in some details. Refer to the specifications.

Notched disc harrow blade 55905 diameter 510 mm 4-hole 13 mm

Notched disc harrow blade part number 55905 engineered for disc harrows and soil cultivation machinery. Manufactured from 30 MnB 5 high-strength boron steel, it features a 510 mm outer diameter, 4 mm thickness, 130 mm center bore, and a 4-hole pattern (13 mm holes). The notched profile ensures excellent soil penetration and superior residue crushing performance.

30 MnB5 boron steel
Aggressive notched profile
Enlarged 510 mm diameter

€47.50VAT incl.

Coupon -€0.95 -2% sul carrello

Sconto extra riservato ai clienti registrati

Accedi per sbloccare il codice

Prezzo finale con coupon: €46.55

Shipping always charged for this item Not eligible for free shipping: even above €30.00 you pay its shipping. The rest of your order still ships free.

Not sure it fits?Message us with your tractor model

Secure paymentsEasy returnsFree shipping over €30 + VAT

Description

Notched disc blade diameter 510 mm bolt pattern 4x13 mm - Part number 55905

Heavy-duty notched (scalloped) replacement disc blade for compact disc harrows and independent disc cultivators, commercial part number 55905. Engineered for aggressive ground penetration and superior chopping of dense crop residue, stalks, and cover crops. The notched perimeter design increases ground grip and maintains continuous blade rotation even in hard-packed, crusted, or heavy clay soils. Manufactured from high-tensile 30 MnB5 heat-treated boron steel, it delivers outstanding resistance to abrasive soil wear along with structural flexibility to withstand sudden stone impacts. Features an enlarged overall diameter of 510 mm, a 4.0 mm plate thickness, a 130 mm center pilot bore, and a 4-hole mounting pattern (13 mm bolt holes) for direct installation onto independent bearing hubs.

Key features

30 MnB5 boron steelHeat-treated structural alloy steel offering superior surface hardness, extended wear life, and high shock resistance.

Aggressive notched profileScalloped outer edge designed to deliver a positive scissor-cutting action on crop residue and maintain rotation in tough ground.

Enlarged 510 mm diameterSized for deeper working capabilities and increased organic matter incorporation.

130 mm center pilot holeLarge circular center bore engineered for accurate, coaxial seating onto the bearing hub pilot shoulder.

4-hole flange mounting (4x13 mm)Standardized bolt pattern providing rigid clamping and even load distribution across the hub interface.

Specifications

Commercial part number	55905
Product type	Notched / scalloped disc blade
Material	Boron steel 30 MnB5
Outer diameter	510 mm
Thickness	4.0 mm
Center pilot bore	130 mm
Flange bolt pattern	4 holes Ø 13 mm

Fitting tipsPrior to mounting the disc blade, thoroughly clean the contact face of the bearing hub, removing scale, rust, and soil buildup. Place the disc onto the hub flange ensuring the 130 mm center hole fits smoothly over the hub pilot shoulder to guarantee accurate rotational concentricity. Insert the four mounting bolts through the 13 mm holes and torque them evenly in a diagonal cross-pattern to the equipment manufacturer's specified rating. Spin the disc assembly manually to confirm smooth, unhindered rotation, and re-torque all hardware after the initial 5 to 10 hours of fieldwork.
