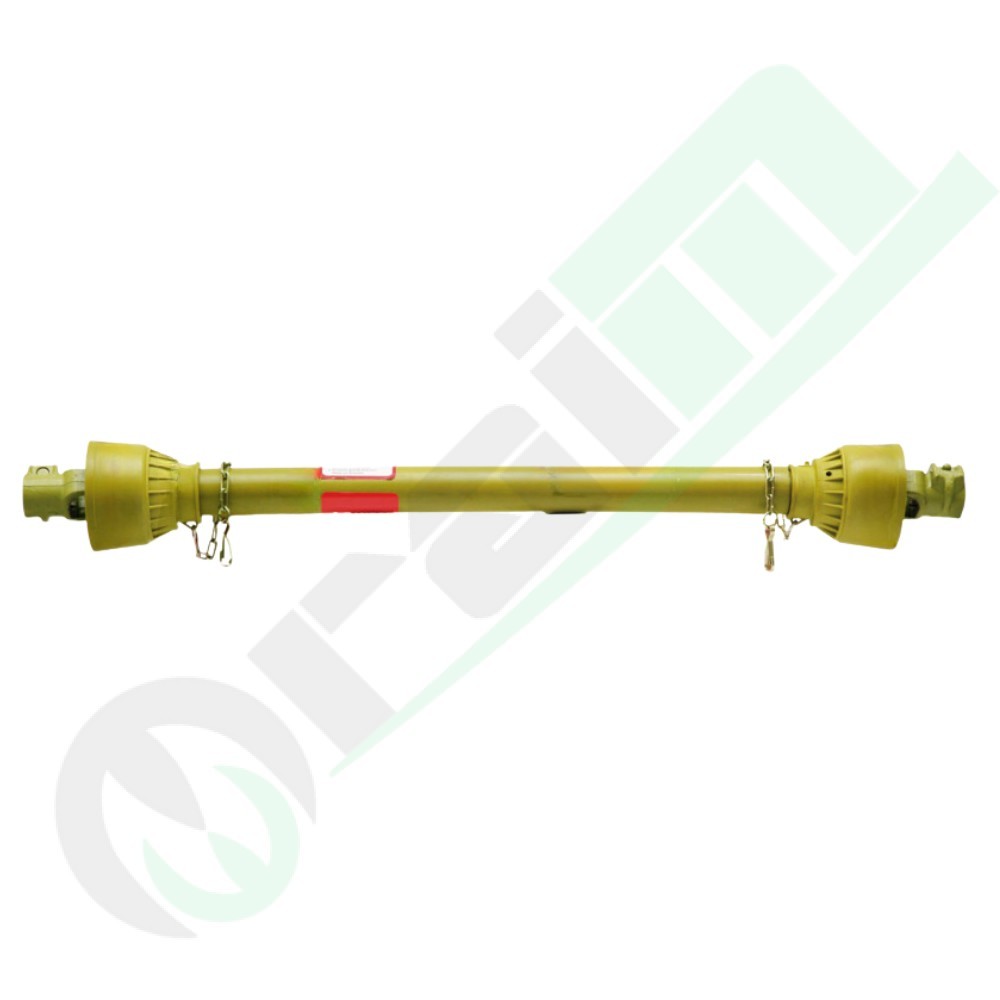

BLUELINE 377086021912 PTO Shaft Series F21 860mm

377086021912 BLUELINE PTO Drive Shaft Series F21 Lz 860mm for Tractors up to 16HP

Blueline
377086021912

BLUELINE F21 Series PTO Drive Shaft - L 860mm (Code 377086021912)

Hurry! only 4 items left in stock.
€99.00
Tax included
Quantity

Ready for delivery
Add to Compare
Add to Wishlist
  Security Policy

Secure Shopping. Data protected with encryption. Your privacy is our priority!

  Shipping Policy

Fast & Reliable Shipping. Orders handled with care. Various options available.

  Secure Payments

Secure Payments! Transactions protected by encryption. Your safety is guaranteed.

The BLUELINE F21 Series drive shaft (860 mm) is a reliable transmission component designed for low-power agricultural applications. Featuring the classic Lemon Profile, this model provides consistent performance for light-duty implements such as sprayers, small fertilizer spreaders, or hay rakes. With a nominal torque of 210 Nm, it ensures safe and efficient operation for standard utility tasks.

Technical Specifications

Part Number: 377086021912

Series: F21 (Standard Version)

Total Length (Lz): 860 mm

Profile A (Tractor Side): 1 3/8" 6 Splines

Profile B (Implement Side): 1 3/8" 6 Splines

Cross Kit Dim. (Profile A/B): 22 x 54.8 mm

Locking System: Push-button / Push-button (G1/G2 Coupling)

Tube Profile: Lemon Profile

Performance Data

Power at 540 rpm: Up to 16 HP (12 kW)

Power at 1000 rpm: Up to 24 HP (18 kW)

Nominal Torque (540 rpm): 210 Nm

Nominal Torque (1000 rpm): 170 Nm

Operating instructions are included. For lemon profile shafts, ensure that the telescopic tubes are adequately lubricated to allow for smooth axial movement during implement operation.

: 377086021912
Hurry! only 4 items left in stock.

Fast and safe shipping: each order is carefully packaged to ensure that the product arrives intact and in perfect condition.

We work with reliable couriers to offer an efficient, traceable and punctual service.

You will receive a link to follow the shipment at every stage, until delivery.

We use quality protective materials and, where possible, eco-friendly packaging.

Our priority is that your purchase arrives without surprises, ready to use.
