BLUELINE 37756021912 PTO Shaft Series F21 560mm

37756021912 BLUELINE PTO Drive Shaft Series F21 Lz 560mm for Tractors up to 16HP

Blueline
37756021912

BLUELINE F21 Series PTO Drive Shaft - L 560mm (Code 37756021912)

Hurry! only 3 items left in stock.
€85.00
Tax included
Quantity

Ready for delivery
Add to Compare
Add to Wishlist
  Security Policy

Secure Shopping. Data protected with encryption. Your privacy is our priority!

  Shipping Policy

Fast & Reliable Shipping. Orders handled with care. Various options available.

  Secure Payments

Secure Payments! Transactions protected by encryption. Your safety is guaranteed.

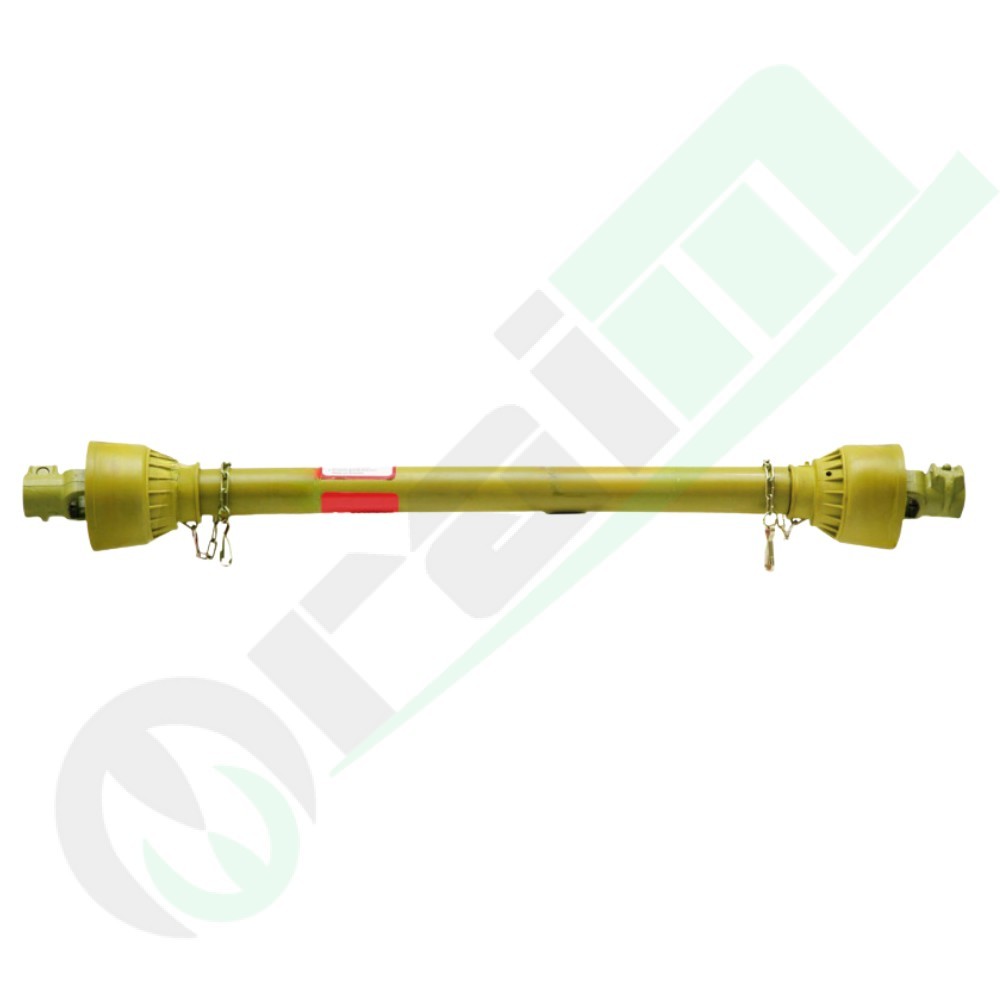

The BLUELINE F21 Series drive shaft (560 mm) is a reliable transmission component designed for low-to-medium power agricultural implements. Featuring the classic Lemon Profile, this model provides smooth power delivery for compact machinery such as sprayers, small fertilizer spreaders, or specialized equipment. With a nominal torque of 210 Nm, it combines ease of use with essential safety standards.

Technical Specifications

Part Number: 37756021912

Menke Code: 256933

Series: F21 (Standard Version)

Total Length (Lz): 560 mm

Profile A (Tractor Side): 1 3/8" 6 Splines

Profile B (Implement Side): 1 3/8" 6 Splines

Cross Kit Dim. (Profile A/B): 22 x 54.8 mm

Locking System: Push-button / Push-button (G1/G2 Coupling)

Tube Profile: Lemon Profile

Performance Data

Power at 540 rpm: Up to 16 HP (12 kW)

Power at 1000 rpm: Up to 24 HP (18 kW)

Nominal Torque (540 rpm): 210 Nm

Nominal Torque (1000 rpm): 170 Nm

Operating instructions are included. To ensure long service life, regular maintenance of the universal joints and cleaning/lubrication of the lemon profile telescopic tubes is recommended.
