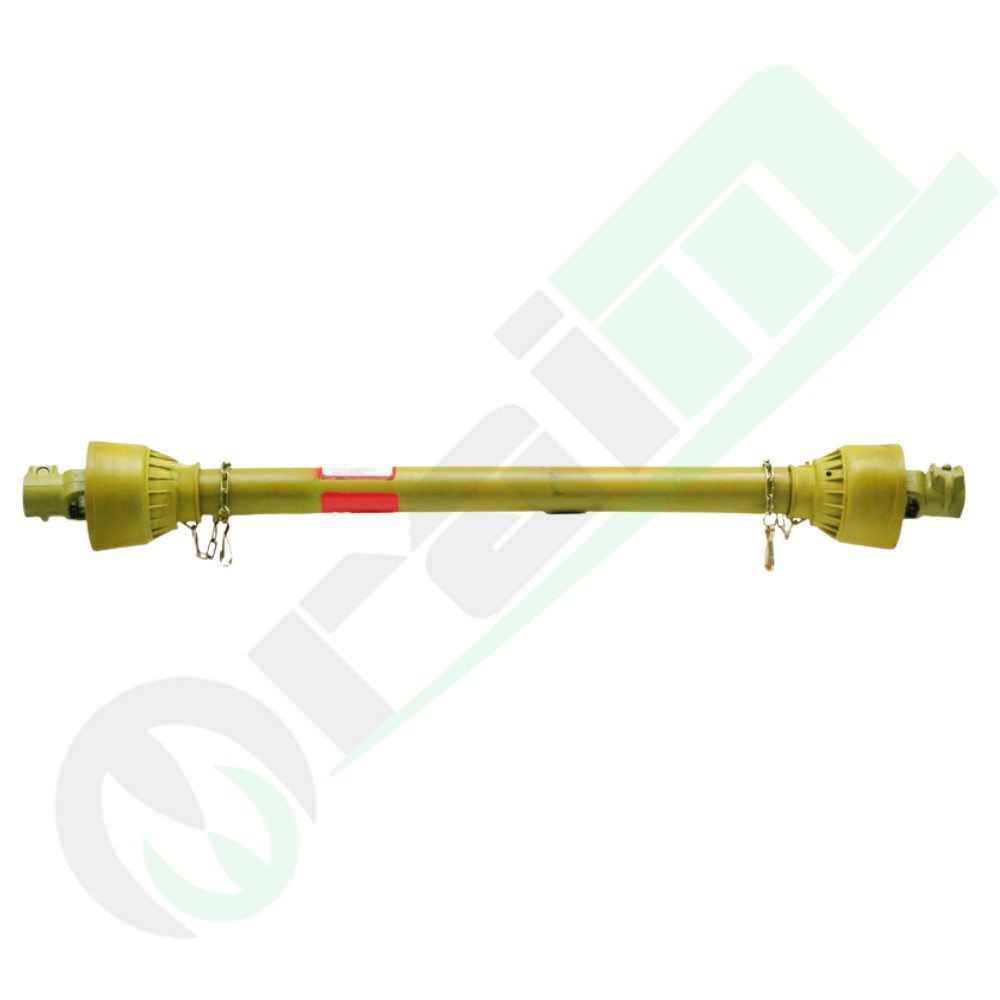

BLUELINE 377101021912 PTO Shaft Series F21 1010mm

377101021912 BLUELINE PTO Drive Shaft Series F21 Lz 1010mm for Tractors up to 16HP

Blueline
377101021912

BLUELINE F21 Series PTO Drive Shaft - L 1010mm (Code 377101021912)

Hurry! only 4 items left in stock.
€105.00
Tax included
Quantity

Ready for delivery
Add to Compare
Add to Wishlist
  Security Policy

Secure Shopping. Data protected with encryption. Your privacy is our priority!

  Shipping Policy

Fast & Reliable Shipping. Orders handled with care. Various options available.

  Secure Payments

Secure Payments! Transactions protected by encryption. Your safety is guaranteed.

The BLUELINE F21 Series drive shaft (1010 mm) is an essential component for agricultural implements with low-to-medium power requirements. Utilizing the Lemon Profile, this 1-meter model provides reliable torque delivery and smooth telescopic action. With a nominal torque of 210 Nm, it is the ideal choice for fertilizer spreaders, light sprayers, or hay equipment requiring a longer reach.

Technical Specifications

Part Number: 377101021912

Series: F21 (Standard Version)

Total Length (Lz): 1010 mm

Profile A (Tractor Side): 1 3/8" 6 Splines

Profile B (Implement Side): 1 3/8" 6 Splines

Cross Kit Dim. (Profile A/B): 22 x 54.8 mm

Locking System: Push-button / Push-button (G1/G2 Coupling)

Tube Profile: Lemon Profile

Performance Data

Power at 540 rpm: Up to 16 HP (12 kW)

Power at 1000 rpm: Up to 24 HP (18 kW)

Nominal Torque (540 rpm): 210 Nm

Nominal Torque (1000 rpm): 170 Nm

Operating instructions are included. For 1000mm shafts, ensure proper overlap between the inner and outer tubes to maintain stability and prevent mechanical failure under load.
