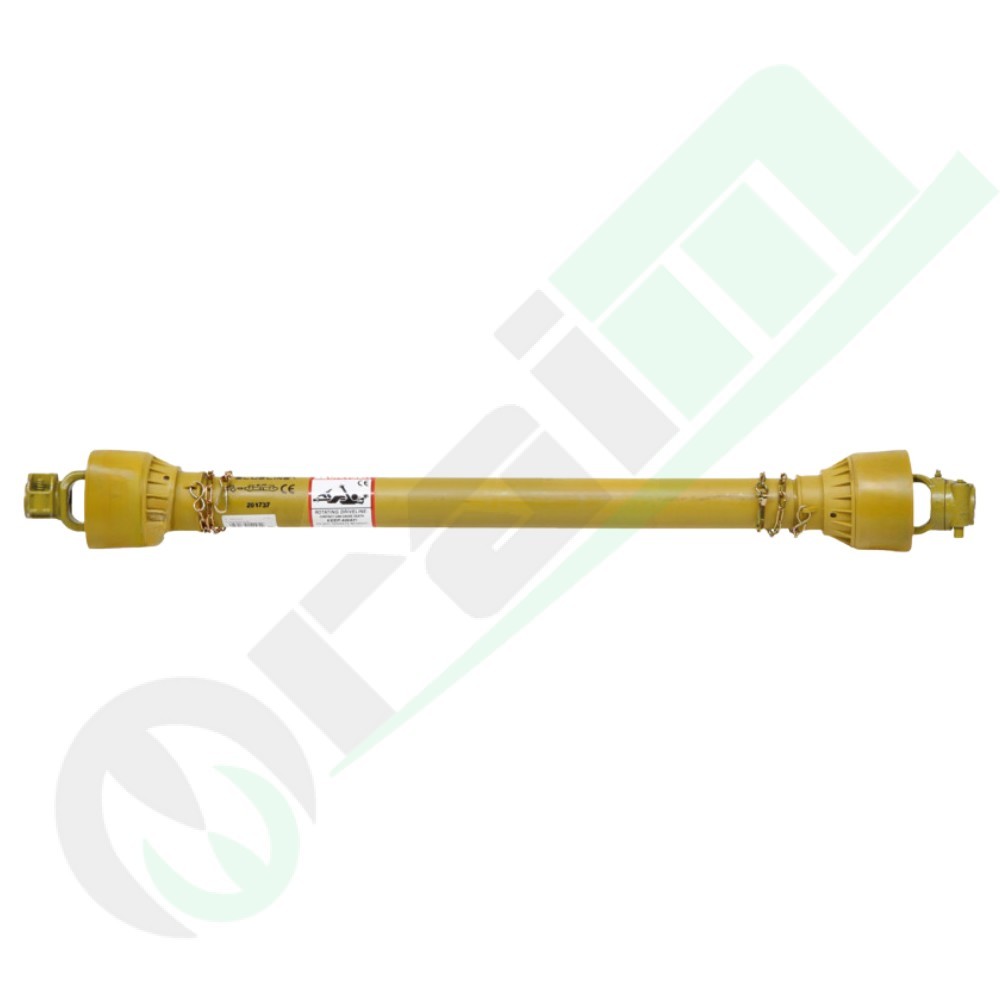

BLUELINE 3771010B465K1700 PTO Shaft B4 Shear Bolt

3771010B465K1700 BLUELINE PTO Shaft Series B4 Lz 1010mm with Shear Bolt Clutch 1700Nm

Name: 3771010B465K1700 BLUELINE PTO Shaft Series B4 Lz 1010mm with Shear Bolt Clutch 1700Nm
SKU: 3771010B465K1700
Price: 165 EUR
Availability: InStock

Brand : Blueline

Reference : 3771010B465K1700

BLUELINE B4 PTO Shaft with Shear Bolt - L 1010mm (Code 3771010B465K1700)

Hurry! only 4 items left in stock.

€165.00

Tax included

Quantity

Ready for delivery

Add to Compare

Add to Wishlist

Security Policy

Secure Shopping. Data protected with encryption. Your privacy is our priority!

Shipping Policy

Fast & Reliable Shipping. Orders handled with care. Various options available.

Secure Payments

Secure Payments! Transactions protected by encryption. Your safety is guaranteed.

Guarantee safe checkout

The BLUELINE B4 Series drive shaft (1010 mm) is a reliable transmission solution featuring an integrated Shear Bolt Clutch. This safety mechanism is designed to break the bolt when torque exceeds 1700 Nm, preventing mechanical damage to the tractor's PTO and the implement's drivetrain caused by sudden blockages. Utilizing the Italian System (triangular profile) and 27 x 74.6 mm cross kits, it is perfectly suited for medium-duty machinery such as large fertilizer spreaders and trailed sprayers.

Technical Specifications

Part Number: 3771010B465K1700

Series: B4

Total Length (Lz): 1010 mm

Profile A (Tractor Side): 1 3/8" 6 Splines (Push-button)

Profile B (Implement Side): 1 3/8" 6 Splines (Locking bolt)

Cross Kit Dimension: 27 x 74.6 mm

Safety Type: Shear Bolt Clutch

Tube Profile: Italian System (Triangular)

Coupling: P6/P5

Safety Data

Release Torque: 1700 Nm

Replacement Bolt: Always use bolts of the same strength grade and size as the original to maintain the safety setting.

Operating instructions are included. For 1010 mm shafts, always verify proper telescopic overlap and ensure that safety chains are properly anchored to prevent the guard from spinning during operation.
