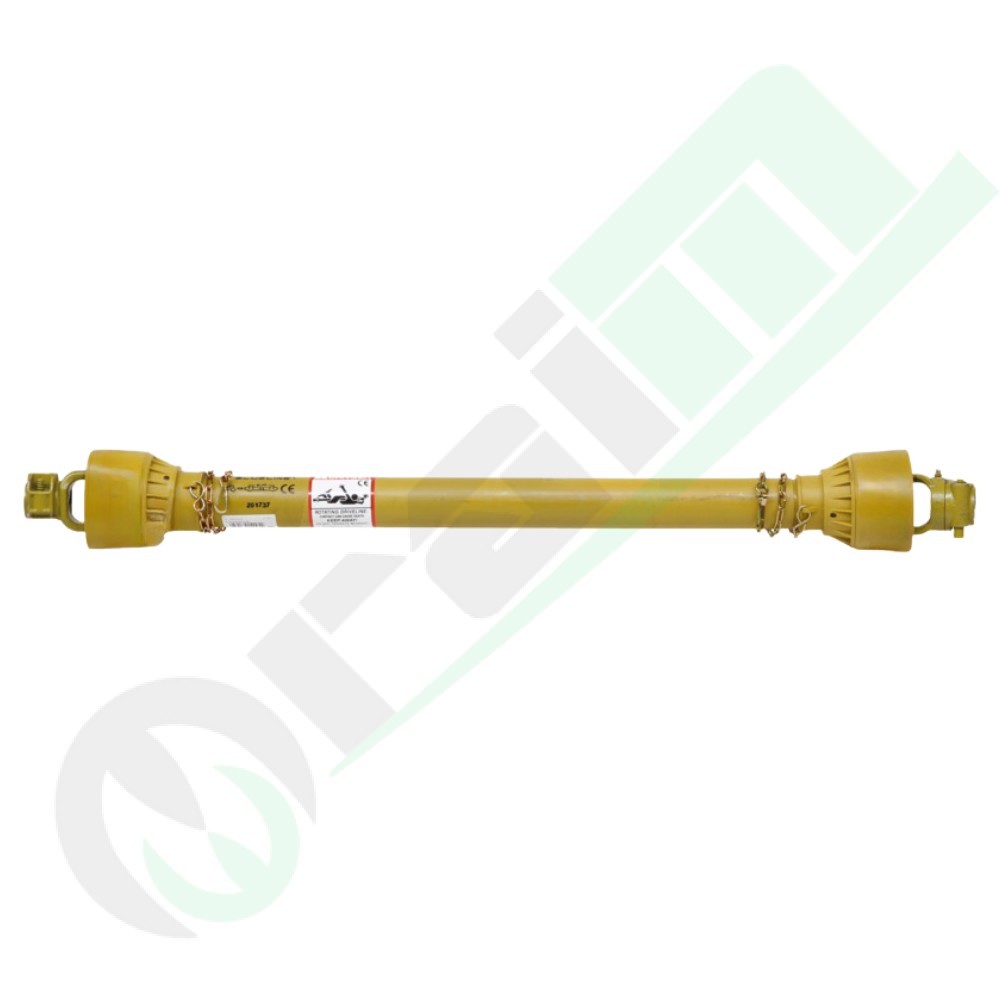

BLUELINE 3771010B679K2900 PTO Shaft B6 Shear Bolt 2900Nm

3771010B679K2900 BLUELINE PTO Shaft Series B6 Lz 1010mm 1 3/8" & 1 3/4" Z6

Name: 3771010B679K2900 BLUELINE PTO Shaft Series B6 Lz 1010mm 1 3/8" & 1 3/4" Z6
SKU: 3771010B679K2900
Price: 245 EUR
Availability: InStock

Brand : Blueline

Reference : 3771010B679K2900

BLUELINE PTO Drive Shaft B6 Series L 1010mm 1 3/4" Shear Bolt - 3771010B679K2900

Hurry! only 2 items left in stock.

€245.00

Tax included

Quantity

Last items in stock

Add to Compare

Add to Wishlist

Security Policy

Secure Shopping. Data protected with encryption. Your privacy is our priority!

Shipping Policy

Fast & Reliable Shipping. Orders handled with care. Various options available.

Secure Payments

Secure Payments! Transactions protected by encryption. Your safety is guaranteed.

Guarantee safe checkout

and a

Shear Bolt Clutch

calibrated to disconnect power at 2900 Nm. This configuration provides ultimate protection against catastrophic torque peaks. Equipped with massive

30.2 x 91.5 mm

universal joints and the

Italian System

(triangular profile), it is perfectly suited for forestry mulchers, heavy duty rotary harrows, and industrial wood chippers.

Technical Specifications

Part Number: 3771010B679K2900

Series: B6

Total Length (Lz): 1010 mm

Profile A (Tractor Side): 1 3/8" 6 Splines (Push-button)

Profile B (Implement Side): 1 3/4" 6 Splines (Locking bolt)

Cross Kit Dimension: 30.2 x 91.5 mm

Safety Type: Shear Bolt Clutch

Tube Profile: Italian System (Triangular)

Coupling: P7/P9

Safety Data

Release Torque: 2900 Nm

Replacement Bolt: Use only original replacement bolts of the specified grade to maintain the 2900 Nm safety threshold.

Operating instructions are included. For B6 shafts with 1 3/4" connections, ensure the locking bolt is fully tightened into the implement's shaft groove to prevent accidental detachment during high-torque industrial operations.
