BLUELINE 11316637 PTO Shaft B8 Disc Clutch

11316637 BLUELINE PTO Shaft Series B8 Lz 1210mm with Friction Disc Clutch 2300Nm

Name: 11316637 BLUELINE PTO Shaft Series B8 Lz 1210mm with Friction Disc Clutch 2300Nm
SKU: 11316637
Price: 340 EUR
Availability: InStock

Brand : Blueline

Reference : 11316637

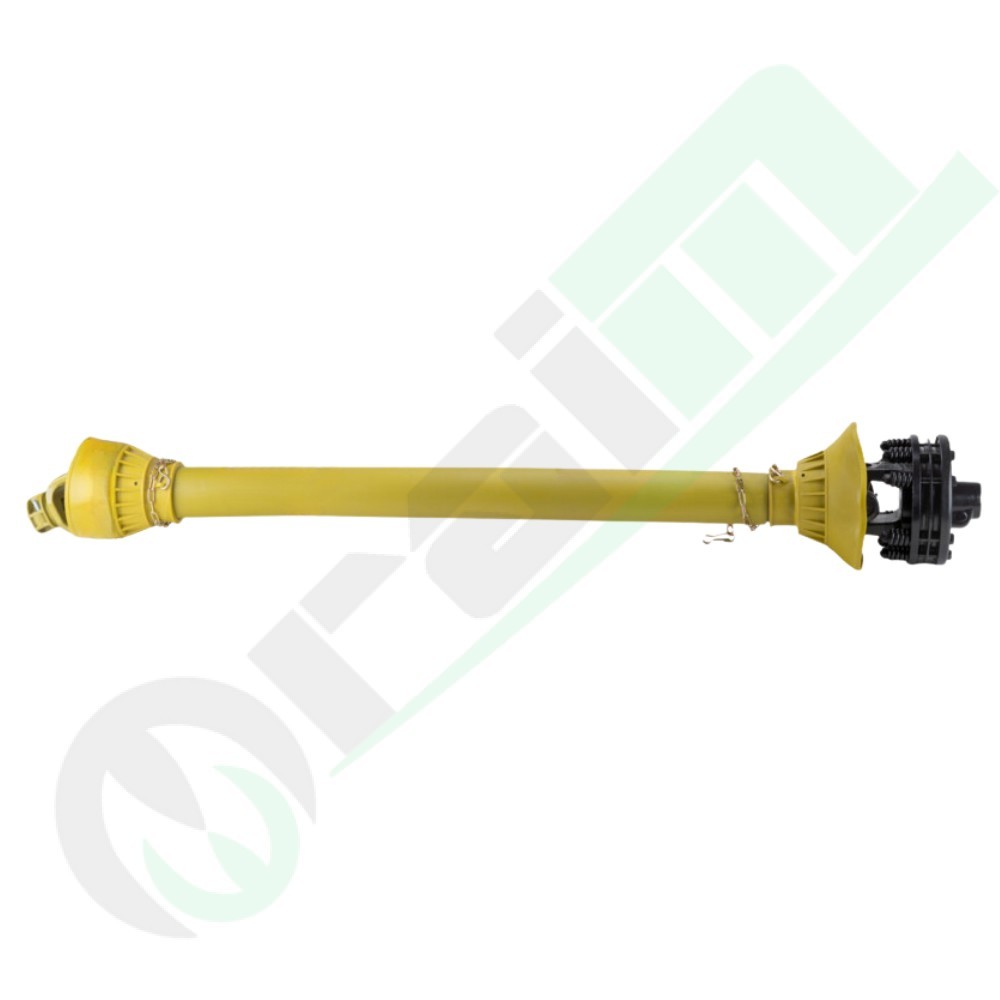

BLUELINE B8 PTO Drive Shaft with Friction Clutch - L 1210mm (Code 11316637)

Hurry! only 2 items left in stock.

€340.00

Tax included

Quantity

Last items in stock

Add to Compare

Add to Wishlist

Security Policy

Secure Shopping. Data protected with encryption. Your privacy is our priority!

Shipping Policy

Fast & Reliable Shipping. Orders handled with care. Various options available.

Secure Payments

Secure Payments! Transactions protected by encryption. Your safety is guaranteed.

Guarantee safe checkout

The BLUELINE B8 Series drive shaft (1210 mm) is an Ultra Heavy Duty transmission component designed for high-horsepower tractors and the most demanding implements. It features a professional Friction Disk Clutch rated at 2300 Nm, which protects the drivetrain by slipping during torque peaks while maintaining continuous power delivery. Built with massive 34.9 x 106 mm universal joints and reinforced triangular profile tubes (Italian System), it is the ultimate choice for forestry mulchers, heavy-duty rotary harrows, and industrial feed mixers.

Technical Specifications

Part Number: 11316637

Series: B8

Total Length (Lz): 1210 mm

Profile A (Tractor Side): 1 3/8" 6 Splines (Push-button)

Profile B (Implement Side): 1 3/8" 6 Splines (Locking bolt)

Cross Kit Dimension: 34.9 x 106 mm

Safety Type: Friction Disk Clutch

Tube Profile: Italian System (Triangular)

Coupling: P10/P11

Performance Data

Slipping Torque: 2300 Nm

Key Benefit: Maximum drivetrain protection with automatic torque recovery and no downtime.

Operating instructions are included. Given the extreme torque levels of the B8 series, it is essential to ensure safety chains are securely anchored and that universal joints are greased every 8 hours of intense operation.
