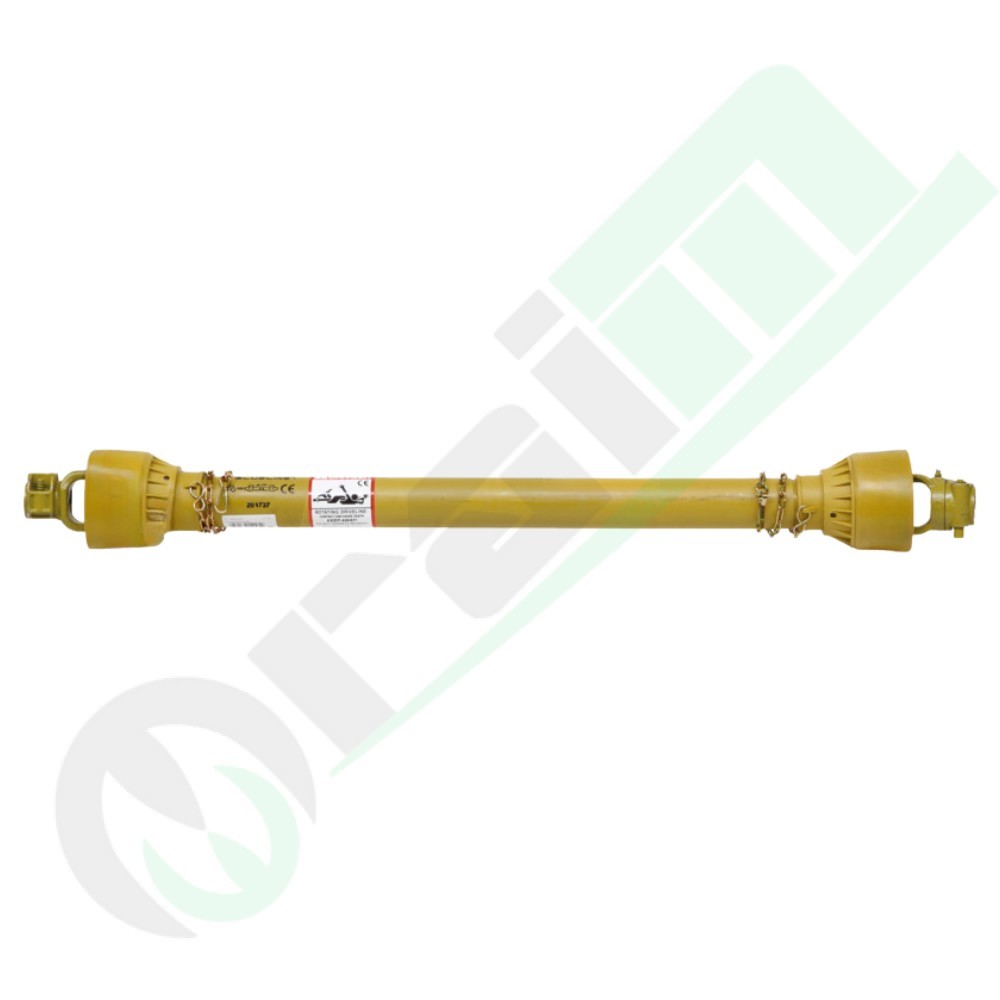

BLUELINE 3771010B679K2500 PTO Shaft B6 Shear Bolt

3771010B679K2500 BLUELINE PTO Shaft Series B6 Lz 1010mm with Shear Bolt Clutch 2500Nm

Reference : 3771010B679K2500

BLUELINE B6 PTO Shaft with Shear Bolt - L 1010mm (Code 3771010B679K2500)

Hurry! only 3 items left in stock.

€210.00

Tax included

Quantity

Ultimi 3 articoli

Add to Compare

Add to Wishlist

Security Policy

Secure Shopping. Data protected with encryption. Your privacy is our priority!

Shipping Policy

Fast & Reliable Shipping. Orders handled with care. Various options available.

Secure Payments

Secure Payments! Transactions protected by encryption. Your safety is guaranteed.

Guarantee safe checkout

The BLUELINE B6 Series drive shaft (1010 mm) is a professional-grade transmission solution engineered for high-power industrial agricultural implements. It features a robust Shear Bolt Clutch calibrated to disconnect power at 2500 Nm, providing essential protection against sudden mechanical blocks. Built with massive 30.2 x 91.5 mm universal joints and the Italian System (triangular profile), it is ideally suited for forestry shredders, large rotary tillers, and high-capacity feed mixers.

Technical Specifications

Part Number: 3771010B679K2500

Series: B6

Total Length (Lz): 1010 mm

Profile A (Tractor Side): 1 3/8" 6 Splines (Push-button)

Profile B (Implement Side): 1 3/8" 6 Splines (Locking bolt)

Cross Kit Dimension: 30.2 x 91.5 mm

Safety Type: Shear Bolt Clutch

Tube Profile: Italian System (Triangular)

Coupling: P7/P9

Safety Data

Release Torque: 2500 Nm

Replacement Bolt: Use only original replacement bolts of the correct grade to maintain the 2500 Nm safety threshold.

Operating instructions are included. For B6 series shafts, due to the high torque levels, regular lubrication of the 30.2 mm cross kits is mandatory to ensure durability and safe operation under heavy loads.
