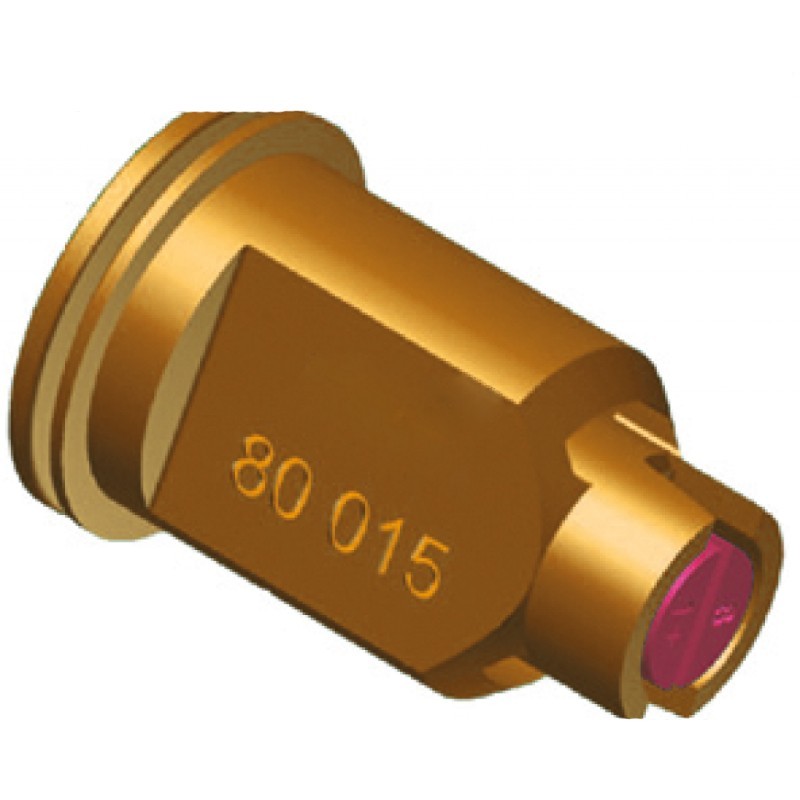

ISO Hollow Cone Anti-Drift Nozzle CVI Series 80° - 015
Product code
(to be specified for each variable)
Certification
✅ Compliant with ISO standards for agricultural applications
✅ Anti-drift design for optimal distribution and minimisation of product waste
Main features
✔ Anti-drift hollow cone nozzle, with 80° outlet angle
✔ Designed for treatments with systemic and contact products on atomisers
✔ Equipped with double injection hole to avoid clogging
✔ High resistance plastic material with alumina to ensure long life
✔ Available in various colours with different flow rates
Technical data
Material: Delrin + Ceramic
Outlet angle: 80°
Recommended pressure: between 10 and 14 bar
Minimum working pressure: 10 bar
Maximum working pressure: 25 bar
Flow rate:
27954 (Orange) Flow rate 0.73 ÷ 1.15 l/min
27955 (Green) Flow rate 1.10 ÷ 1.73 l/min
27956 (Yellow) Flow rate 1.46 ÷ 2.31 l/min
27957 (Purple) Flow rate 1.83 ÷ 2.89 l/min
27958 (Blue) Flow rate 2.19 ÷ 3.46 l/min
27959 (Red) Flow rate 2.92 ÷ 4.62 l/min
Safety and protection
? Nozzle designed to minimize drift, improving treatment effectiveness
? Durable construction for prolonged use and in harsh working environments
Technologies and materials
✔ Delrin + Ceramic body for chemical and mechanical resistance
✔ Injection of air for a fine and uniform nebulization
Sectors of use
? Agriculture: for phytosanitary treatments and weed control with atomizers, reducing product drift
? Agricultural industries: for precise distribution in difficult working conditions

F= FINE
VF= VERY FINE
M= MEDIUM
C= COARSE
VC= VERY COARSE
XC= EXTREMELY COARSE
UC= ULTRA COARSE
