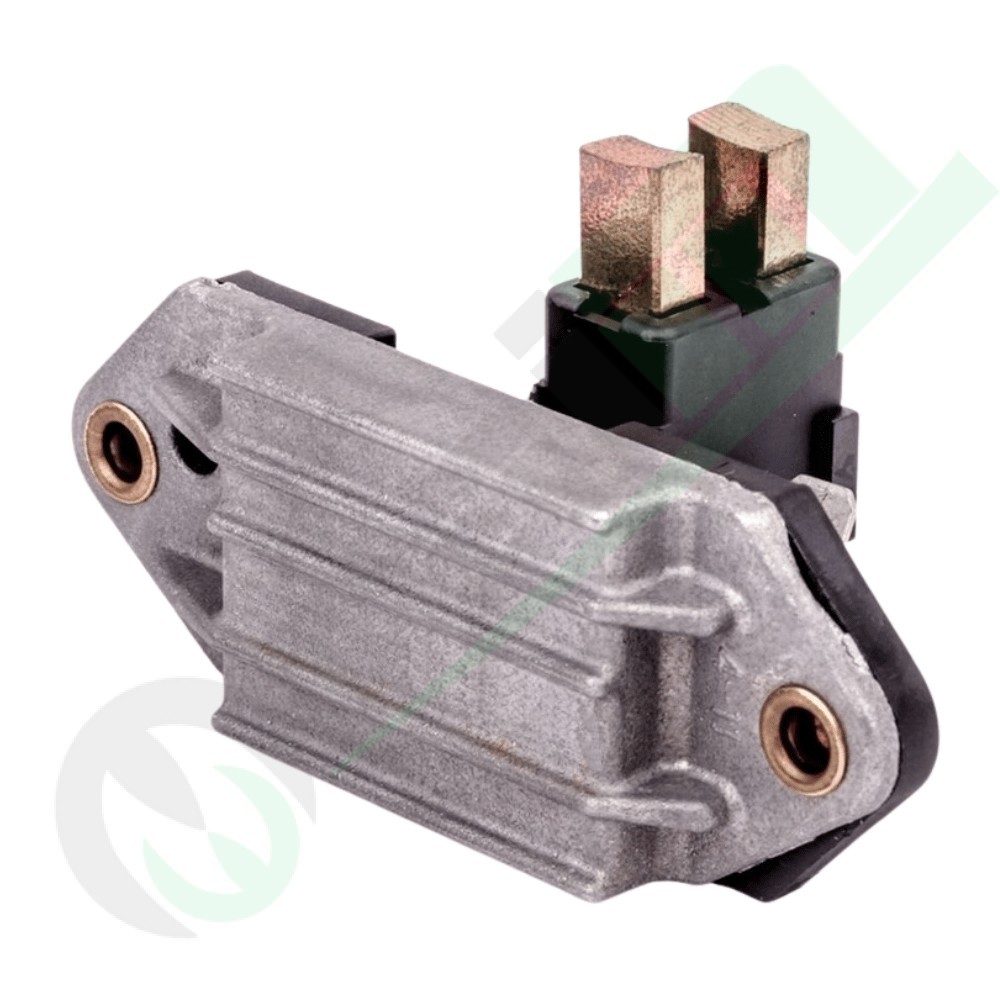

MAHLE Original 14V Electronic Voltage Regulator for Agricultural & Industrial Alternators - Part Number: 37911125198
The MAHLE Original electronic voltage regulator (part number 37911125198, original OEM references 130676, MGX 1801, MGX1801) is an OEM-grade solid-state charging control module designed to accurately regulate voltage generated by alternators installed on agricultural tractors, harvesters, and industrial machinery. Pre-calibrated for 14 V nominal charging systems with MAHLE / Letrika / Iskra architecture, it comes complete with an integrated heavy-duty brush holder assembly. By dynamically adjusting the rotor excitation field, it prevents dangerous system voltage spikes and under-charging conditions, protecting vehicle electronics and maintaining the 12V starter battery in optimal health.
Key Features & Engineering Advantages
- OEM MAHLE / Letrika Quality: Engineered to exact factory specifications, ensuring micro-level electrical calibration, high thermal endurance, and direct plug-and-play fitment.
- Precise 14V Output Regulation: Delivers stable charging voltage across all operating RPM bands, preventing battery overcharging, electrolyte boil-off, and low-idle battery draw.
- Integrated Brush Holder & Carbon Brushes: Fitted with high-copper graphite brushes featuring controlled progressive wear properties and calibrated springs for consistent slip ring contact.
- Encapsulated Solid-State Circuitry: Internal electronics are sealed in high-grade potting resin to resist severe engine vibration, high ambient temperatures, chaff, and moisture.
- Integrated Thermal Compensation: Automatically adjusts regulation setpoints according to ambient operating temperatures, optimizing winter cranking capacity and summer battery longevity.
- Extensive Cross-Reference Match: Directly replaces popular aftermarket and factory references including Iskra/Letrika (11.125.198, MGX 1801) and Cargo (130676).
Technical Specifications
| Commercial Part Number |
37911125198 |
| Brand / Manufacturer |
MAHLE (Letrika / Iskra range) |
| Original Equipment References (OEM) |
130676, MGX 1801, MGX1801, 11.125.198 |
| Component Classification |
Electronic voltage regulator with integrated brush holder |
| Nominal Regulating Voltage |
14 V (for 12V vehicle electrical systems) |
| Circuit Architecture |
Solid-state electronic with overvoltage suppression |
| Carbon Brush Assembly |
Included (pre-loaded copper-graphite brushes with contact springs) |
| Mounting Configuration |
Rear alternator end-frame direct screw-on mount |
| Primary Alternator Application |
MAHLE / Letrika / Iskra alternator platforms (e.g., AAG, IA, AAK series) |
OEM Cross Reference Table & Applications
| Manufacturer / Brand |
Interchangeable Reference Numbers |
| MAHLE / ISKRA / LETRIKA |
11.125.198, 11125198, MGX 1801, MGX1801, AER1528 |
| CARGO |
130676 |
| Machinery Applications |
Agricultural tractors, combine harvesters, stationary diesel gen-sets, and construction plant powered by 14V Iskra / Letrika / Mahle charging systems |
Installation Advice & Workshop Notes: Always disconnect the negative battery lead prior to opening the alternator rear cover. Before mounting the replacement regulator, inspect the copper slip rings on the rotor shaft: if grooved, scored, or out-of-round, polish or resurface them to avoid rapid carbon brush failure. Verify that the brushes slide smoothly in their holders, gently position the unit over the slip rings, and tighten the retaining screws evenly to prevent cracking the composite housing.
