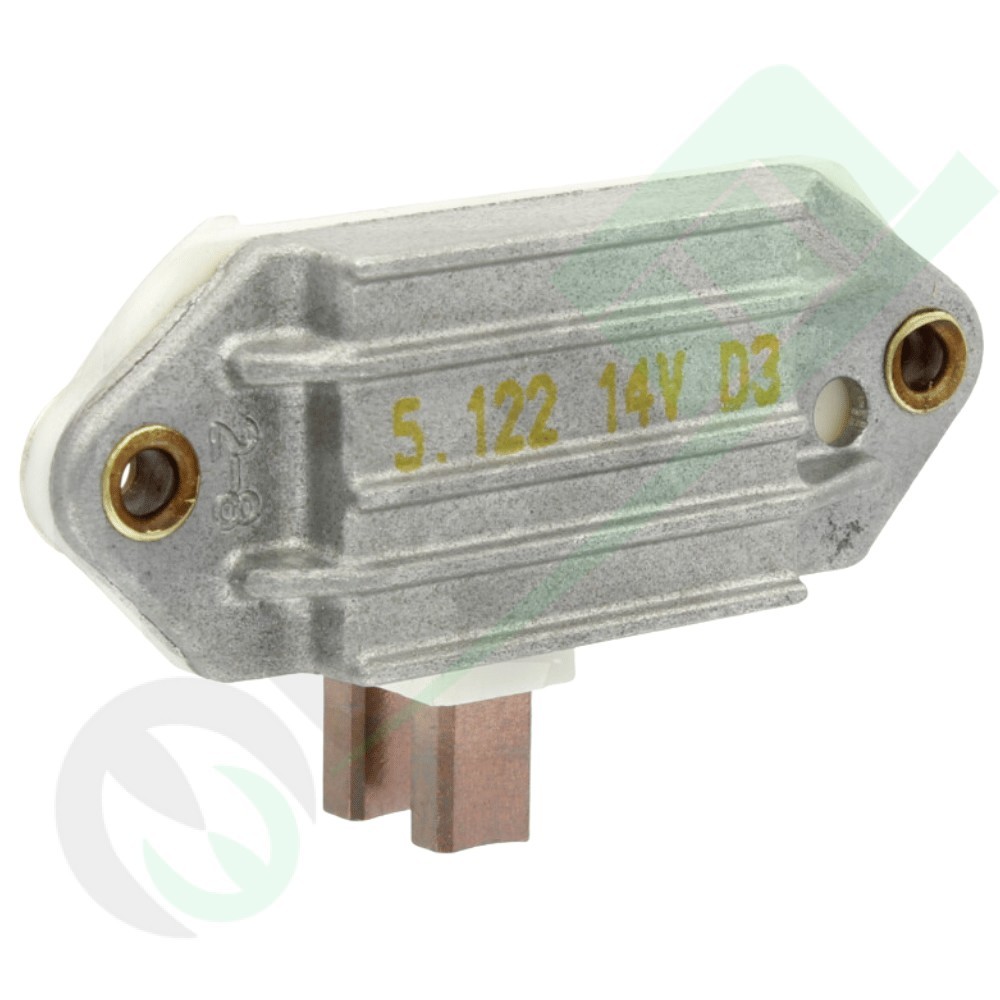

MAHLE 14 V Solid-State Voltage Regulator with Brush Holder for Agricultural Alternators - Part Number: 37911125122
The MAHLE integrated solid-state voltage regulator with brush holder assembly (part number 37911125122, manufacturer references MGX503, MGX 503) is an OEM-grade mechatronic module engineered to control rotor excitation and stabilize system charging voltage across 12 V / 14 V vehicle networks. Built for heavy-duty MAHLE / Iskra / Letrika alternators (including the IA0499 / 379IA0499 / MG 604 compact family), it protects modern tractor electronics, auxiliary lighting, and onboard batteries from overvoltage spikes while maintaining steady output during heavy auxiliary loads. This unit features high-conductivity graphite brushes, calibrated tension springs, and a hermetically potted circuit resistant to heat, vibrations, and severe agricultural dust.
Key Features & Engineering Advantages
- Solid-State Electronic Regulation: Maintains a tight 14 V charging set-point, safeguarding electrical circuits and tractor ECUs against transient inductive surges and thermal drift.
- Integrated Brush Holder Unit: Factory-assembled with premium copper-graphite brushes and pre-calibrated springs to provide steady contact on the rotor slip rings and minimize radio frequency interference.
- Heavy-Duty Agricultural Dust & Moisture Sealing: Fully potted electronic circuitry in high-grade dielectric resin to withstand airborne dust, harvest chaff, moisture, and engine compartment vibration.
- Thermal Compensation & Overload Protection: Built-in active thermal management dynamically trims charging rates as under-hood temperatures rise, prolonging battery life.
- Direct OEM Fitment for MAHLE / Iskra Alternators: Direct drop-in replacement for MGX503 and MGX 503 part numbers, mounting directly onto the rear end-shield without harness alterations.
Technical Specifications
| Commercial Part Number |
37911125122 |
| Manufacturer / Quality Brand |
MAHLE (Iskra / Letrika) |
| OEM / Reference Codes |
37911125122, MGX503, MGX 503 |
| Component Classification |
Electronic voltage regulator with integrated brush holder |
| Nominal System Voltage |
14 V (for 12 V vehicle battery electrical systems) |
| Voltage Set-Point |
14.2 V – 14.5 V |
| Brush Assembly |
Pre-installed low-wear copper-graphite brushes with calibrated springs |
| Mounting Configuration |
Internal/rear-mounted on alternator slip-ring end-frame via direct screw bosses |
| Primary Function |
Voltage regulation and field excitation for MAHLE/Iskra agricultural alternators |
Alternator Compatibility & Equipment Guide
| Application Category |
Compatible Alternators & Machine Series |
| Compatible Alternators |
MAHLE / Iskra / Letrika 14V alternators rated at 45A, 55A, and 65A (including 379IA0499 / MG 604 / 11.201.499 and derivatives) |
| Antonio Carraro Tractors |
Series 300, 400, 500, 600, 700, 9000, 9800 compact, orchard, and crawler tractors equipped with MAHLE charging systems |
| Case IH Tractors |
B-Familie (644, 744, 844, 856 XL), C-Familie (955, 956, 1055, 1056 XL), CS and Compact series with matching MAHLE/Iskra units |
| Deutz-Fahr Tractors |
Series D 06, D 07, DX, DX 3, DX 4, DX 6, AgroPrima, AgroStar, AgroXtra fitted with MAHLE / Iskra alternators |
| John Deere Equipment |
Series 20, 30, 40, 50 tractors and Series 900 combine harvesters configured with compatible charging generators |
Installation Advice & Workshop Notes: Always disconnect the negative battery cable before performing work on the alternator or electrical components. Remove the rear protective cover of the alternator, undo the regulator fastening screws, and gently withdraw the old regulator module. Inspect the copper slip rings on the rotor: if scored, eccentric, or oxidized, lightly dress them using ultra-fine dry abrasive paper. Carefully slide the new MAHLE regulator in place, making sure not to chip or fracture the carbon brushes as they seat against the slip rings. Tighten mounting screws firmly to ensure solid ground continuity. Reconnect the battery, start the engine, and verify with a digital voltmeter that the charging voltage across the battery terminals stabilizes between 14.2 V and 14.5 V with the dashboard battery warning light extinguishing immediately.
