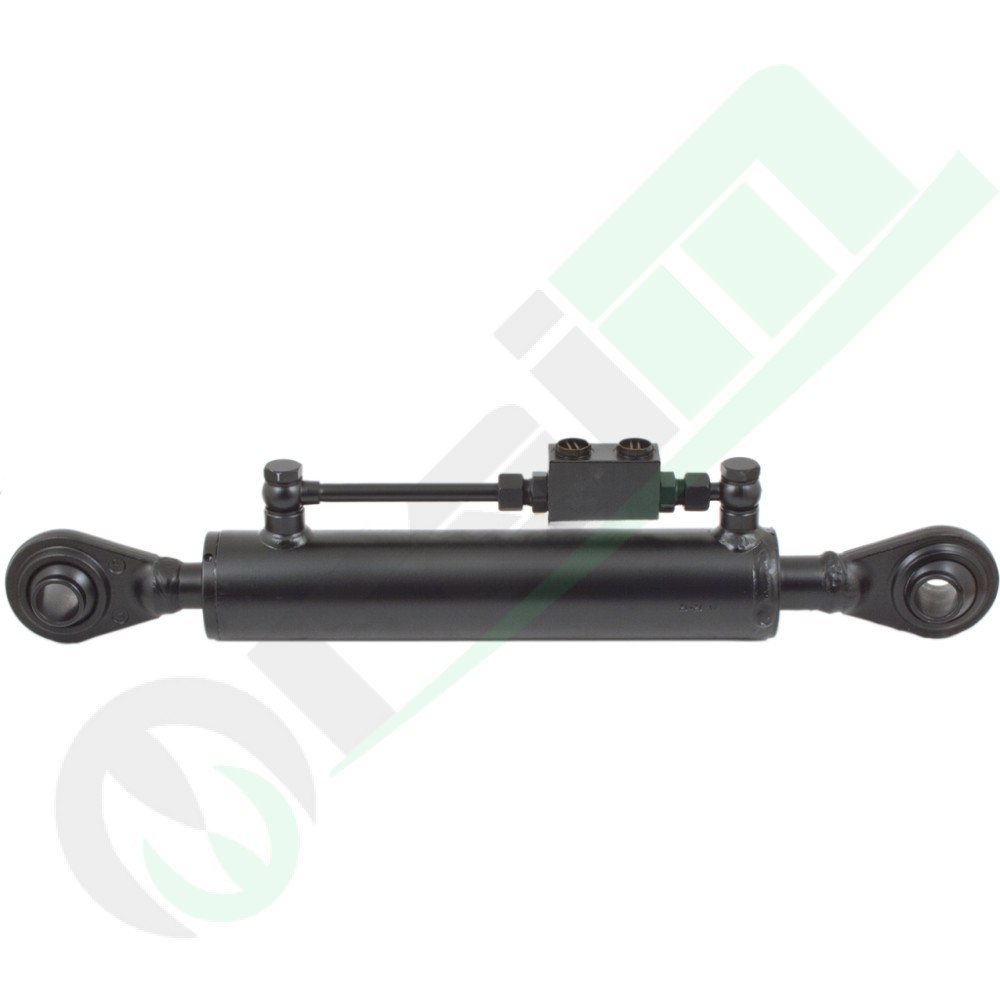

Heavy-Duty Hydraulic Top Link Cylinder for Lamborghini 674-70 N, 774-80 N, and Formula Part Number 50950

star star star star star_border
Aftermarket
50950

The heavy-duty hydraulic top link cylinder (code 50950) features a minimum length of 520 mm, a 180 mm stroke, an extra-powerful 80 mm bore, and a reinforced 40 mm rod (net weight 14.3 kg). It comes equipped with a large symmetric dual Ø 32.4 mm ball joint and an integrated 3/8" pilot check valve for absolute safety and reliable position holding under load. This high-performance cylinder is engineered as a precise, heavy-duty fit for Lamborghini utility tractors, specifically targeting the 674-70 N, 774-80 N, R135, and Formula 956 models.

Hurry! only 1 items left in stock.
€340.00
Tax included
COUPON
- € 6,80
Final price: € 333,20
Quantity

Last 1 items
Add to Compare
Add to Wishlist
Security Policy
Security Policy

Secure Shopping. Data protected with encryption. Your privacy is our priority!

Shipping Policy
Shipping Policy

Fast & Reliable Shipping. Orders handled with care. Various options available.

Secure Payments
Secure Payments

Secure Payments! Transactions protected by encryption. Your safety is guaranteed.

Hydraulic Top Link Cylinder 520x80x40 with Dual Ball Joints - Code 50950

The heavy-duty hydraulic top link cylinder (Product Code: 50950) is a professional-grade hydraulic actuator engineered for structural coupling, real-time geometry adjustment, and secure load retention of heavy three-point linkage implements. Featuring a reinforced, oversized barrel configuration with a heavy-duty rod layout (minimum retracted length of 520 mm and a net weight of 14.3 kg) tailored to match the high mechanical stress requirements of Lamborghini wheeled utility tractors, this dual-acting mechanism allows operators to adjust implement pitch angles dynamically from the cabin.
Design Details and Functionality
This hydraulic top link comes fully equipped with a standard dual-pilot check safety valve threaded to 3/8". The check valve provides a robust mechanical locking force, sealing fluid within the cylinder chambers to maintain the structural rod configuration even under sudden line pressure drops or hydraulic hose ruptures, shielding heavy suspended field implements from accidental dropping. The hardware layout features a symmetrical Category 3 configuration, with standard spherical knuckle joint swiveling ball eyes on both the cylinder base side (tractor linkage) and the rod end side (implement linkage), each machined with an oversized 32.4 mm pin bore hole. The combination of an oversized 80 mm cylinder bore diameter, a high-tensile 40 mm micro-polished chrome rod, and a 180 mm stroke provides massive mechanical pushing force along with superior structural rigidity under tough working field conditions.
Technical Specifications
Component Classification Double-acting hydraulic top link actuator cylinder (Heavy-Duty)
Brand Compatibility Lamborghini (Adaptable)
Minimum Length (Retracted) 520 mm
Cylinder Stroke 180 mm
Cylinder Bore Diameter (D) 80 mm
Piston Rod Diameter (d) 40 mm
Piston Rod End Fitting (F) Spherical knuckle joint swiveling ball eye Ø 32.4 mm (Cat. 3)
Cylinder Base End Fitting (P) Spherical knuckle joint swiveling ball eye Ø 32.4 mm (Cat. 3)
Hydraulic Port Connection 3/8" BSP threads (with pre-assembled pilot-operated dual check safety valve)
Net Component Weight 14.3 kg
Product Code 50950
Tractor Applications & Compatibility
Tractor Manufacturer Compatible Series & Models
LAMBORGHINI R135 formula, Formula 956
LAMBORGHINI N SERIES 674-70 N, 774-80 N
