Heavy-Duty Hydraulic Top Link Cylinder for Case IH 4200 Series Under 100 HP Part Number 50742

star star star star star_border
Aftermarket
50742

The heavy-duty hydraulic top link cylinder (code 50742) features a minimum length of 570 mm, a 250 mm stroke, an extra-powerful 80 mm bore, and a reinforced 40 mm rod (net weight 15.81 kg). It comes equipped with a symmetric dual Ø 25.4 mm ball joint and an integrated 3/8" check valve for safe position holding under load. This high-performance cylinder is engineered as a precise, heavy-duty fit for Case IH utility tractors under 100 HP, specifically targeting the 4200 Series models (4210, 4220, 4230, and 4240).

Hurry! only 2 items left in stock.
€345.00
Tax included
COUPON
- € 6,90
Final price: € 338,10
Quantity

Last 2 items
Add to Compare
Add to Wishlist
Security Policy
Security Policy

Secure Shopping. Data protected with encryption. Your privacy is our priority!

Shipping Policy
Shipping Policy

Fast & Reliable Shipping. Orders handled with care. Various options available.

Secure Payments
Secure Payments

Secure Payments! Transactions protected by encryption. Your safety is guaranteed.

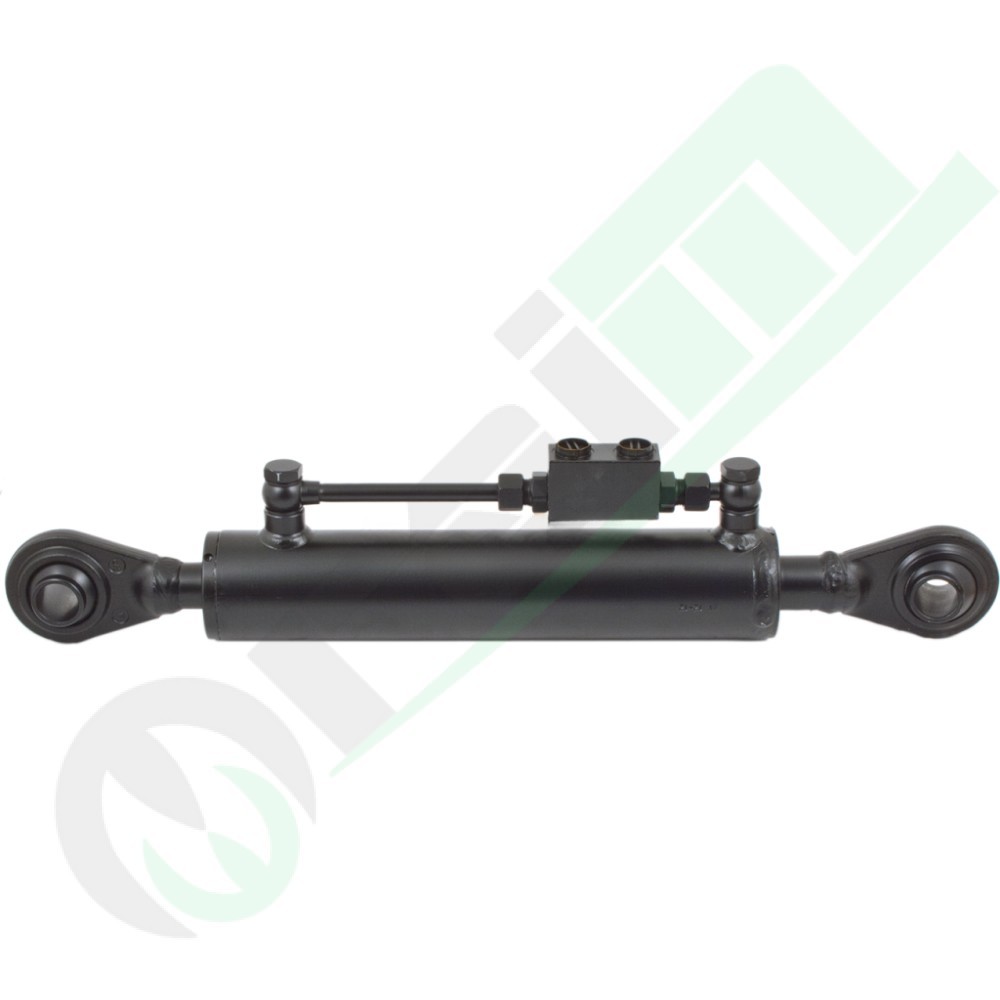

Hydraulic Top Link Cylinder 570x80x40 for Case IH - Code 50742

The heavy-duty hydraulic top link cylinder (Product Code: 50742) is a professional-grade hydraulic actuator engineered for structural coupling, real-time geometry adjustment, and secure load retention of heavy three-point linkage implements. Featuring a reinforced, oversized barrel configuration with a heavy-duty rod layout (minimum retracted length of 570 mm and a net weight of 15.81 kg) tailored to match the mechanical stress requirements of Case IH tractors under 100 HP (specifically the 4200 / 4000 utility series), this dual-acting mechanism allows operators to adjust implement pitch angles dynamically from the cabin.
Design Details and Functionality
This hydraulic top link comes fully equipped with a standard dual-pilot check safety valve threaded to 3/8". The check valve provides a robust mechanical locking force, sealing fluid within the cylinder chambers to maintain the structural rod configuration even under sudden line pressure drops or hydraulic hose ruptures, shielding heavy suspended field implements from accidental dropping. The hardware layout features a symmetrical Category 2 configuration, with standard spherical knuckle joint swiveling ball eyes on both the cylinder base side (tractor linkage) and the rod end side (implement linkage), each machined with a 25.4 mm pin bore hole. The combination of an oversized 80 mm cylinder bore diameter, a high-tensile 40 mm micro-polished chrome rod, and a 250 mm stroke provides massive mechanical pushing force along with superior structural rigidity under tough open-field working conditions.
Technical Specifications
Component Classification Double-acting hydraulic top link actuator cylinder (Heavy-Duty)
Brand Compatibility Case IH (Adaptable)
Minimum Length (Retracted) 570 mm
Cylinder Stroke 250 mm
Cylinder Bore Diameter (D) 80 mm
Piston Rod Diameter (d) 40 mm
Piston Rod End Fitting (F) Spherical knuckle joint swiveling ball eye Ø 25.4 mm (Cat. 2)
Cylinder Base End Fitting (P) Spherical knuckle joint swiveling ball eye Ø 25.4 mm (Cat. 2)
Hydraulic Port Connection 3/8" BSP threads (with pre-assembled pilot-operated dual check safety valve)
Net Component Weight 15.81 kg
Product Code 50742
Tractor Applications & Compatibility
Manufacturer / Segment Compatible Models
CASE IH
(Models under 100 HP)		 4200 / 4000 SERIES: 4210, 4220, 4230, 4240
: 50742
