Massey Ferguson 4370 4300 Series Heavy-Duty Hydraulic Top Link 720mm 50872 | Raim Store

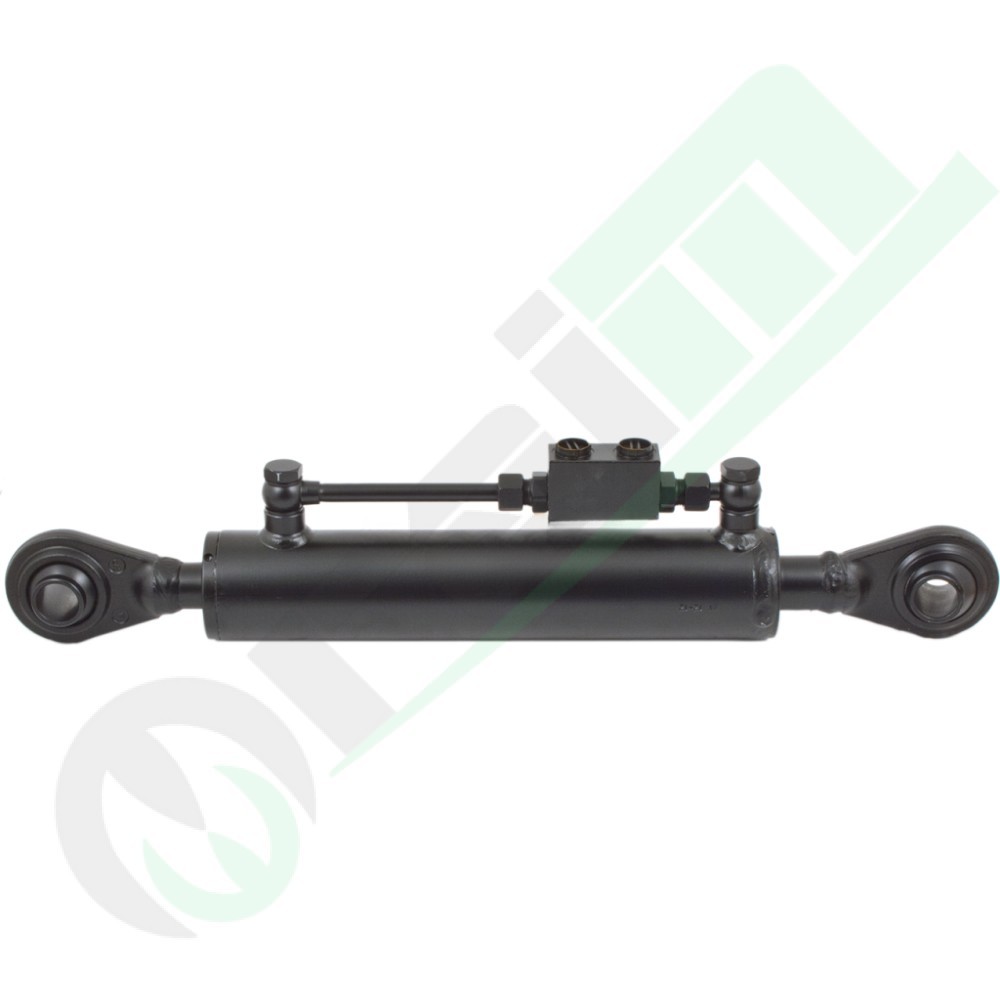

Heavy-Duty Hydraulic Top Link Cylinder for Massey Ferguson 4370 Tractors Part Number 50872

star star star star star_border
Aftermarket
50872

The heavy-duty hydraulic top link cylinder (code 50872) features a minimum length of 720 mm, a long 400 mm stroke, an extra-powerful 80 mm bore, and a reinforced 40 mm rod (net weight 18.77 kg). It comes equipped with a symmetric dual Ø 25.4 mm ball joint and an integrated 3/8" pilot check valve for safe position holding under heavy working loads. This high-performance cylinder is engineered as a precise, rugged fit for Massey Ferguson 4370 (4300 Series) utility tractors.

Hurry! only 1 items left in stock.
€358.99
Tax included
COUPON
- € 7,18
Final price: € 351,81
Quantity

Last 1 items
Add to Compare
Add to Wishlist
Security Policy
Security Policy

Secure Shopping. Data protected with encryption. Your privacy is our priority!

Shipping Policy
Shipping Policy

Fast & Reliable Shipping. Orders handled with care. Various options available.

Secure Payments
Secure Payments

Secure Payments! Transactions protected by encryption. Your safety is guaranteed.

Hydraulic Top Link Cylinder 720x80x40 for Massey Ferguson - Code 50872

The heavy-duty hydraulic top link cylinder (Product Code: 50872) is a professional-grade hydraulic actuator engineered for structural coupling, real-time geometry adjustment, and secure load retention of heavy three-point linkage implements. Featuring a reinforced, oversized barrel configuration with an extended-reach layout (minimum retracted length of 720 mm and a net weight of 18.77 kg) tailored to match the technical specifications of Massey Ferguson field tractors (specifically the 4300 series), this dual-acting mechanism allows operators to adjust implement pitch angles dynamically from the cabin.
Design Details and Functionality
This hydraulic top link comes fully equipped with a standard dual-pilot check safety valve threaded to 3/8". The check valve provides a robust mechanical locking force, sealing fluid within the cylinder chambers to maintain the structural rod configuration even under sudden line pressure drops or hydraulic hose ruptures, shielding heavy suspended field implements from accidental dropping. The hardware layout features a symmetrical Category 2 configuration, with standard spherical knuckle joint swiveling ball eyes on both the cylinder base side (tractor linkage) and the rod end side (implement linkage), each machined with a 25.4 mm pin bore hole. The combination of an oversized 80 mm cylinder bore diameter, a high-tensile 40 mm micro-polished chrome rod, and a generous 400 mm stroke provides massive mechanical pushing force along with superior structural rigidity under tough open-field working conditions.
Technical Specifications
Component Classification Double-acting hydraulic top link actuator cylinder (Heavy-Duty)
Brand Compatibility Massey Ferguson (Adaptable)
Minimum Length (Retracted) 720 mm
Cylinder Stroke 400 mm
Cylinder Bore Diameter (D) 80 mm
Piston Rod Diameter (d) 40 mm
Piston Rod End Fitting (F) Spherical knuckle joint swiveling ball eye Ø 25.4 mm (Cat. 2)
Cylinder Base End Fitting (P) Spherical knuckle joint swiveling ball eye Ø 25.4 mm (Cat. 2)
Hydraulic Port Connection 3/8" BSP threads (with pre-assembled pilot-operated dual check safety valve)
Net Component Weight 18.77 kg
Product Code 50872
Tractor Applications & Compatibility
Tractor Manufacturer Compatible Series & Models
MASSEY FERGUSON 4300 SERIES: 4370
: 50872
