GRAMMER Compacto Basic XS (MSG283/8)

Product Description

The **Compacto Basic XS** seat is a compact and functional solution, featuring a mechanical scissors suspension with a horizontal tension spring package. Its main feature is the front-mounted lever that combines weight and height adjustments, optimizing suspension travel. The additional height limiter makes it especially suitable for use in low-profile cabs with limited space.

Technical Specifications

• Product Code: g1333859
• Model: MSG283/8
• Suspension: Mechanical
• Suspension Travel: 60 mm
• Height Adjustment: 60 mm (mechanical)
• Weight Adjustment: 50 - 130 kg
• Longitudinal Adjustment: Yes
• Seat Width: 420 mm
• Upholstery Material: PVC

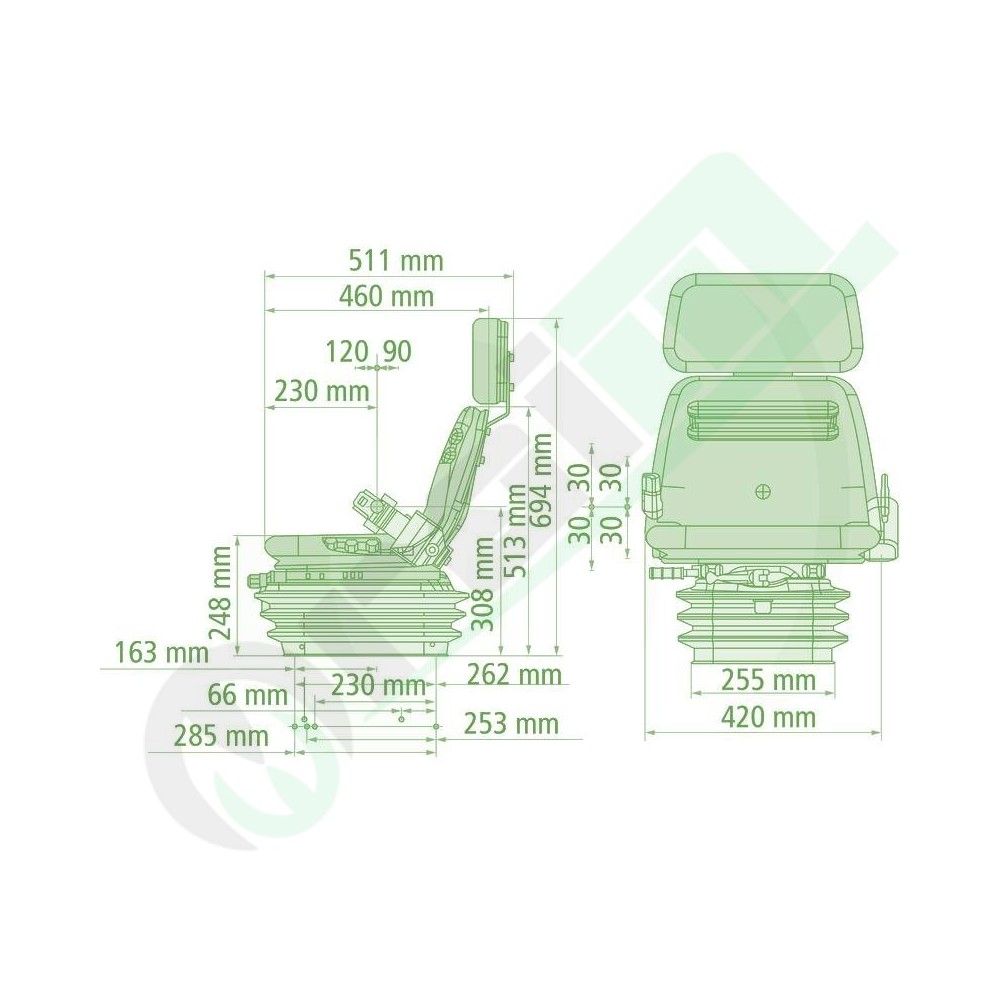

• Overall Dimensions: Length 511 mm, Height 513 - 694 mm
• Track Width: 225 mm

Optional Accessories

The following accessories are not included as standard and can be added based on your needs:

• Safety belt system
• Headrest
