Grammer Compacto Basic S (MSG83/511) Mechanical Suspension Seat in Heavy-Duty PVC - Part Number: 2401081364 / OEM Ref. 1081364

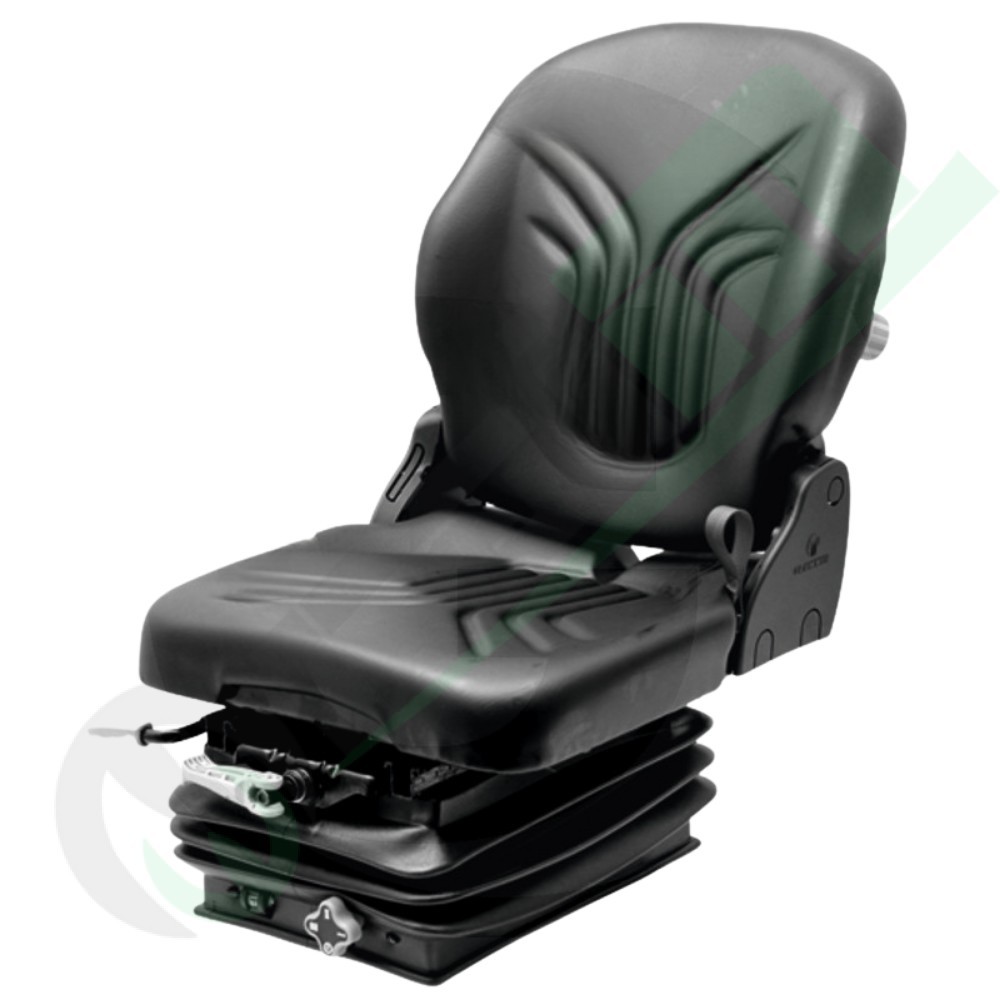

The Grammer Compacto Basic S (model MSG83/511) low-profile mechanical suspension tractor seat (part number 2401081364, genuine Grammer OEM reference 1081364) is an authentic compact seating assembly (400 mm cushion width) designed specifically for vineyard, orchard, alpine, municipal, and narrow-track agricultural tractors. Equipped with a heavy-duty mechanical scissor suspension providing an 80 mm travel stroke, it features an intuitive combined height and weight adjustment system: a rotary slide knob sets 3 distinct seat height levels (total height 627 to 687 mm), while a front-mounted lever with a visual weight indicator window allows drivers to calibrate the spring preload directly while seated, ensuring the full suspension stroke is always maintained. Upholstered in weather-resistant, heavy-duty waterproof PVC (vinyl), it withstands harsh exposure to sun, rain, mud, and power washing. Featuring an adjustable-tilt backrest, mechanical lumbar support, and a 225–227 mm rail track gauge, it provides universal compatibility across selected models from Case IH, Deutz-Fahr, Fendt, Fiat, Ford, John Deere, Kubota, Lamborghini, Landini, Massey Ferguson, McCormick, Same, and New Holland.
Key Features & Ergonomic Advantages
- Compact Space-Saving Profile (400 mm Width): Engineered specifically for narrow cab enclosures and tight open-station platforms, maximizing arm clearance and side control accessibility.
- Mechanical Scissor Suspension (80 mm Stroke): Calibrated pantograph mechanism designed to isolate the driver's spine from harsh ground impacts and intense vibrations.
- Combined 3-Stage Height & Direct Weight Adjustment: Height adjustment from 627 to 687 mm via rotary knob, paired with an easy-to-read front-mounted lever for seated weight calibration, ensuring suspension travel is never compromised.
- Integrated Mechanical Lumbar Support & Reclining Backrest: Adjustable lumbar contouring with variable backrest angle inclination to provide continuous spinal support and alleviate fatigue during long operating shifts.
- Extended Fore/Aft Slide Travel (210 mm): Long 210 mm horizontal adjustment on precision ball-bearing guide rails to match drivers of all statures with optimum pedal and steering distance.
- Heavy-Duty Waterproof PVC Upholstery: High-resilience synthetic vinyl resistant to UV radiation, dirt, mud, grease, and high-pressure water jets, perfect for open-station machines.
- Modular Accessory Readiness: Fully pre-engineered to accept adjustable armrests (optional), fore/aft horizontal isolator suspension (optional), operator presence switch (optional), and integrated seat heating (optional).
Technical Specifications
| Commercial Part Number |
2401081364 |
| Genuine Grammer OEM Reference |
1081364 |
| Seat Model Designation |
Compacto Basic S (MSG83/511) |
| Suspension Mechanism |
Mechanical scissor linkage with internal hydraulic damper |
| Suspension Travel Stroke |
80 mm |
| Height Adjustment Range |
3-stage height adjustment from 627 mm to 687 mm |
| Fore/Aft Slide Travel |
210 mm on linear guide rails |
| Mounting Track Gauge |
227 mm (up to 225 mm) |
| Seat Cushion Width |
400 mm |

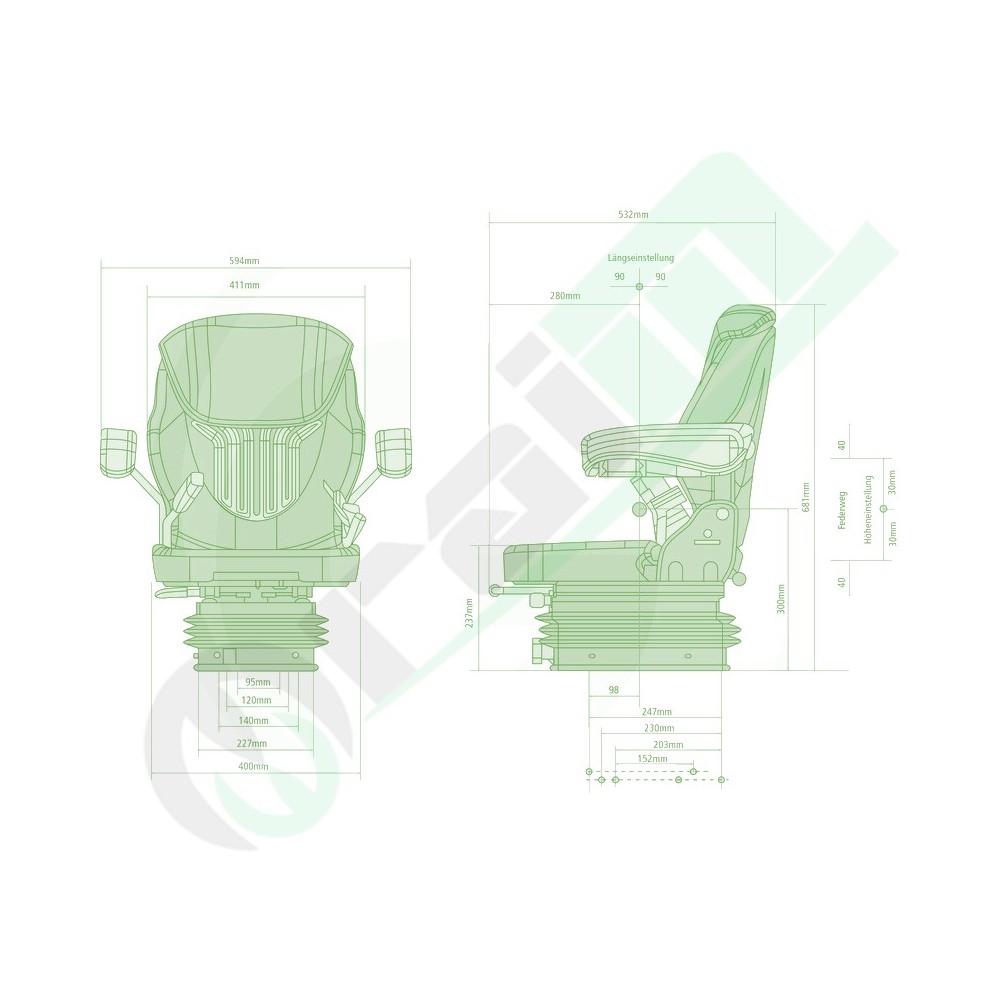

| Overall Dimensions (W x L x H) |
Width: 400 mm • Length: 501 mm • Height: 627 – 687 mm |
| Upholstery Material |
Heavy-duty waterproof UV-stabilized PVC (synthetic vinyl) |
| Lumbar Support |
Mechanical integrated |
| Backrest Recline Setting |
Continuously adjustable backrest tilt angle |
| Optional Equipment Readiness |
Armrests • Operator presence switch • Fore/aft horizontal isolator • Integrated cushion heating |
Compatible Tractor Brands (225 – 227 mm Track Mount Configuration)
| Tractor Brand |
Supported Configurations & Fitment Details |
| Case IH |
Compact, utility, and narrow tractors with 225–227 mm mounting rail track |
| Deutz-Fahr |
Specialty orchard/vineyard models (Agroplus series) and compact utility tractors |
| Fendt |
Narrow-track 200 V/F/P series and compact orchard/vineyard tractors |
| Fiat / Fiatagri & Ford |
Compact orchard and slope utility tractors configured with 227 mm track spacing |
| John Deere |
Specialty tractors (5E, 5G, 5GV, 5GF series) and narrow-chassis utility tractors |
| Kubota |
Compact and narrow-track tractors (B, L, and narrow M series) with 227 mm mounts |
| Lamborghini & Same |
SDF group orchard, vineyard, and compact field tractors with 227 mm rail tracks |
| Landini & McCormick |
Specialized lines (Rex, Mistral, Alpine) conforming to 225–227 mm bolt patterns |
| Massey Ferguson |
MF 3300, 3400, 3600 specialty lines and compact utility tractors |
| New Holland |
T3F, T4F, T4V, T4N series and open-platform utility tractors matching 227 mm tracks |
Installation Advice & Workshop Notes: Prior to installation, confirm the bolt pattern on the tractor floor pan or mounting console (227 mm rail track gauge). Secure the slide rails firmly using high-tensile hardware (Grade 8.8 minimum) and locking washers. If an operator presence switch is specified, install the switch into the cushion base before final bolt torquing and connect the wiring harness to the tractor's safety circuit. After installation, select the desired seat height (3 levels available) using the rotary slide knob, then, while seated, adjust the front weight lever until the indicator window reflects your body weight to ensure the full 80 mm suspension stroke is active. Finally, verify smooth 210 mm fore/aft sliding action and adjust the backrest recline angle to the preferred driving posture.
