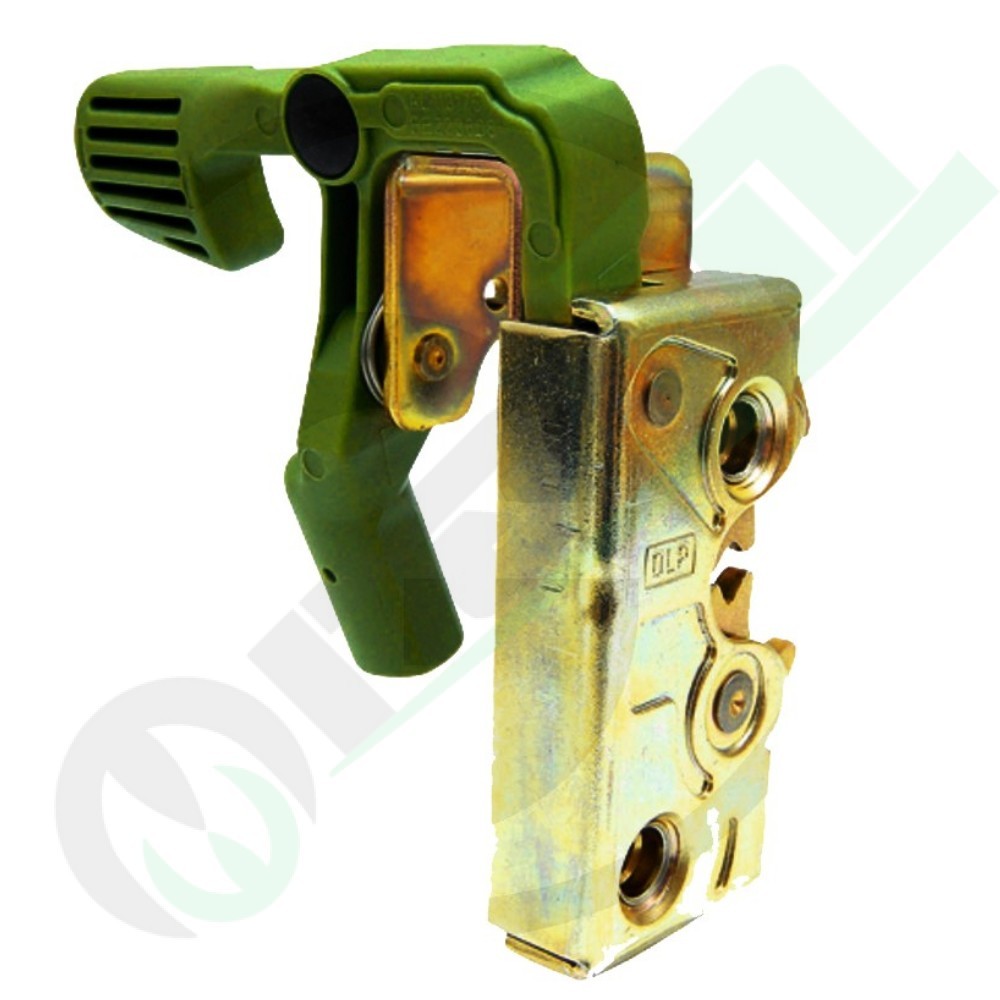

Left-Hand (LH Driver Side) Cabin Door Lock Latch Mechanism for John Deere Tractors - Part Number: 65412038

The heavy-duty left-hand (LH driver-side) cab door lock latch mechanism (part number 65412038, genuine John Deere OEM references AL202908, AL113176) is an authentic OEM-grade door closure and capture assembly designed to provide positive, secure, and vibration-free cab door locking on John Deere agricultural tractors (including TechCenter and ComfortGard cab enclosures). Fabricated with a heavy-gauge stamped steel housing protected by an anti-corrosion galvanized coating, it features a progressive dual-stage rotary safety catch system with linkage sockets for internal release handles, external push-button handles, and locking rods. Engineered strictly to original equipment tolerances, it delivers uniform perimeter clamping pressure against the left door weatherseal, preventing cab rattles, wind noise, draft ingress, and fine field dust contamination. It offers direct plug-and-play fitment across widespread John Deere tractor ranges (5M, 5R/5RN, 5020/5020N, 6000/6000SE, 6010/6010SE, 6020/6020SE, 6030/6030PR, and 7030/7030PR series).

Key Features & Engineering Advantages

• Two-Stage Positive Rotary Safety Catch: Progressive two-position latching cycle (initial capture and full lock) prevents accidental door unlatching under harsh field vibrations, engine harmonics, and rough terrain haulage.
• Direct John Deere Cab Frame Fitment: Mounting hole centers, backset, and linkage pivot points strictly conform to original John Deere cab door profiles, ensuring seamless bolt-on fitment without drilling, slotting, or rod re-engineering.
• Anti-Corrosion Tropicalized Zinc Plating: Rugged metallic casing and internal pivot pins resist oxidation, moisture, acidic agrochemicals, mud, and high-pressure steam cleaning.
• High-Tensile Internal Return Spring Pack: Calibrated spring pack delivers crisp, low-effort handle return, eliminating handle rattle, sag, and sticky mechanical actuation from both inside and outside the cab.
• Acoustic and Climate Cab Insulation: Exerts uniform clamping force on the perimeter door rubber seal, ensuring full cab soundproofing and maintaining climate control pressurization.

Technical Specifications

Equipment Compatibility & Tractor Application Guide

Manufacturer	Tractor Series	Supported Tractor Models
John Deere	5M Series	5065M, 5070M, 5075M, 5080M, 5085M, 5090M, 5095M, 5100M, 5105M
	5R / 5RN & 5020 / 5020N Series	5080R, 5090R, 5100R • 5620, 5720, 5820
	6000 & 6000SE Series	6100, 6200, 6300, 6400, 6506, 6600, 6800, 6900 • SE6100, SE6200, SE6300, SE6400
	6010 Series	6110, 6210, 6310, 6410, 6510, 6610, 6810, 6910, 6910S
	6010SE Series	SE6010, SE6110, SE6210, SE6310, SE6410, SE6510, SE6610
	6020 & 6020SE Series	6120, 6220, 6320, 6420, 6420S, 6520, 6620, 6820, 6920, 6920S • SE6020, SE6120, SE6220, SE6320, SE6420, SE6520, SE6620, SE6920
	6030 & 6030 Premium (PR) Series	6130, 6230, 6230 PR, 6330, 6330 PR, 6430, 6430 PR, 6530, 6530 PR, 6534, 6534 PR, 6630, 6630 PR, 6830, 6830 PR, 6930, 6930 PR
	7030 Premium (PR) Series	7430 PR, 7530 PR

Installation Advice & Workshop Notes: Before installation, dismantle the interior door trim panel on the LH door to reveal the latch pocket, and carefully unclip the linkage rods linking the exterior handle and the inside release mechanism. Unbolt the mounting fasteners from the door profile and remove the old latch unit. Position the new 65412038 latch mechanism, reconnect all operating linkage rods, and verify that they actuate freely without bending or binding. Tighten mounting screws securely, then align the striker pin on the cab B-pillar: the door should catch cleanly on the initial safety catch and close into the full lock position with moderate pressure, fully compressing the perimeter rubber seal. Periodically lubricate internal moving pawls and pivot points with white lithium grease or water-resistant PTFE spray.
