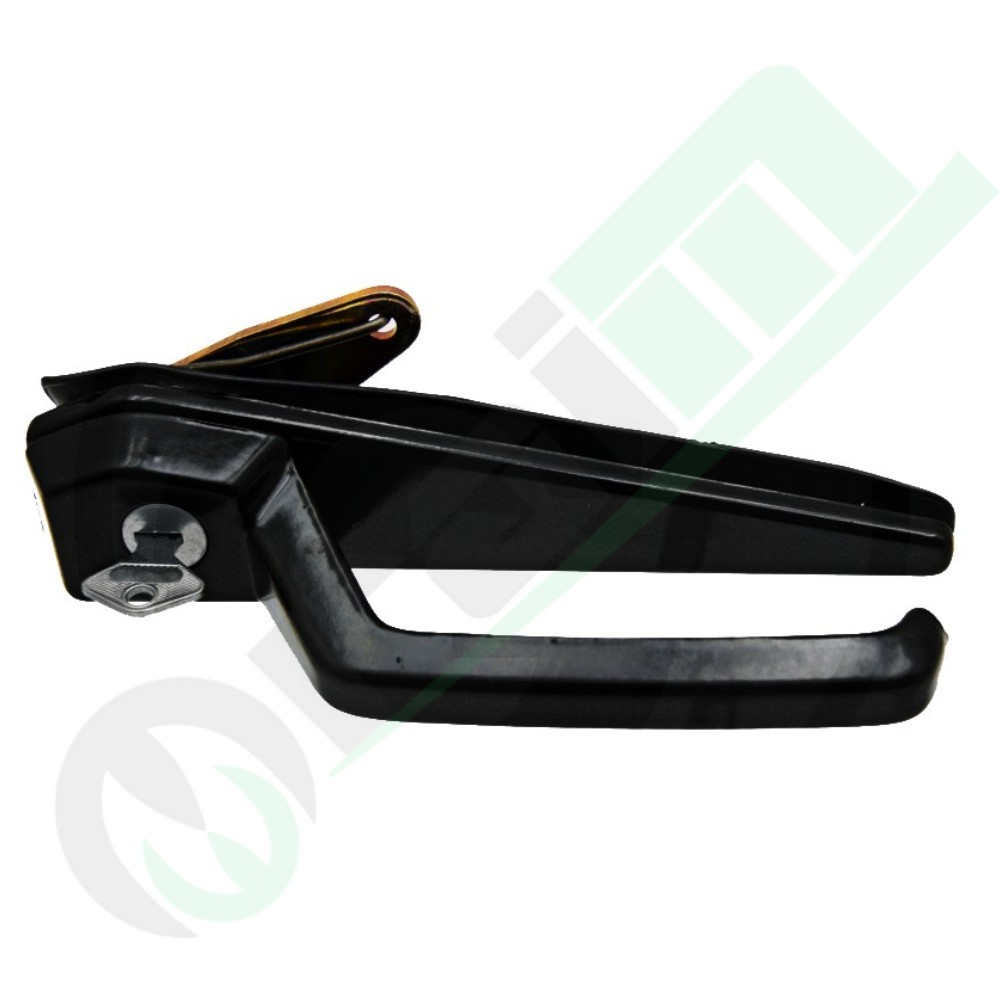

Left-Hand (LH Driver Side) Outer Cabin Door Handle for Fiat 88 Series Tractors with CS, Komfort & Super Comfort Cabs - Part Number: 65417015
The heavy-duty left-hand (LH driver-side) exterior cab door push-button handle (part number 65417015, genuine Fiat / FiatAgri OEM references 15845, 5108382) is an OEM-grade ergonomic manual release assembly engineered specifically for CS, Komfort, and Super Comfort cabin enclosures on FiatAgri 88 Series agricultural tractors. Molded from high-density, UV-stabilized structural polymer with wear-resistant internal pivot linkages, it is designed to actuate the left-hand mechanical door latch (compatible part number 65417017). Equipped with a spring-loaded push button and a calibrated receptacle for the key lock cylinder barrel, it ensures a secure and comfortable grip even when wearing heavy work gloves, while providing dependable perimeter weather sealing against rainwater and field dust ingress. It provides direct plug-and-play fitment across Fiat tractors (55-88, 60-88, 65-88, 70-88, 80-88 with CS, Komfort, or Super Comfort cabs).
Key Features & Engineering Advantages
- Factory-Accurate LH Fitment for CS, Komfort & Super Comfort Cabs: Mounting hole centers, stud lengths, and internal actuator positions strictly conform to original FiatAgri left-hand cab profiles, ensuring seamless bolt-on fitment without modifications.
- High-Impact & UV-Stabilized Technopolymer: Engineered from heavy-duty structural polymer resistant to severe temperature cycles (-30°C to +80°C), intensive sun exposure, agrochemicals, and pressure washdowns without degradation.
- Smooth Push-Button Release Mechanism: Calibrated push button fitted with a high-resilience steel return spring, providing crisp, low-effort door unlatching free of sticking or mechanical free-play.
- Key Lock Cylinder Receptacle: Precision-molded cavity accommodates the standard master key lock cylinder barrel, preserving cab anti-theft security and key compatibility.
- Environmental Perimeter Gasket Included: High-grade molded rubber base gasket seals the handle-to-door sheet interface, blocking rainwater, mud, and abrasive dust from entering the interior door frame.
Technical Specifications
| Commercial Part Number |
65417015 |
| Mounting Location / Side |
Left-Hand (LH - Driver Side Door) |
| Fiat / FiatAgri OEM References |
15845, 5108382 |
| Component Classification |
Exterior cabin door push-button handle |
| Cabin Structure Application |
CS, Komfort, and Super Comfort cabin enclosures |
| Material Specification |
UV-stabilized reinforced structural polymer with internal metal pivot pins and steel return spring |
| Actuation Method |
Push-button mechanical operation with key lock cylinder cavity |
| Matching Latch Mechanism |
Directly couples with LH latch 65417017 |
Equipment Compatibility & Tractor Application Guide
| Manufacturer |
Series / Cab Configuration |
Supported Tractor Models |
| Fiat / FiatAgri |
88 Series |
55-88, 60-88, 65-88, 70-88, 80-88 |
| Compatible Cab Packages |
CS Cab • Komfort Cab • Super Comfort Cab |
Installation Advice & Workshop Notes: Prior to installation, dismantle the interior service panel on the LH door to access the rear retaining nuts and unhook the linkage rod connected to the mechanical door latch (65417017). If retaining the original key cylinder, depress the internal spring retaining clip to transfer the lock barrel into the new handle body until securely seated. Ensure the molded rubber sealing gasket is aligned flush against the exterior door sheet metal to prevent moisture and dust entry. Tighten mounting nuts evenly without over-torquing the polymer casing. Finally, adjust the actuator linkage rod so that the push button has approximately 1–2 mm of free play before engaging the latch release lever, ensuring light, smooth opening and positive door gasket compression upon closure.
