Long Bonnet Rubber Catch 20023184 | Raim Store

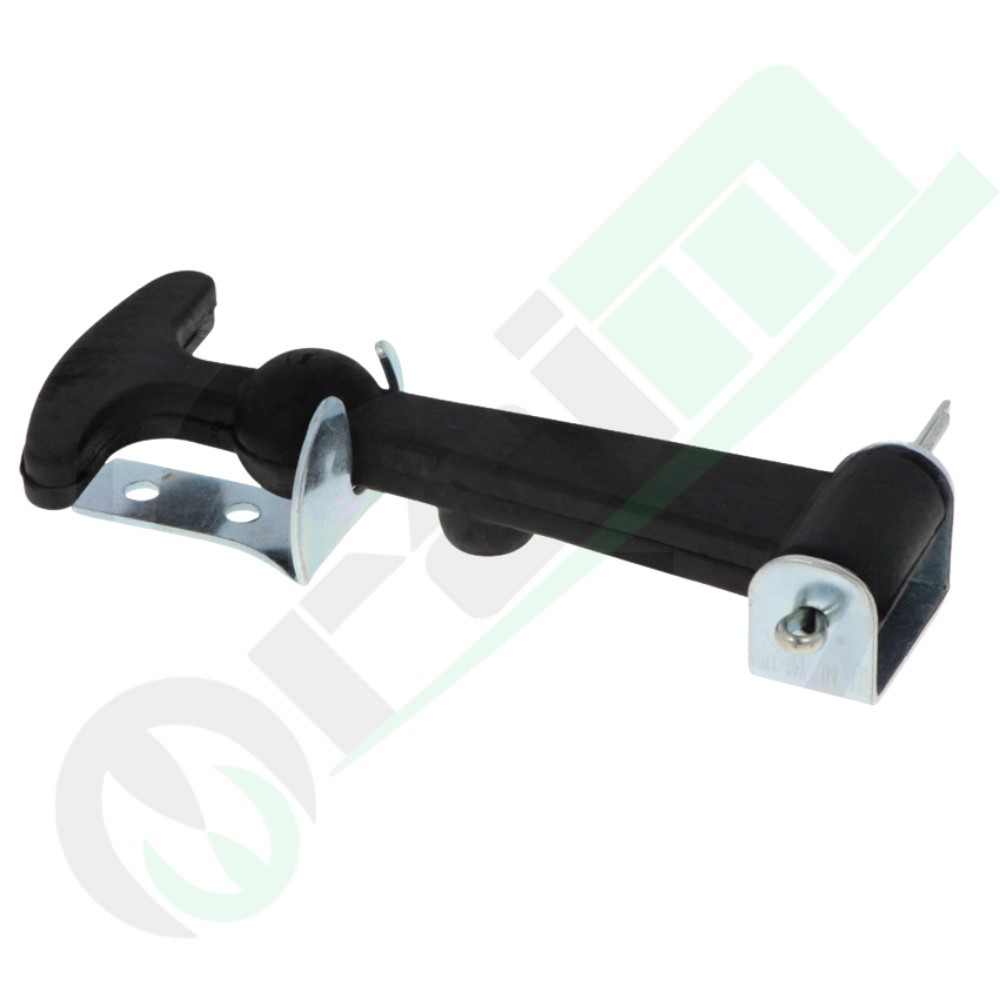

Long Hood Bonnet Rubber Catch Fastener with Bracket Part Number 20023184

star star star star star_border
Granit
20023184

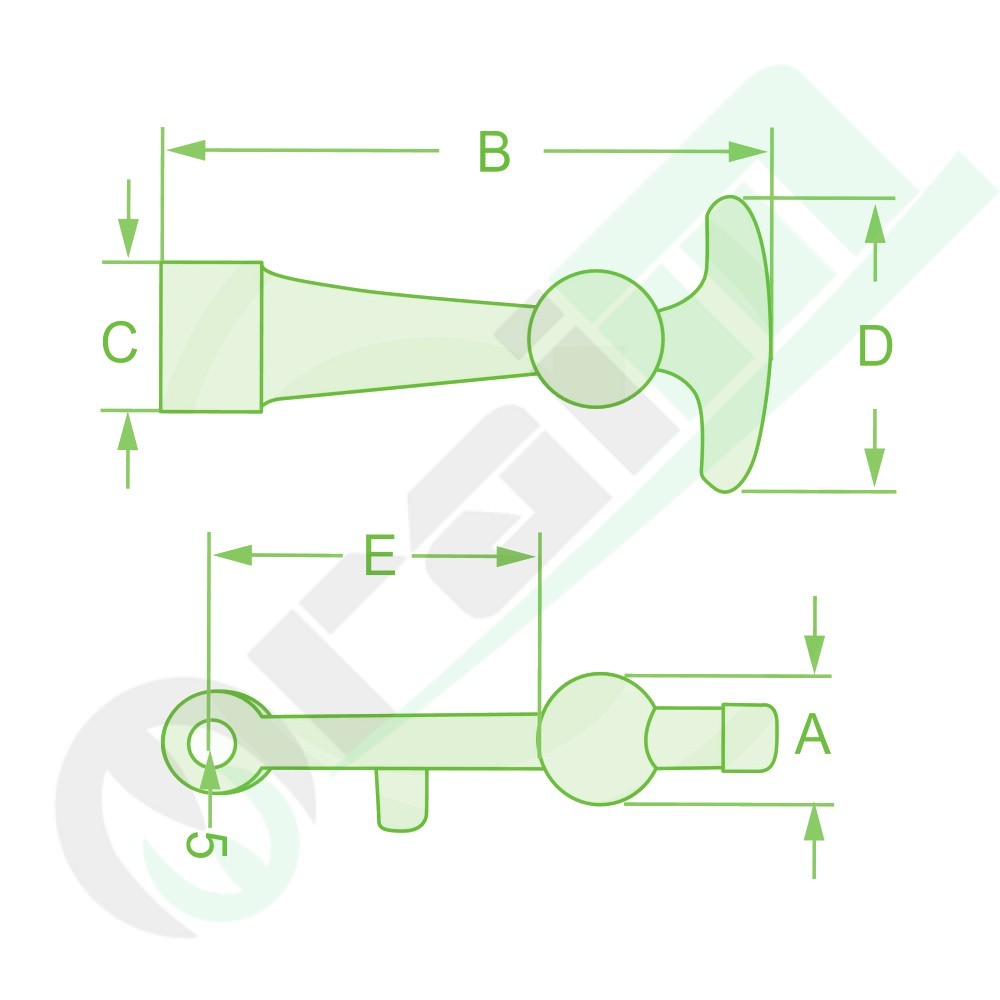

The long bonnet rubber catch with mounting bracket (code 20023184) ensures reliable panel closure. It features detailed structural specifications: 25 mm (A) width, 150 mm (B) length, 20 mm (C) base, 50 mm (D) hole spacing, and 92 mm (E) height.

Hurry! only 6 items left in stock.
€2.90
Tax included
COUPON
- € 0,06
Final price: € 2,84
Quantity

High availability
Add to Compare
Add to Wishlist
Security Policy
Security Policy

Secure Shopping. Data protected with encryption. Your privacy is our priority!

Shipping Policy
Shipping Policy

Fast & Reliable Shipping. Orders handled with care. Various options available.

Secure Payments
Secure Payments

Secure Payments! Transactions protected by encryption. Your safety is guaranteed.

Long Type Rubber Bonnet Catch Strap with Bracket - Code 20023184

The rubber bonnet catch strap complete with metallic mounting bracket (Version: Long - Product Code: 20023184) is a high-tenacity structural locking and fastening assembly engineered for the secure retention of engine hoods, front grilles, and heavy shielding enclosures on agricultural tractors, earthmoving machinery, and industrial utility vehicles. The combination of a flexible elastomeric body and a rigid steel mounting bracket provides a strong elastic preload that dampens severe mechanical vibrations, protecting hinges and preventing accidental unlatching during demanding field operations.
Design Details and Functionality
This technical replacement kit features exceptional resistance to environmental weathering, UV degradation, critical engine bay temperatures, and intermittent exposure to hydrocarbons such as hydraulic oils or fuels. Its precisely calibrated geometric outline guarantees perfect field interchangeability with original equipment configurations. Meticulous millimetric measurements highlight a functional latching width of 25 mm (Dimension A) matched with a commanding overall strap length of 150 mm (Dimension B). The mounting interface and structural hinge layout follow strict steps to optimize closure leverage, featuring an attachment joint thickness of 20 mm (Dimension C), a bracket flange profile height of 50 mm (Dimension D), and a targeted positioning pitch distance of 92 mm (Dimension E), ensuring a swift assembly and a completely stable, heavy-duty seal under tension.
Technical Specifications
Component Type Bonnet latch strap assembly with mounting bracket
Configuration / Variant Long version
Flexible Body Material High-strength technical rubber / Elastomer
Mounting Bracket Material Heavy-gauge stamped steel
Dimension A (Width) 25 mm
Dimension B (Length) 150 mm
Dimension C (Joint Thickness) 20 mm
Dimension D (Flange Height) 50 mm
Dimension E (Pitch Distance) 92 mm
Primary Field Applications Agricultural tractors, utility utility vehicles, heavy shielding enclosures, industrial panels
Product Code 20023184
: 20023184
Hurry! only 6 items left in stock.

Fast and safe shipping: each order is carefully packaged to ensure that the product arrives intact and in perfect condition.

We work with reliable couriers to offer an efficient, traceable and punctual service.

You will receive a link to follow the shipment at every stage, until delivery.

We use quality protective materials and, where possible, eco-friendly packaging.

Our priority is that your purchase arrives without surprises, ready to use.
