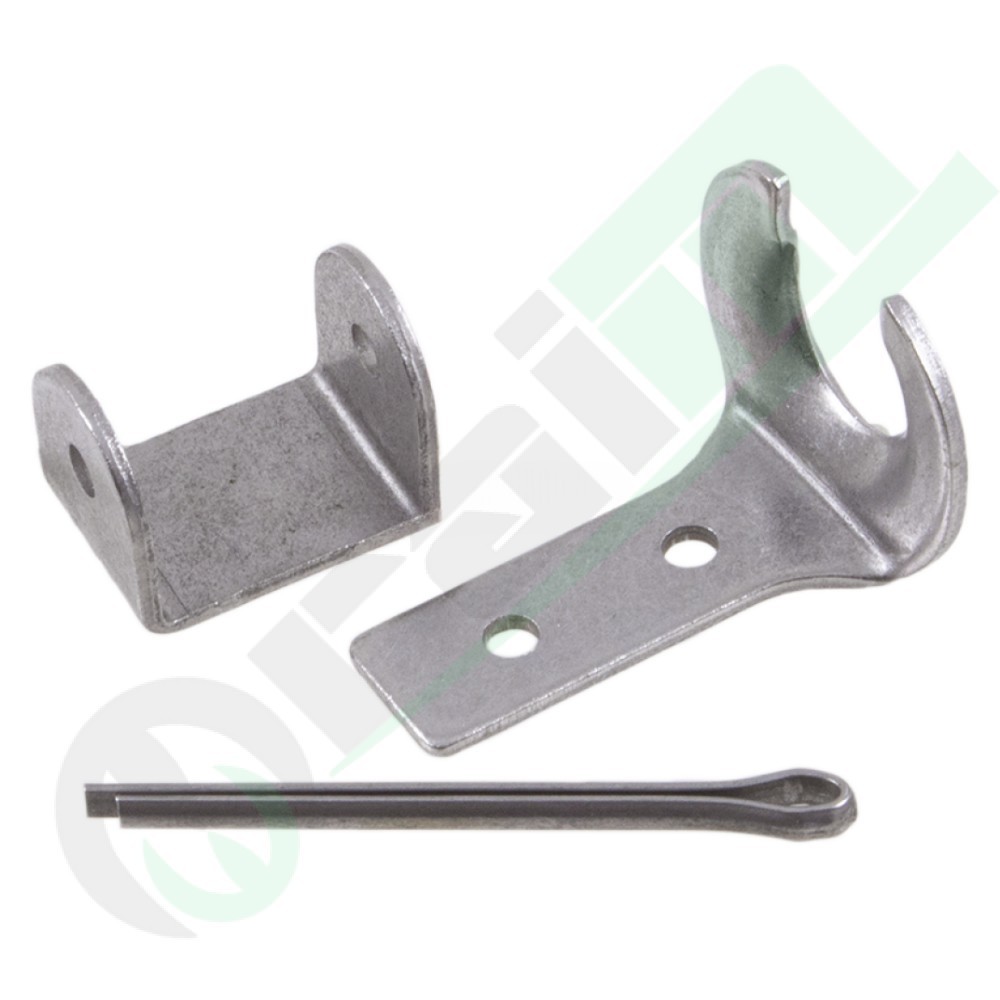

Complete Striker Catch Plate for 60124-60125 Series Articles

The complete striker catch plate (Specifically engineered for 60124-60125 series items) is a commercial-grade metallic mounting bracket built for the seamless alignment and anchoring of toggle fasteners, pull latches, and stretch straps on engine hoods, machine enclosures, and industrial protection guards. By distributing tensile locking stress evenly across the body panels, it maintains constant structural engagement and guards against accidental opening during extreme mechanical vibrations.

Design Details and Functionality

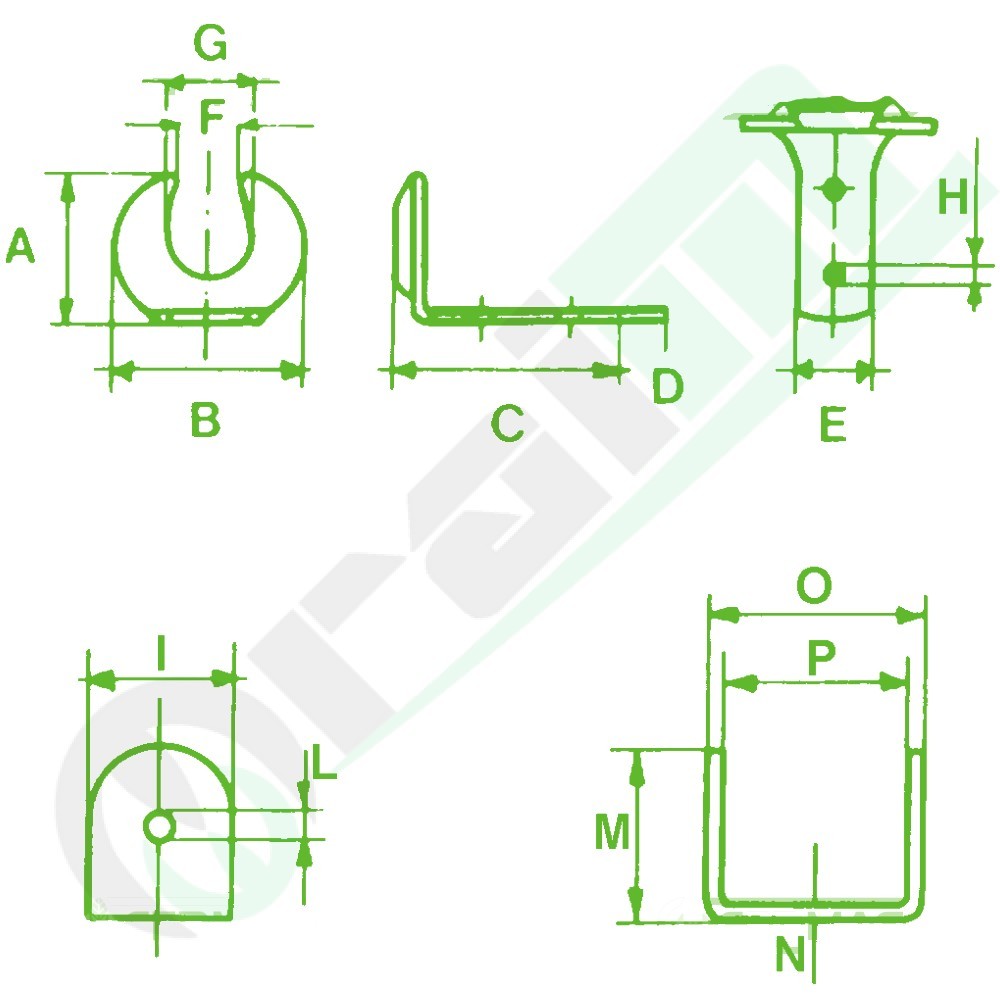

This industrial mounting accessory is stamped from raw high-tensile sheet metal, guaranteeing strict planar accuracy and outstanding yield resistance. The structural hardware features a matching heavy-duty thickness of 2 mm (Thickness D and Thickness N) to safely support rigid preloads without bending or cracking under stress during continuous vehicle operation. The multi-dimensional flange layout integrates versatile structural width steps calibrated at 14.5 mm (Width F), 16 mm (Width E), 18 mm (Width G), and 20 mm (Width I) to seamlessly match corresponding hook configurations. Definitive layout steps are supported by exact millimetric measurements, featuring a baseline length from 32 mm (Length A) up to 50 mm (Length C), an interlocking step of 5 mm (Length P), and a bracket profile height of 25 mm (Height M), ensuring clean field assembly via standard hardware bolts or rivets.

Technical Specifications
