Complete Galvanized Striker Plate for 429.5912104400-60125 Series

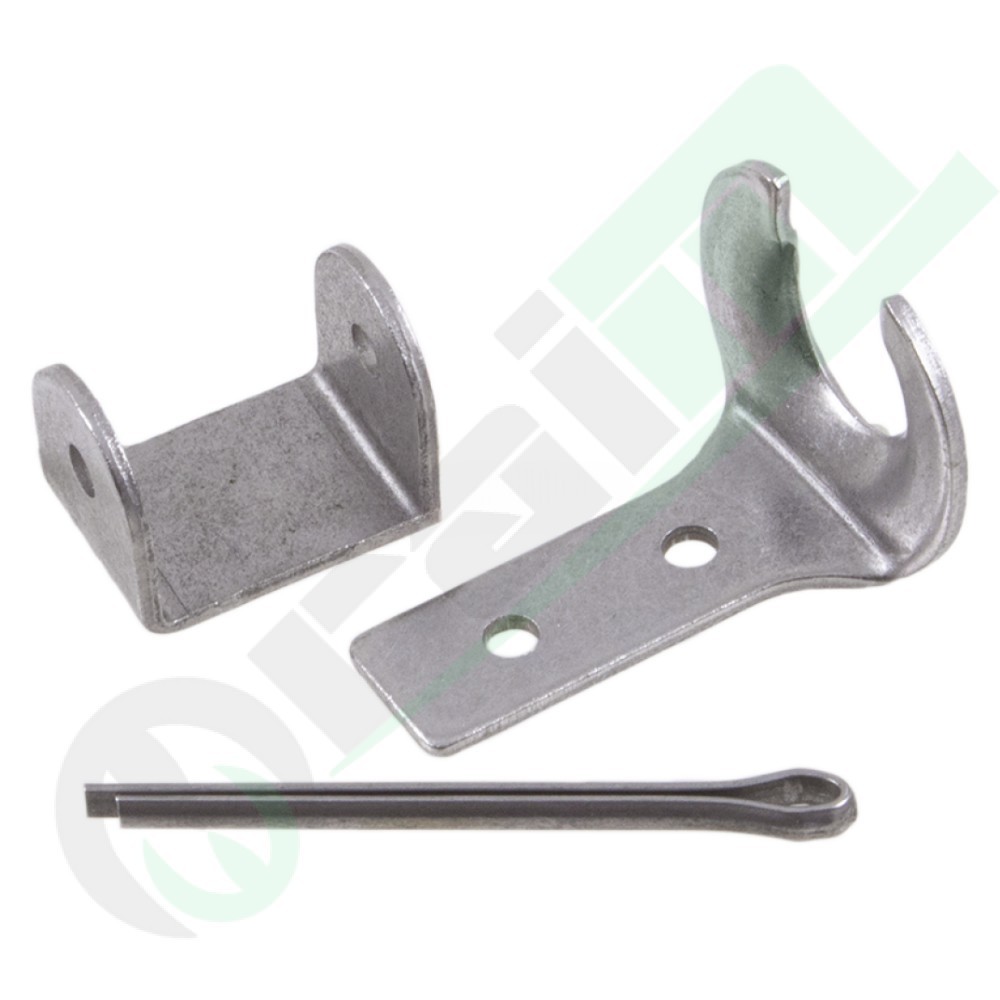

The complete galvanized striker plate (Specifically engineered for 60124-60125 series items) is a heavy-duty structural metallic mounting bracket designed for the secure alignment and engagement of pull latches, toggle fasteners, and draw hooks. The premium electrolytic zinc coating provides a highly durable barrier protection against rust, oxidation, and severe environmental weathering, ensuring long-term structural locking integrity in demanding industrial and agricultural field conditions.

Design Details and Functionality

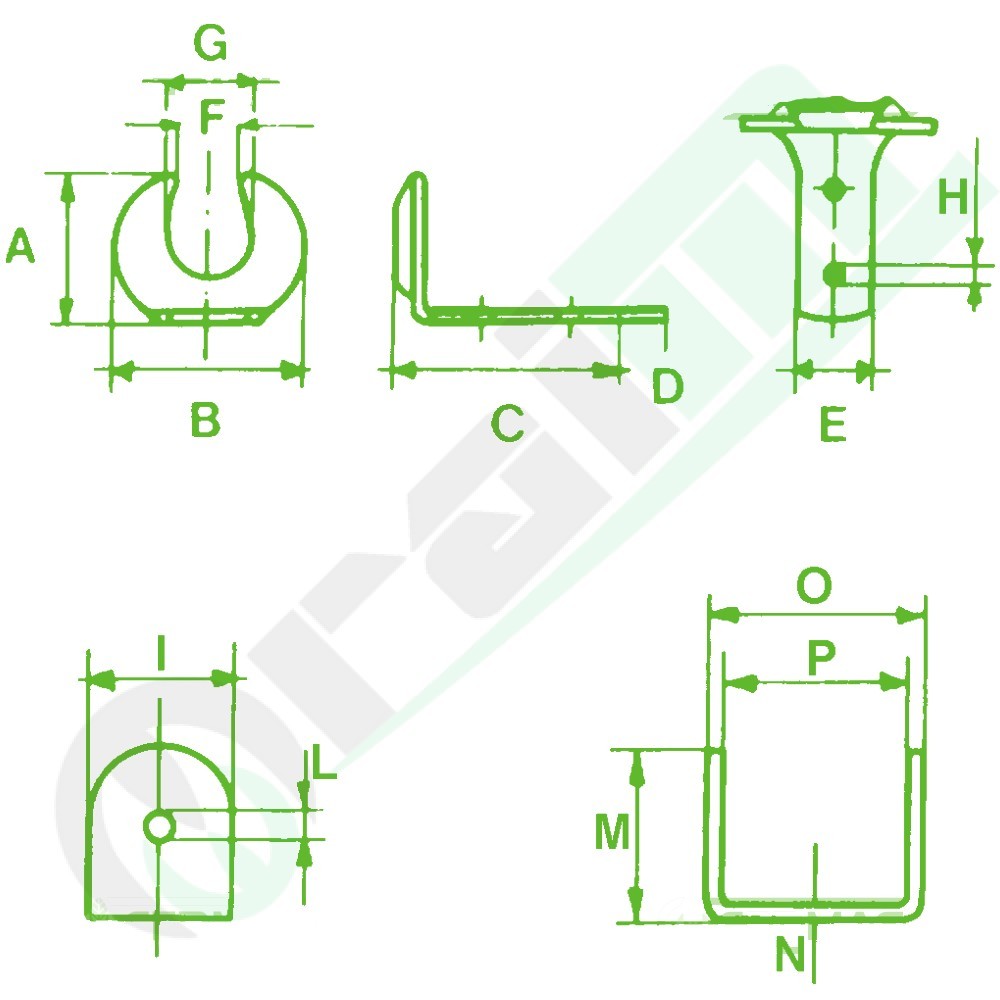

This structural fastening plate is cold-stamped with tight dimensional tolerances to maintain flat alignment and precise flush contact. The metal profile exhibits a heavy-duty thickness of 2 mm (Thickness D and Thickness N) to safely support rigid preloads without bending or experiencing structural yield stress when locked under high tension. The multi-dimensional flange layout integrates versatile structural width steps calibrated at 14.5 mm (Width F), 16 mm (Width E), 18 mm (Width G), and 20 mm (Width I) to seamlessly match corresponding hook configurations. Definitive layout steps are supported by exact millimetric measurements, featuring a baseline length from 32 mm (Length A) up to 50 mm (Length C), an interlocking step of 5 mm (Length P), and a bracket profile height of 25 mm (Height M), ensuring clean field assembly via standard hardware bolts or rivets.

Technical Specifications
