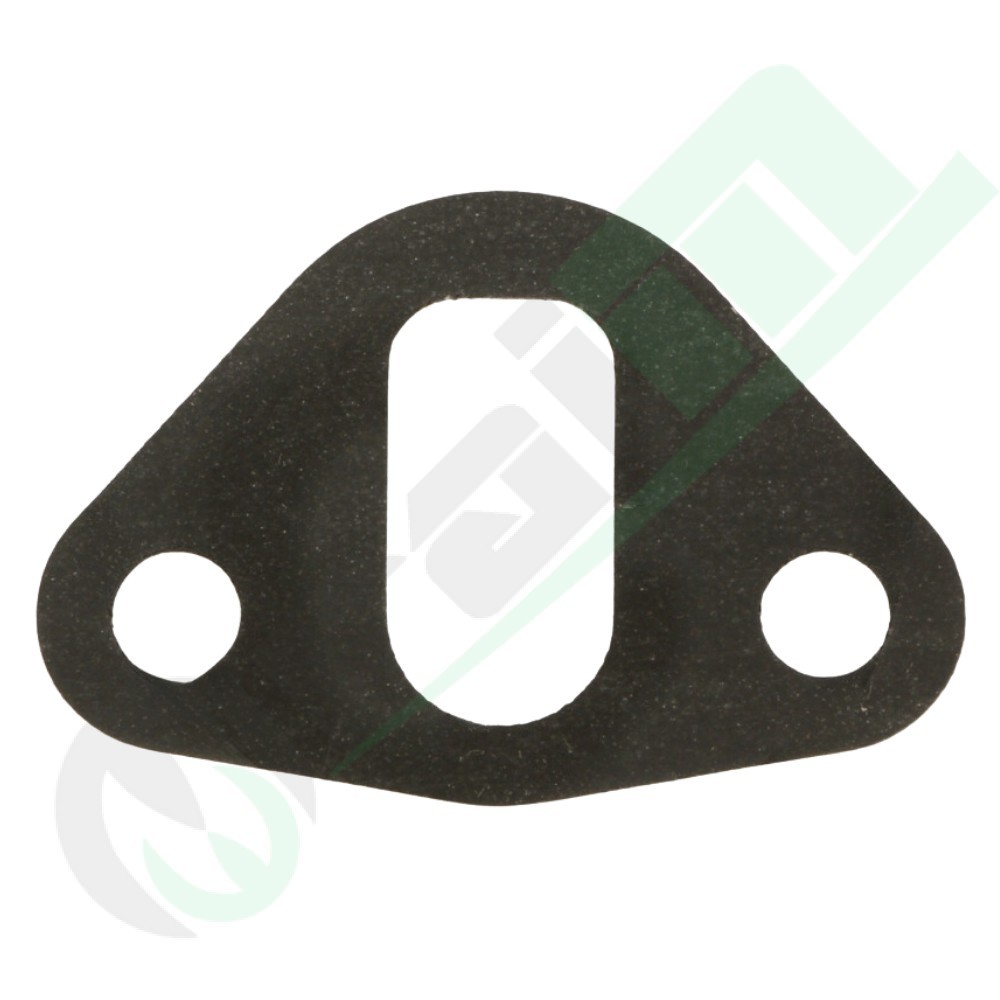

Fuel Feed Supply Pump Gasket for Massey Ferguson & Landini - Code 38015093

The fuel feed supply pump mounting gasket (part number 38015093) is an essential sealing component engineered to provide a tight hydraulic and mechanical seal between the fuel lift pump flange and the engine block on Perkins 3.152 3-cylinder diesel engines. Fully matching and interchangeable with original OEM references Massey Ferguson / Landini 826155M1 and 737081M1 (as well as 4223821M1, 36862167 and pump part numbers 6680339A1 / 3801812), it is designed for lift pumps with a 2-bolt pattern and 45 mm center-to-center hole spacing. It reliably prevents engine oil weeping and protects internal camshaft components from dirt and debris across wheeled, orchard, and crawler tractors by Landini and Massey Ferguson.

Key Features and Construction Advantages

• Certified OEM References 826155M1 & 737081M1: Exact dimensional and geometric match with factory specifications for Massey Ferguson and Landini equipment.
• High-Performance Sealing Compound: Heavy-duty compressed elastomer resistant to continuous contact with hot engine oil, agricultural diesel, and biodiesel.
• Precision Die-Cut 2-Hole Layout: 45 mm hole-to-hole pitch with central aperture ensuring smooth, unobstructed travel for the pump drive lever.
• Airtight and Leak-Proof Sealing: Bridges microscopic surface irregularities between the pump flange and engine block, preventing oil seepage.
• Mandatory Service Component: Critical replacement item to be renewed during every fuel lift pump inspection, servicing, or replacement.

Technical Specifications & OEM References

Machinery Application & Vehicle Compatibility

Manufacturer	Series / Range	Compatible Models (Perkins 3.152 Engine)
Landini	30 / 40 / 60 / 70 Series	5830, 5840, 5860, 5870
Landini	500 / 560 Series	4500, 5500, 6060
Landini	Advantage / Blizzard Series	Advantage 55, Blizzard 50, Blizzard 60
Landini	Crawler Series (Cingolati)	Cingolati C 4500, Cingolati C 5500
Landini	Orchard Series (Frutteti)	Frutteti 4530, Frutteti 4560, Frutteti 5530, Frutteti 5560
Massey Ferguson	100 / 104 Series	133, 135, 148, 154
Massey Ferguson	200 Series	230, 235, 240, 245, 254, 255
Massey Ferguson	500 Series	550

Installation Guidelines and Workshop Notes: Before fitting the new gasket, scrape off all remnants of previous gasket material or silicone sealant from both the pump mounting flange and the Perkins engine block face. Ensure mating surfaces are clean, dry, and flat. Install dry or with a very light smear of fuel/oil-resistant sealant if necessary, making sure not to foul the lever operating cavity. Tighten the pump mounting nuts evenly in alternating stages to guarantee uniform clamping pressure across the entire gasket area.
