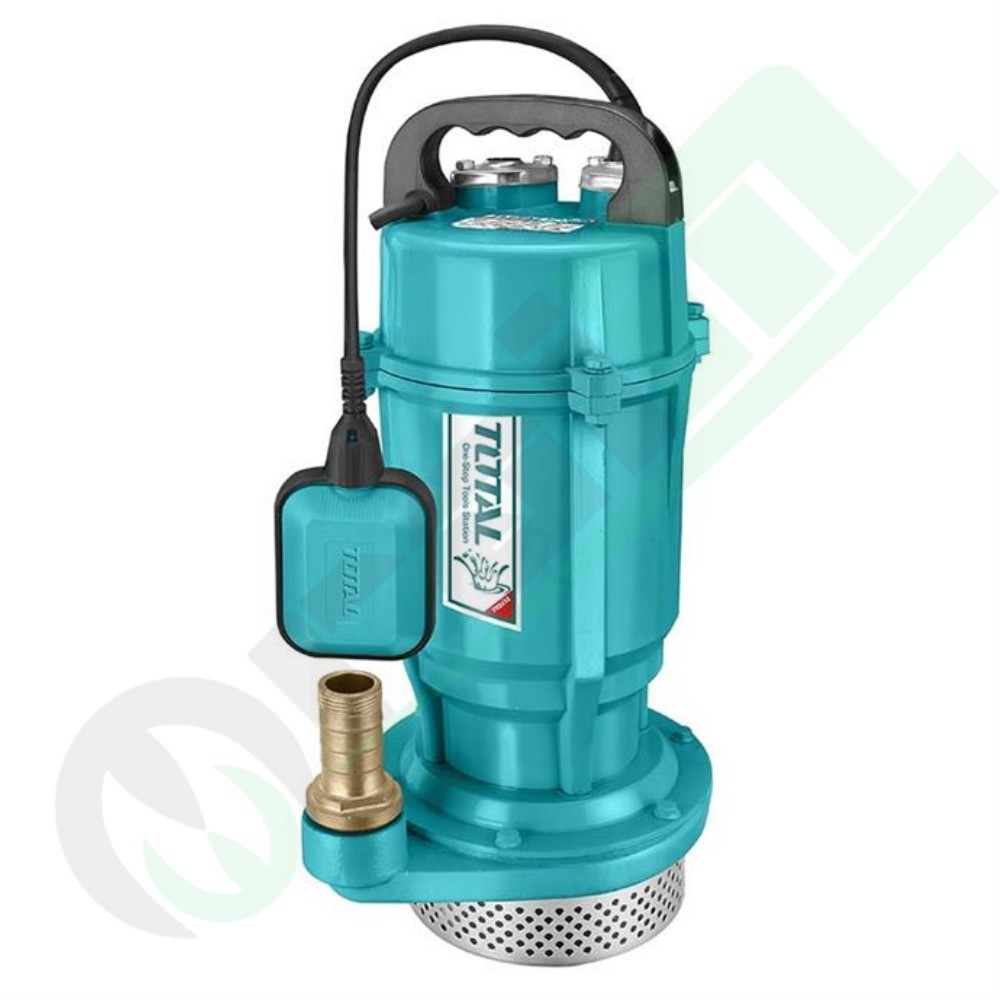

TOTAL 550W Clean Water Submersible Pump TWP65501 - 25m Head Lift
The TOTAL TWP65501 clean water submersible pump is a high-head electromechanical unit engineered for garden irrigation, deep cistern lifting, and efficient water transfer from storage tanks and reservoirs. Powered by a robust 550W (0.75 HP) electric motor featuring 100% copper windings and built-in thermal overload protection, this pump delivers an impressive maximum head lift of 25 meters alongside a consistent flow rate of 1.5 m³/h (25 L/min). Its high-pressure hydraulic stage is specifically designed to overcome substantial elevation differences and feed residential drip lines or sprayers. The integrated automatic float switch provides autonomous level control, starting and stopping the pump reliably to prevent dry running. Complete with a standard 25 mm discharge port and an insulated 9-meter power cable, it offers easy and secure installation in rain tanks, cisterns, and shallow wells.
Key Features and Construction Advantages
- High 25-Meter Head Capability: Purpose-built hydraulic design engineered to overcome significant elevation gradients and maintain continuous delivery pressure over long pipe runs.
- 100% Copper Winding Motor: Delivers superior magnetic efficiency, lower thermal dissipation under continuous duty, and extended operational service life.
- Integrated Thermal Overload Protector: Built-in safety mechanism that automatically disconnects power during thermal spikes or overload conditions to protect the stator.
- Autonomous Level Control Float Switch: Automatically starts and cuts off operation in response to water levels, safeguarding internal bearings and mechanical seals against dry-run wear.
- Standard 25 mm Discharge Outlet: Optimally sized for 1-inch hoses, ensuring efficient water column movement without causing harmful line friction or pressure loss.
Technical Specifications
| Brand / Manufacturer |
TOTAL |
| Commercial Model / Part Number |
TWP65501 |
| Applicable Liquid Type |
Clean, clear water free from abrasive particles and suspended slurry |
| Rated Power Input |
550 W (0.75 HP) |
| Motor Stator Construction |
Copper windings |
| Rated Voltage and Frequency |
220-240 V ~ 50 Hz |
| Maximum Head Lift (H max) |
25 meters |
| Maximum Flow Rate |
1.5 m³/h (25 L/min) |
| Motor Circuit Protection |
Integrated thermal overload cutout |
| Discharge Outlet Diameter |
25 mm (1") |
| Automatic Level Control |
Integrated adjustable float switch |
| Power Cable Length |
9 meters with grounded plug |
Application Areas and Machine Suitability
| Sector / Application Area |
Operational Capabilities & Benefits |
| Garden and Orchard Irrigation |
Directly feeds drip irrigation networks, soaking hoses, and residential lawn sprinklers drawing clear water from storage cisterns. |
| Deep Cistern and Well Lifting |
Lifting clear water up to 25 meters vertical head, ideal for transferring liquid from deep collection sumps to higher holding tanks. |
| Tank and Pool Drainage |
Fast, quiet, and unattended emptying of swimming pools, rain harvest barrels, and water reservoirs during scheduled maintenance. |
Operating Guidelines and Workshop Notes: Never lift, lower, or suspend the pump using the electrical cable or the float switch wire; always secure a dedicated nylon or braided rope to the top carrying eyelet. This pump is strictly engineered for clean water; do not pump mud, sand, slurry, or abrasive sediments that could rapidly wear down the impeller or jam the internal mechanical seal. Verify that the float switch cable has adequate clearance so that it can pivot freely without getting caught against tank walls. Before seasonal storage or in freezing climates, remove the pump from the liquid, drain all remaining water completely, and store the unit in a frost-free environment. Always disconnect the main electrical plug from the socket before performing any maintenance or cleaning the bottom intake screen.
