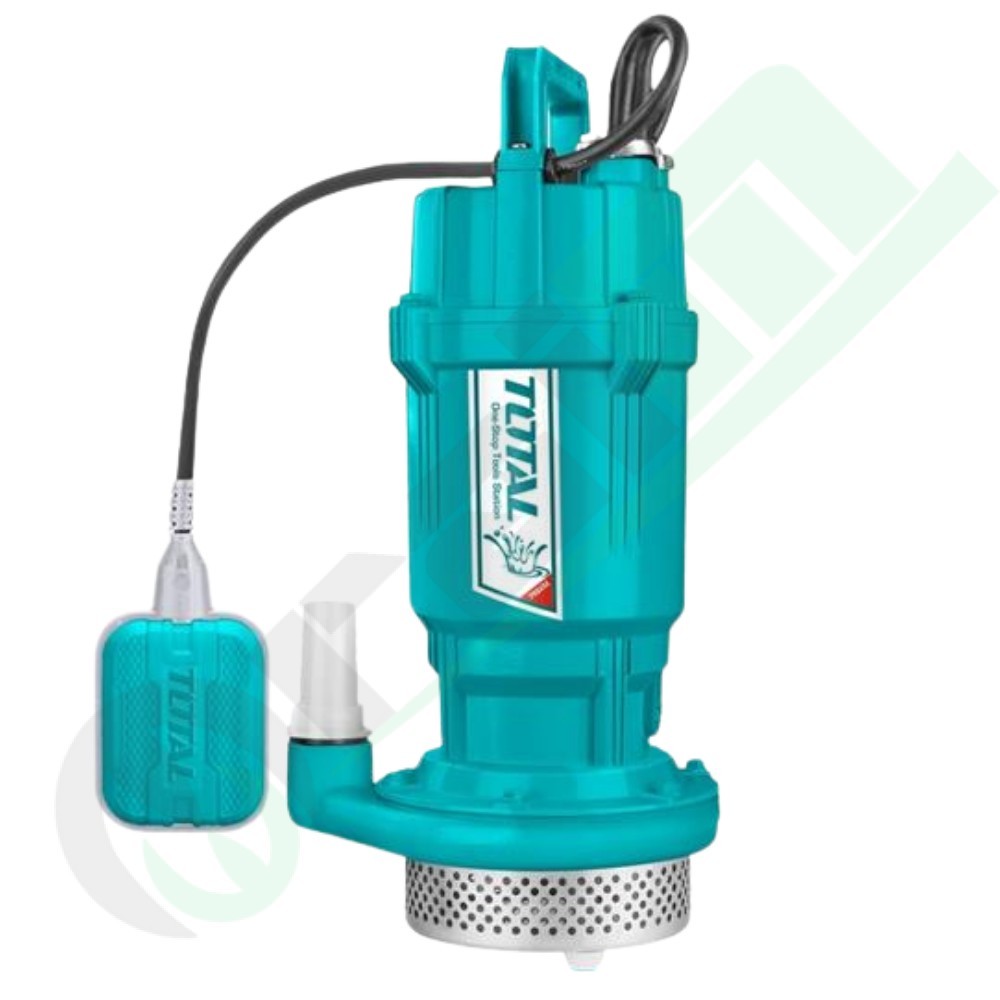

TOTAL 370W Clean Water Submersible Pump TWP63706 - 17m Head Lift
The TOTAL TWP63706 clean water submersible pump is a high-efficiency, compact electromechanical pumping unit engineered for rapid draining, water transfer, and garden irrigation from domestic and agricultural storage tanks. Powered by a dependable 370W (0.5 HP) electric motor with 100% copper windings and equipped with built-in thermal overload protection, this unit delivers an impressive maximum head lift of 17 meters alongside a robust flow capacity of 100 liters per minute (6 m³/h). This hydraulic balance allows it to overcome medium elevation differences and convey clean water efficiently while keeping electrical energy consumption minimal. Fitted with a standard 25 mm discharge outlet and an insulated 9-meter power cable, it enables straightforward and safe installation in storage tanks, rainwater harvesting reservoirs, and shallow wells.
Key Features and Construction Advantages
- High-Efficiency 370W Copper Winding Motor: Superior electrical and thermal conductivity that minimizes power loss, delivering consistent output and long service life.
- Head Capacity up to 17 Meters: Calibrated impeller geometry engineered to handle vertical elevation heads and sustain reliable delivery pressure across pipelines.
- High Flow Output (100 L/min / 6 m³/h): Capable of moving up to 6 cubic meters per hour of clean water, speeding up tank draining and liquid circulation tasks.
- Built-in Thermal Overload Protection: Integrated thermo-amperometric cutout mechanism that protects internal windings against electrical overload and thermal peaks.
- Standard 25 mm Discharge Outlet: Sized for 1-inch hoses and couplers to minimize internal friction and maintain optimal water flow velocity.
Technical Specifications
| Brand / Manufacturer |
TOTAL |
| Commercial Model / Part Number |
TWP63706 |
| Applicable Liquid Type |
Clean, clear water free from sand, silt, and abrasive suspended matter |
| Rated Power Input |
370 W (0.5 HP) |
| Motor Stator Construction |
Copper windings |
| Rated Voltage and Frequency |
220-240 V ~ 50 Hz |
| Maximum Head Lift (H max) |
17 meters |
| Maximum Flow Rate |
100 L/min (6.0 m³/h) |
| Motor Circuit Protection |
Integrated thermal overload cutout |
| Discharge Outlet Diameter |
25 mm (1") |
| Power Cable Length |
9 meters with grounded plug |
Application Areas and Machine Suitability
| Sector / Application Area |
Operational Capabilities & Benefits |
| Garden and Green Area Irrigation |
Supplying water to garden spray lances, mini-sprinklers, and drip irrigation lines drawing clean water from cisterns. |
| Cistern and Well Extraction |
Vertical lifting of clean water up to 17 meters head to transfer liquid to elevated barrels and storage tanks. |
| Basin and Pool Maintenance |
Fast and dependable emptying of above-ground pools, rainwater collection barrels, and holding sumps with a 100 L/min flow rate. |
Operating Guidelines and Workshop Notes: Never suspend, carry, or retrieve the pump by pulling on the power cable; always fasten a strong dedicated rope to the top carrying handle. This pump is strictly engineered for clean water: make sure the liquid being pumped is free from sand, mud, or abrasive residues that could cause premature wear to the impeller or lock the shaft seals. Keep the pump slightly elevated above the floor of the tank or well to avoid drawing in settled sediments. Prior to winter storage, lift the unit out of the liquid, drain all internal water completely, and store in a dry, frost-free room. Always disconnect the main electrical plug from the socket before performing any maintenance, cleaning, or inspection of the intake port.
