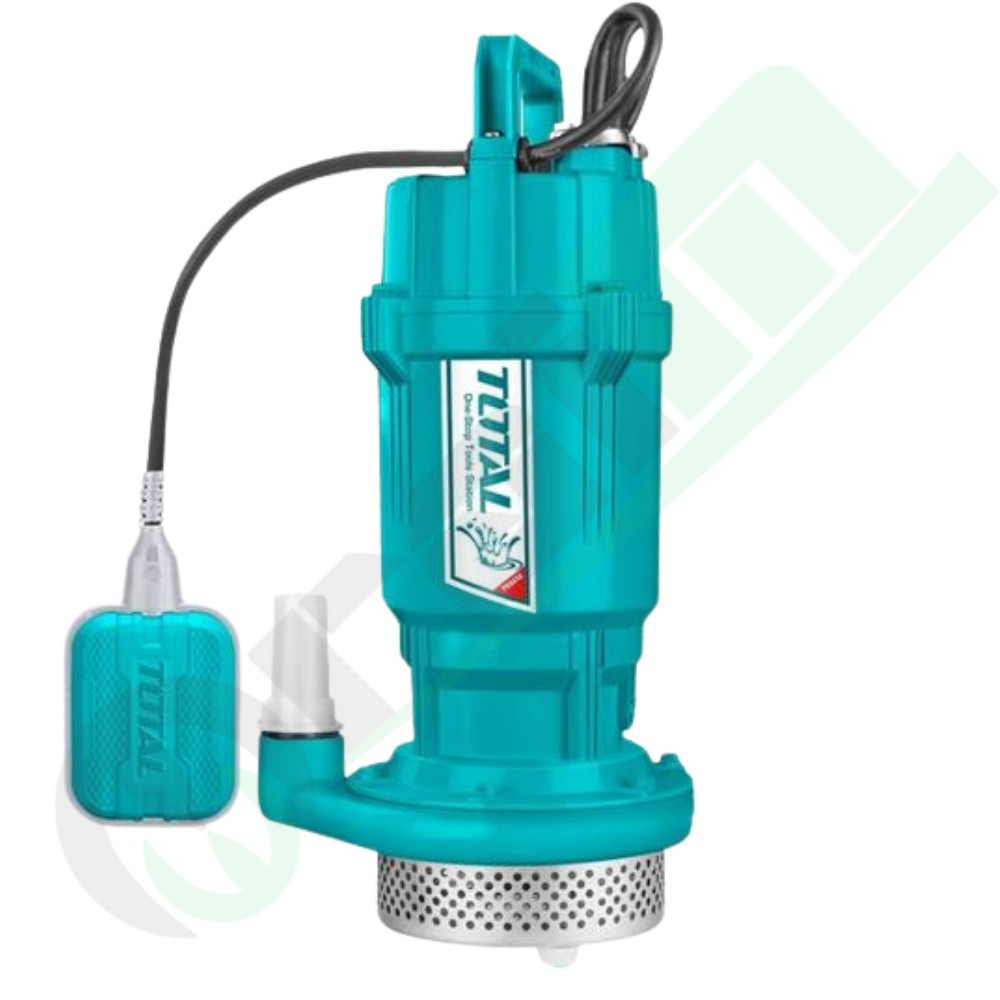

TOTAL 750W Clean Water Submersible Pump TWP67506 - 32m Head Lift
The TOTAL TWP67506 high-head clean water submersible pump is a professional electromechanical pumping unit engineered to deliver outstanding hydraulic performance for deep lifting, rapid liquid transfer, and garden irrigation systems. Powered by a heavy-duty 750W (1.0 HP) electric motor featuring 100% copper windings and built-in thermal overload protection, this machine delivers an extraordinary maximum head lift of 32 meters paired with a high flow capacity of 120 liters per minute (7.2 m³/h). This robust pressure-to-volume ratio enables water delivery across substantial vertical gradients and long horizontal pipelines without performance drops. Complete with a standard 25 mm discharge port and an insulated 9-meter power cord, it ensures dependable and safe operation in wells, rainwater harvesting cisterns, and storage reservoirs.
Key Features and Construction Advantages
- Extraordinary 32-Meter Head Capacity: High-pressure hydraulic design purpose-built to overcome deep vertical lifts and maintain steady flow across extensive delivery lines.
- High Flow Output (120 L/min / 7.2 m³/h): Excellent volumetric displacement enabling rapid emptying of holding basins and full water supply to large irrigation zones.
- 100% Copper Winding Motor: High electrical efficiency and low running temperatures, providing superior mechanical endurance during demanding duty cycles.
- Integrated Thermal Overload Protection: Built-in thermo-amperometric safety system that cuts power in the event of voltage irregularities or motor overheating.
- Standard 25 mm Discharge Port: Perfectly matched for 1-inch hoses, reducing line resistance and preventing friction losses along the discharge column.
Technical Specifications
| Brand / Manufacturer |
TOTAL |
| Commercial Model / Part Number |
TWP67506 |
| Applicable Liquid Type |
Clean, clear water free from sand, silt, and abrasive suspended matter |
| Rated Power Input |
750 W (1.0 HP) |
| Motor Stator Construction |
Copper windings |
| Rated Voltage and Frequency |
220-240 V ~ 50 Hz |
| Maximum Head Lift (H max) |
32 meters |
| Maximum Discharge Rate |
120 L/min (7.2 m³/h) |
| Motor Protection System |
Integrated thermal overload cutout |
| Discharge Outlet Diameter |
25 mm (1") |
| Power Cable Length |
9 meters with grounded plug |
Application Areas and Machine Suitability
| Sector / Application Area |
Operational Capabilities & Benefits |
| Agricultural Irrigation & Landscaping |
Directly supplies water to overhead impact sprinklers, drip networks, and irrigation solenoid manifolds drawing clean water from reservoirs. |
| Deep Well and Cistern Extraction |
High vertical head of 32 meters allows continuous lifting from deep rain cisterns, delivery to elevated tanks, and uphill pipeline runs. |
| Rapid Water Transfer & Drainage |
Accelerated transfer of clean water between storage reservoirs, swimming pools, and collection basins with a flow rate up to 120 L/min. |
Operating Guidelines and Workshop Notes: Never suspend, carry, or retrieve the pump by pulling on the power cable; always fasten a strong dedicated nylon or stainless rope to the top suspension eyelet. This pump is strictly engineered for clean water: ensure the pumped liquid is free from sand, silt, or abrasive matter that could cause premature impeller wear or lock the motor shaft. Keep the pump slightly elevated above the floor of the tank or well to prevent bottom sediments from entering the intake suction. Prior to winter storage, lift the unit from the well, drain all internal liquid completely, and store in a dry, frost-free room. Always disconnect the main electrical plug from the socket before performing any maintenance, inspection, or cleaning of the suction grid.
