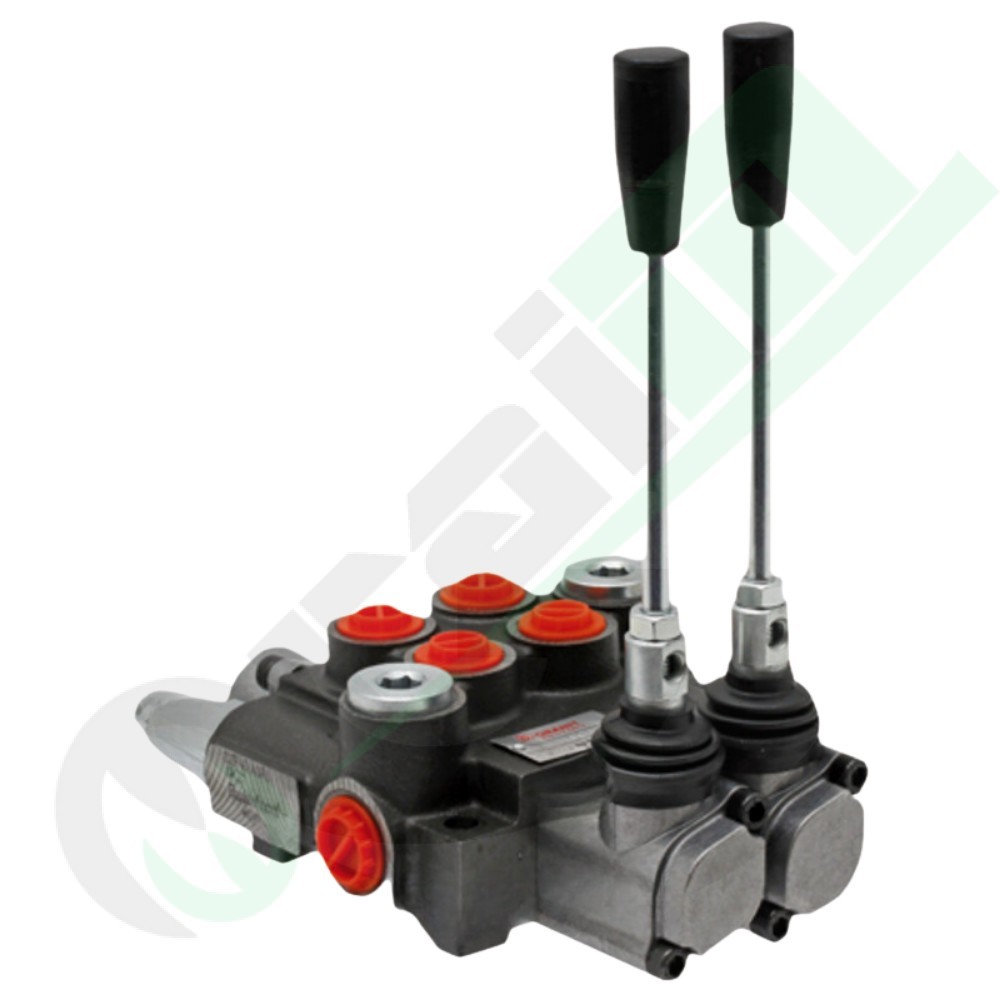

GRANIT Z50 Control Valve 2-Bank Double Acting Spring Return Carry-Over Ready Code 87001365

GRANIT Z50 series 2-lever monobloc control valve for double-acting cylinders. This model is pre-arranged for Carry-Over (power beyond), but configured for direct tank return, ideal for those seeking a component ready for future system expansions.

Product Description

The GRANIT Z50 distributor (Part No. 87001365) is a 4/3-way spring-return valve designed to manage two double-acting functions. The uniqueness of the "GKZ1C2" reference lies in its versatility: the valve body is machined to house a Carry-Over sleeve, but it is delivered with this function inactive. This means the distributor can be used immediately in a standard open-center system and, if needed in the future, it can be converted to feed a second downstream valve block by simply installing the specific plug. Constructed from high-strength cast iron, it ensures a flow rate of 40 l/min and includes an adjustable relief valve (120-250 bar) for circuit safety.

Technical Data & Dimensions
