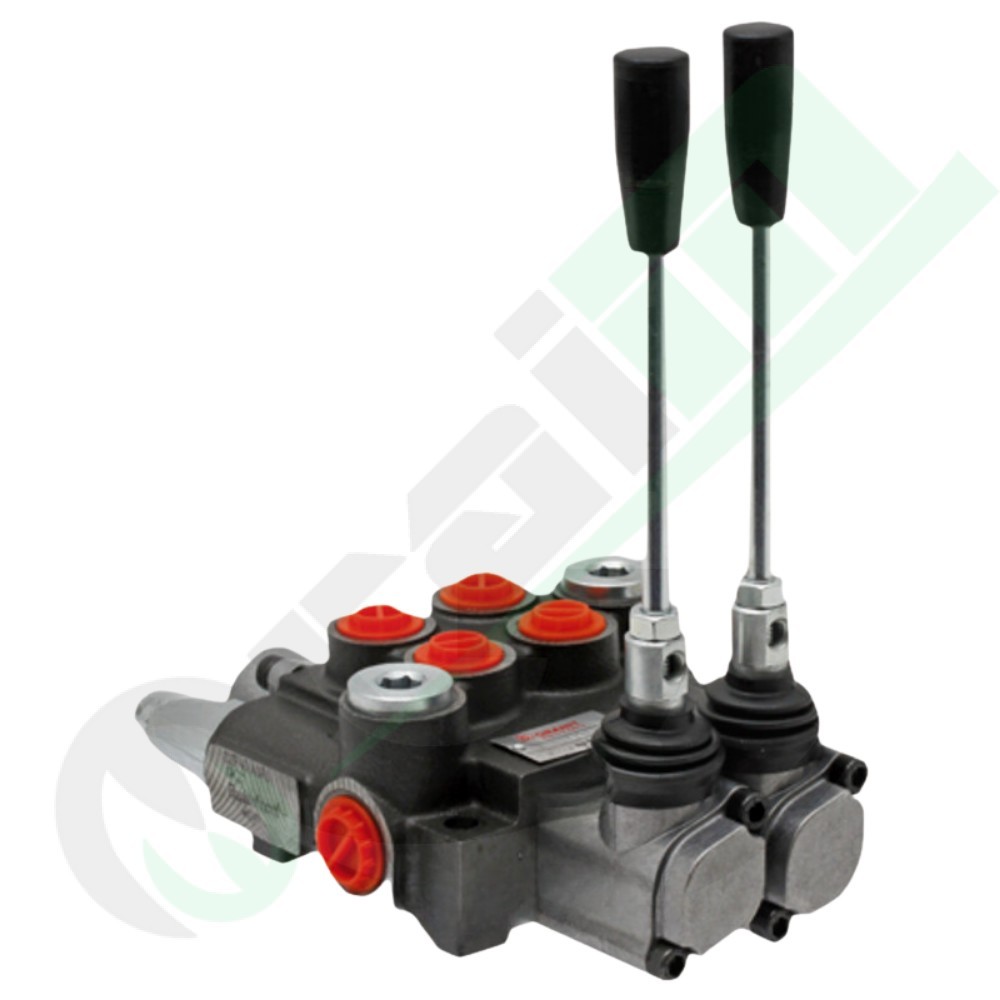

GRANIT Z50 Control Valve 2-Bank Double Acting with 1 Floating Position Code 87000930

GRANIT Z50 series monobloc control valve, 2-lever configuration. It features a special float position on the first lever, allowing the cylinder to move freely to follow ground contours.

Product Description

The GRANIT Z50 distributor (Part No. 87000930) is a 4/3-way valve designed for controlling two double-acting functions. The distinguishing feature of this model is the fourth position (float position) on the first lever: in this mode, both cylinder chambers are connected to the tank, allowing the piston rod to extend or retract under external forces. The second lever operates as a standard double-acting function with spring return to center. Built from high-strength monobloc cast iron, the valve includes an adjustable relief valve (120-250 bar) and ensures a constant flow rate of up to 40 l/min. The oversized 1/2" inlet and outlet ports optimize the system's thermal efficiency.

Technical Data & Dimensions
