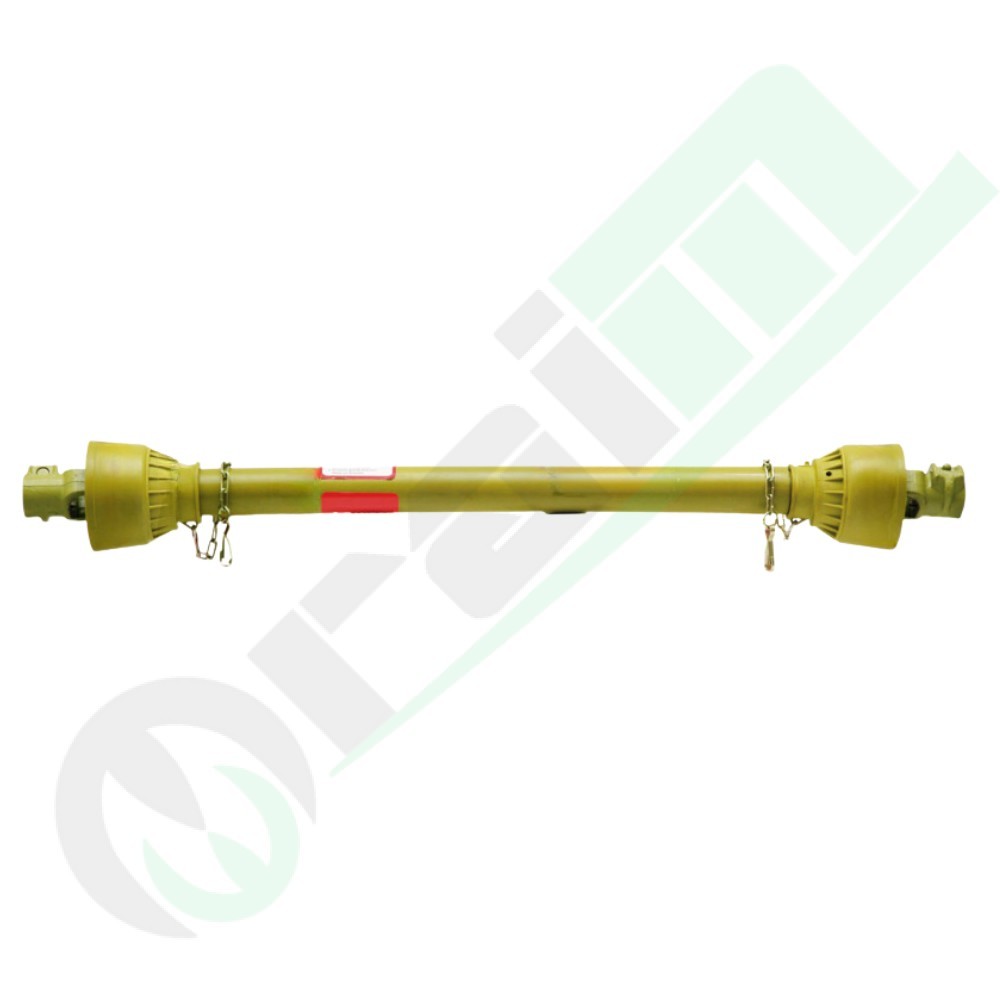

BLUELINE 37746021912 PTO Shaft Series F21 460mm

37746021912 BLUELINE PTO Drive Shaft Series F21 Lz 460mm for Tractors up to 16HP

Reference : 37746021912

BLUELINE F21 Series PTO Drive Shaft - L 460mm (Code 37746021912)

Hurry! only 4 items left in stock.

€79.00

Tax included

Quantity

Last 4 items

Add to Compare

Add to Wishlist

Security Policy

Secure Shopping. Data protected with encryption. Your privacy is our priority!

Shipping Policy

Fast & Reliable Shipping. Orders handled with care. Various options available.

Secure Payments

Secure Payments! Transactions protected by encryption. Your safety is guaranteed.

Guarantee safe checkout

The BLUELINE F21 Series drive shaft (460 mm) is an ultra-compact transmission solution designed for agricultural implements requiring a very short connection. Utilizing the Lemon Profile, this model provides reliable torque transfer for light-duty machinery such as PTO-driven pumps, small spreaders, or specialized vineyard equipment. With a nominal torque of 210 Nm, it combines safety with a space-saving design.

Technical Specifications

Part Number: 37746021912

Series: F21 (Standard Version)

Total Length (Lz): 460 mm

Profile A (Tractor Side): 1 3/8" 6 Splines

Profile B (Implement Side): 1 3/8" 6 Splines

Cross Kit Dim. (Profile A/B): 22 x 54.8 mm

Locking System: Push-button / Push-button (G1/G2 Coupling)

Tube Profile: Lemon Profile

Performance Data

Power at 540 rpm: Up to 16 HP (12 kW)

Power at 1000 rpm: Up to 24 HP (18 kW)

Nominal Torque (540 rpm): 210 Nm

Nominal Torque (1000 rpm): 170 Nm

Operating instructions are included. For very short shafts, verify that there is enough telescopic travel to accommodate the implement's movement without bottoming out the tubes.
