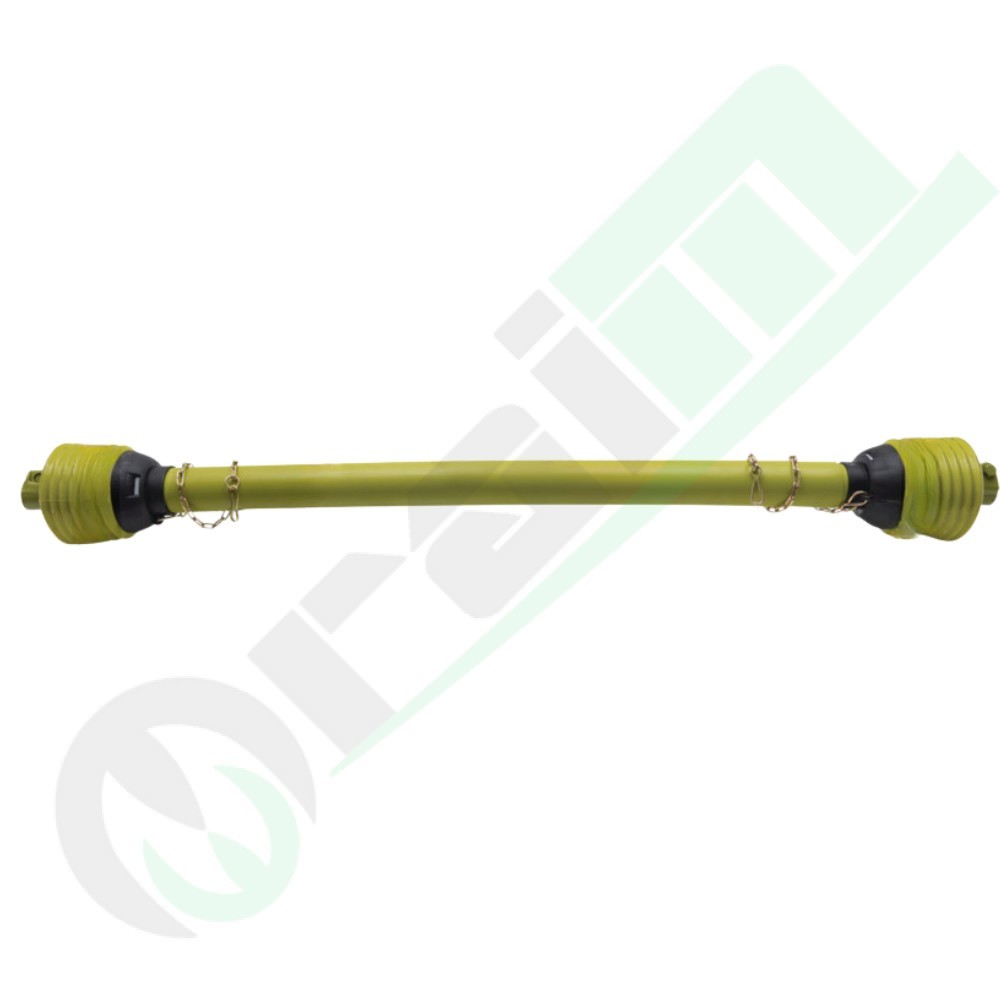

BLUELINE 377377249 PTO Shaft Series F22 1210mm

377377249 BLUELINE PTO Shaft Series F22 Lz 1210mm Yoke Ø 25mm and 1 3/8" Z6

Blueline
377377249

BLUELINE F22 Series PTO Drive Shaft - L 1210mm (Code 377377249)

Hurry! only 3 items left in stock.
€144.90
Tax included
Quantity

Ready for delivery
Add to Compare
Add to Wishlist
  Security Policy

Secure Shopping. Data protected with encryption. Your privacy is our priority!

  Shipping Policy

Fast & Reliable Shipping. Orders handled with care. Various options available.

  Secure Payments

Secure Payments! Transactions protected by encryption. Your safety is guaranteed.

The BLUELINE F22 Series drive shaft (1210 mm) is a high-quality transmission component designed for medium-duty agricultural applications. It features a specialized 25 mm bore hub yoke (Profile A) with a clamping bolt and 8 mm keyway for secure, permanent mounting on smooth driven shafts. Equipped with reinforced 24 x 61 mm cross kits and the reliable Lemon Profile, it delivers a nominal torque of 350 Nm over extended lengths.

Technical Specifications

Part Number: 377377249

Series: F22 (Standard Version)

Total Length (Lz): 1210 mm

Profile A (Implement Side): Ø 25 mm, hub with clamping bolt and 8 mm keyway

Profile B (Tractor Side): 1 3/8" 6 Splines

Cross Kit Dim. (Profile A/B): 24 x 61 mm

Locking System: Push-button / Clamping bolt (G3/G4 Coupling)

Tube Profile: Lemon Profile

Performance Data

Power at 540 rpm: Up to 27 HP (20 kW)

Power at 1000 rpm: Up to 40 HP (30 kW)

Nominal Torque (540 rpm): 350 Nm

Nominal Torque (1000 rpm): 285 Nm

Operating instructions are included. For the 25 mm hub attachment, ensure the keyway is properly aligned and the clamping bolt is tightened according to safety standards to prevent shaft slippage under load.
