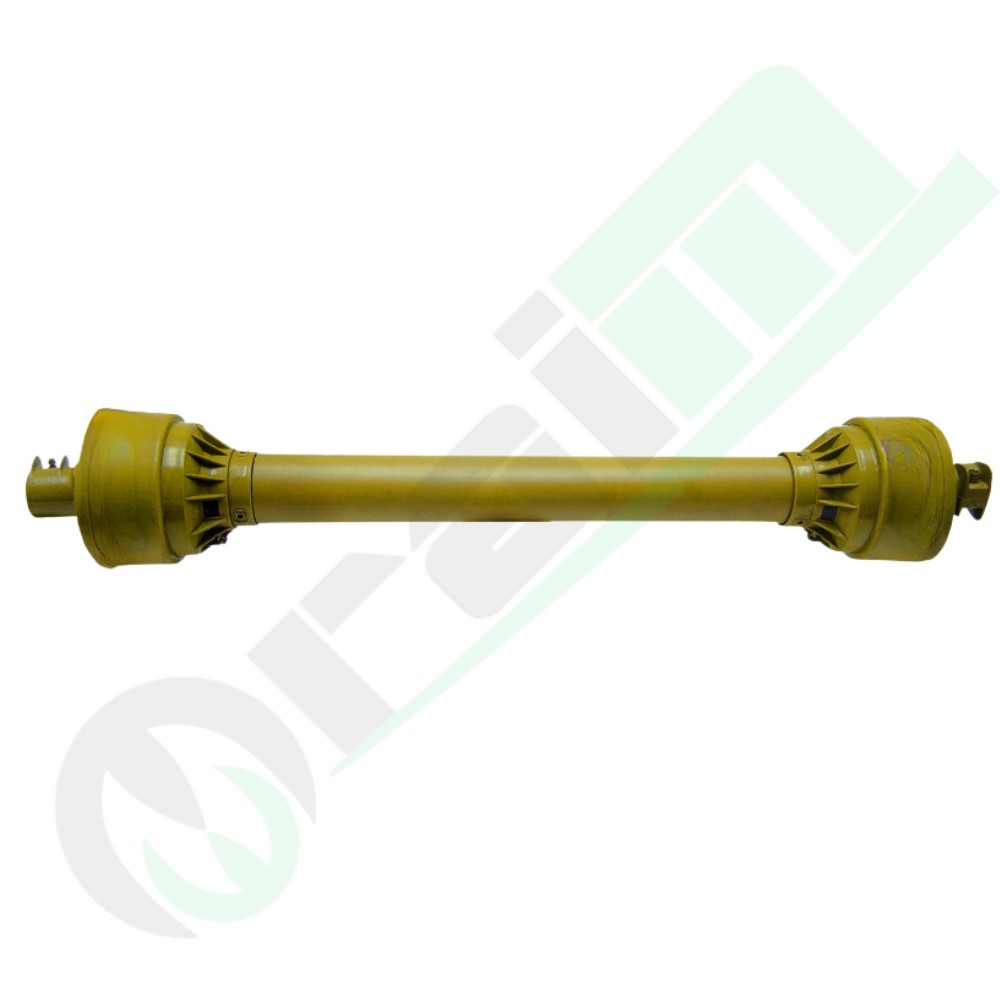

BLUELINE 377101024956 PTO Shaft Series F24 1010mm

377101024956 BLUELINE PTO Drive Shaft Series F24 Lz 1010mm for Tractors up to 53HP

Blueline
377101024956

BLUELINE F24 Series PTO Drive Shaft - L 1010mm (Code 377101024956)

Hurry! only 3 items left in stock.
€155.00
Tax included
Quantity

Ready for delivery
Add to Compare
Add to Wishlist
  Security Policy

Secure Shopping. Data protected with encryption. Your privacy is our priority!

  Shipping Policy

Fast & Reliable Shipping. Orders handled with care. Various options available.

  Secure Payments

Secure Payments! Transactions protected by encryption. Your safety is guaranteed.

The BLUELINE F24 Series drive shaft (1010 mm) is a professional-grade transmission component engineered for heavy-duty agricultural operations. Featuring robust 32 x 76 mm universal joints and G5/G6 coupling, it is built to sustain a nominal torque of 690 Nm. The Lemon Profile telescopic tubes provide high torsional rigidity over a one-meter reach, making it ideal for heavy rotary harrows, large-scale manure spreaders, and industrial-sized chippers.

Technical Specifications

Part Number: 377101024956

Series: F24 (Standard Version)

Total Length (Lz): 1010 mm

Profile A (Tractor Side): 1 3/8" 6 Splines

Profile B (Implement Side): 1 3/8" 6 Splines

Cross Kit Dim. (Profile A/B): 32 x 76 mm

Locking System: Push-button / Push-button (G5/G6 Coupling)

Tube Profile: Lemon Profile

Performance Data

Power at 540 rpm: Up to 53 HP (39 kW)

Power at 1000 rpm: Up to 83 HP (61 kW)

Nominal Torque (540 rpm): 690 Nm

Nominal Torque (1000 rpm): 580 Nm

Operating instructions are included. For high-torque 1010 mm shafts, always verify proper telescopic overlap and that safety chains are secured to prevent the guard from spinning, ensuring safe and efficient power delivery under heavy load.
