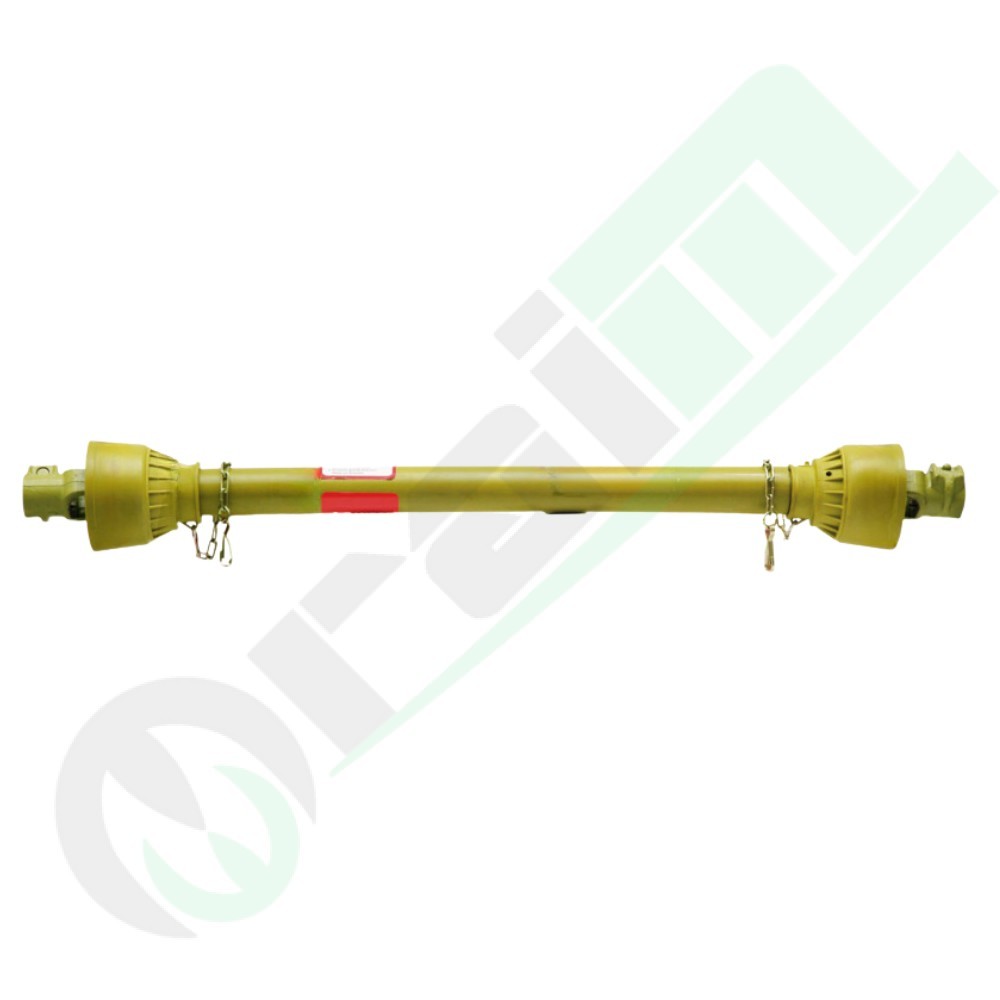

BLUELINE 377121022912 PTO Shaft Series F22 1210mm

377121022912 BLUELINE PTO Drive Shaft Series F22 Lz 1210mm for Tractors up to 27HP

Blueline
377121022912

BLUELINE F22 Series PTO Drive Shaft - L 1210mm (Code 377121022912)

Hurry! only 1 items left in stock.
€149.00
Tax included
Quantity

Last items in stock
Add to Compare
Add to Wishlist
  Security Policy

Secure Shopping. Data protected with encryption. Your privacy is our priority!

  Shipping Policy

Fast & Reliable Shipping. Orders handled with care. Various options available.

  Secure Payments

Secure Payments! Transactions protected by encryption. Your safety is guaranteed.

The BLUELINE F22 Series drive shaft (1210 mm) is a heavy-duty transmission component designed for medium-power agricultural machinery requiring an extended reach. Featuring 24 x 61 mm cross kits and the reliable Lemon Profile, it delivers up to 350 Nm of nominal torque. This model is perfectly suited for implements such as flail mowers, large tedders, and planters that need significant clearance from the tractor.

Technical Specifications

Part Number: 377121022912

Series: F22 (Standard Version)

Total Length (Lz): 1210 mm

Profile A (Tractor Side): 1 3/8" 6 Splines

Profile B (Implement Side): 1 3/8" 6 Splines

Cross Kit Dim. (Profile A/B): 24 x 61 mm

Locking System: Push-button / Push-button (G3/G4 Coupling)

Tube Profile: Lemon Profile

Performance Data

Power at 540 rpm: Up to 27 HP (20 kW)

Power at 1000 rpm: Up to 40 HP (30 kW)

Nominal Torque (540 rpm): 350 Nm

Nominal Torque (1000 rpm): 285 Nm

Operating instructions are included. For 1210 mm shafts, always ensure proper telescopic tube overlap and secure the safety chains to rigid points to prevent accidental disconnection or excessive vibration under load.
