BLUELINE 377101023934 PTO Shaft Series F23 1010mm

377101023934 BLUELINE PTO Drive Shaft Series F23 Lz 1010mm for Tractors up to 35HP

Blueline
377101023934

BLUELINE F23 Series PTO Drive Shaft - L 1010mm (Code 377101023934)

Hurry! only 2 items left in stock.
€135.00
Tax included
Quantity

Last items in stock
Add to Compare
Add to Wishlist
  Security Policy

Secure Shopping. Data protected with encryption. Your privacy is our priority!

  Shipping Policy

Fast & Reliable Shipping. Orders handled with care. Various options available.

  Secure Payments

Secure Payments! Transactions protected by encryption. Your safety is guaranteed.

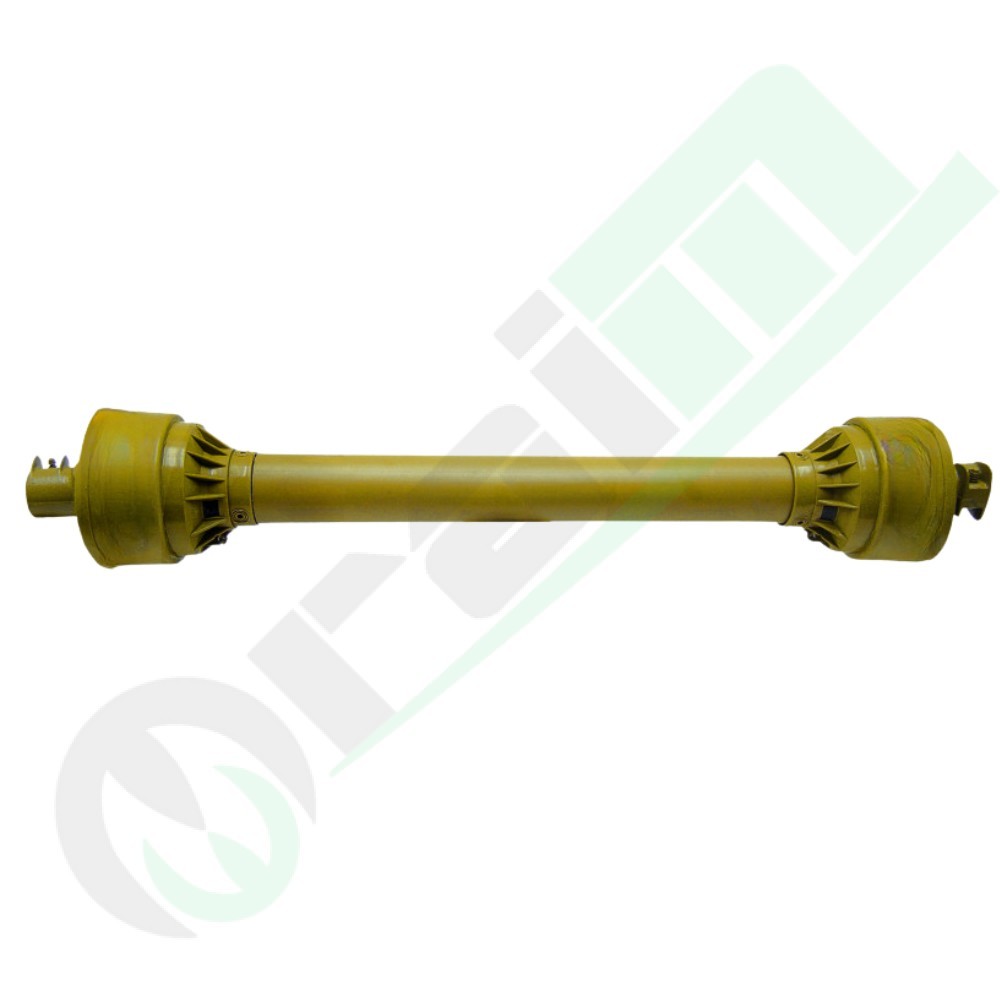

The BLUELINE F23 Series drive shaft (1010 mm) is a high-performance transmission component designed for demanding agricultural tasks. Featuring reinforced 27 x 74.6 mm universal joints and a nominal torque rating of 460 Nm, it provides reliable power transfer for medium-to-high capacity machinery requiring an extended reach. The Lemon Profile telescopic tubes ensure excellent torsional strength for implements such as professional flail mowers and large mist blowers.

Technical Specifications

Part Number: 377101023934

Series: F23 (Standard Version)

Total Length (Lz): 1010 mm

Profile A (Tractor Side): 1 3/8" 6 Splines

Profile B (Implement Side): 1 3/8" 6 Splines

Cross Kit Dim. (Profile A/B): 27 x 74.6 mm

Locking System: Push-button / Push-button (G3/G4 Coupling)

Tube Profile: Lemon Profile

Performance Data

Power at 540 rpm: Up to 35 HP (26 kW)

Power at 1000 rpm: Up to 53 HP (39 kW)

Nominal Torque (540 rpm): 460 Nm

Nominal Torque (1000 rpm): 370 Nm

Operating instructions are included. For 1-meter shafts, always ensure proper telescopic tube overlap and secure the safety chains to rigid mounting points to prevent accidental disconnection or excessive vibration under high torque.
