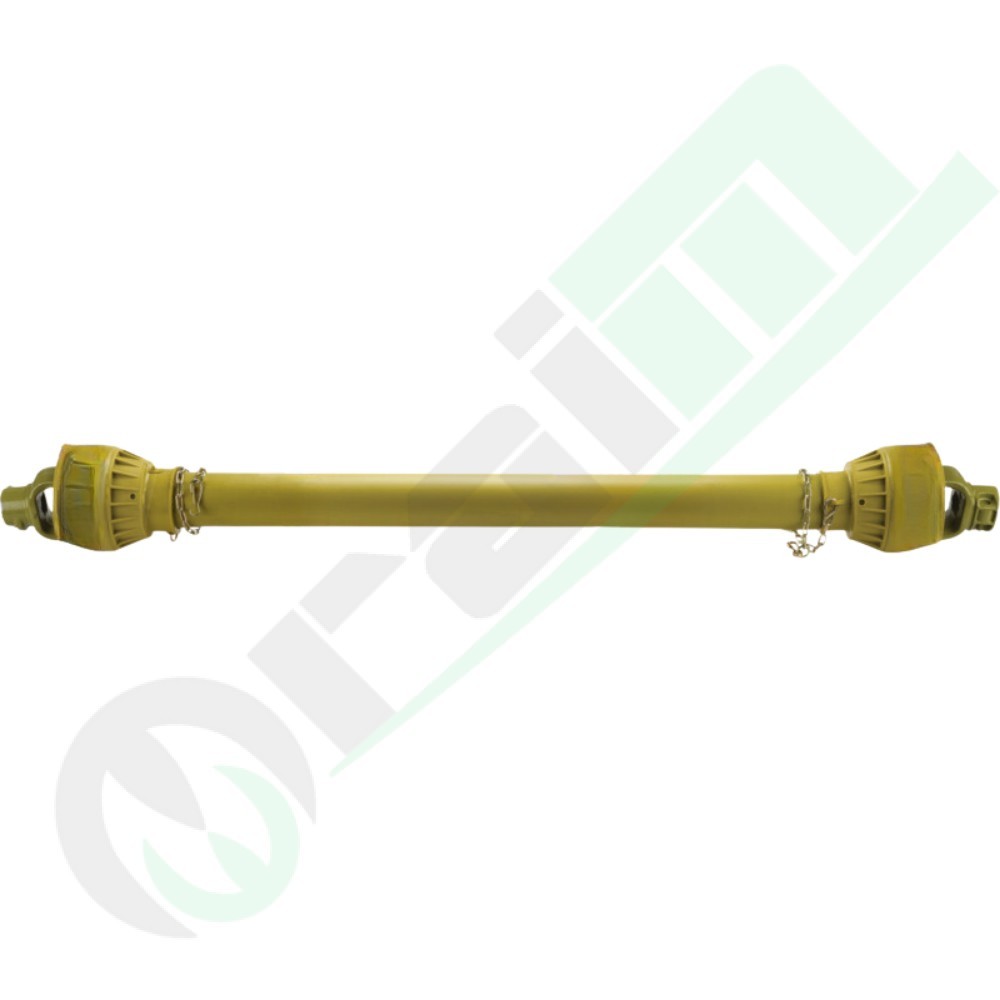

BLUELINE 377377430 PTO Shaft Series F25 560mm

377377430 BLUELINE PTO Drive Shaft Series F25 Lz 560mm for Tractors up to 90HP

Blueline
377377430

BLUELINE F25 Series PTO Drive Shaft - L 560mm (Code 377377430)

Hurry! only 3 items left in stock.
€259.90
Tax included
Quantity

Ready for delivery
Add to Compare
Add to Wishlist
  Security Policy

Secure Shopping. Data protected with encryption. Your privacy is our priority!

  Shipping Policy

Fast & Reliable Shipping. Orders handled with care. Various options available.

  Secure Payments

Secure Payments! Transactions protected by encryption. Your safety is guaranteed.

The BLUELINE F25 Series drive shaft (560 mm) is a high-performance transmission component engineered for heavy-duty industrial agricultural implements. Featuring the advanced Star Profile for maximum surface contact and robust 36 x 89 mm universal joints, it is built to sustain a nominal torque of 1165 Nm. This compact model is the professional's choice for forestry mulchers, heavy-duty rotary tillers, and any machinery requiring high power delivery from 100+ HP tractors in a short-coupled configuration.

Technical Specifications

Part Number: 377377430

Series: F25 (Standard Version)

Total Length (Lz): 560 mm

Profile A (Tractor Side): 1 3/8" 6 Splines

Profile B (Implement Side): 1 3/8" 6 Splines

Cross Kit Dim. (Profile A/B): 36 x 89 mm

Locking System: Push-button / Push-button (G7/G8 Coupling)

Tube Profile: Star Profile

Performance Data

Power at 540 rpm: Up to 90 HP (66 kW)

Power at 1000 rpm: Up to 140 HP (102 kW)

Nominal Torque (540 rpm): 1165 Nm

Nominal Torque (1000 rpm): 970 Nm

Operating instructions are included. For F25 series shafts, the high torque levels necessitate frequent greasing of the 36 mm cross kits and careful inspection of the safety guards to ensure operator safety and component longevity.
