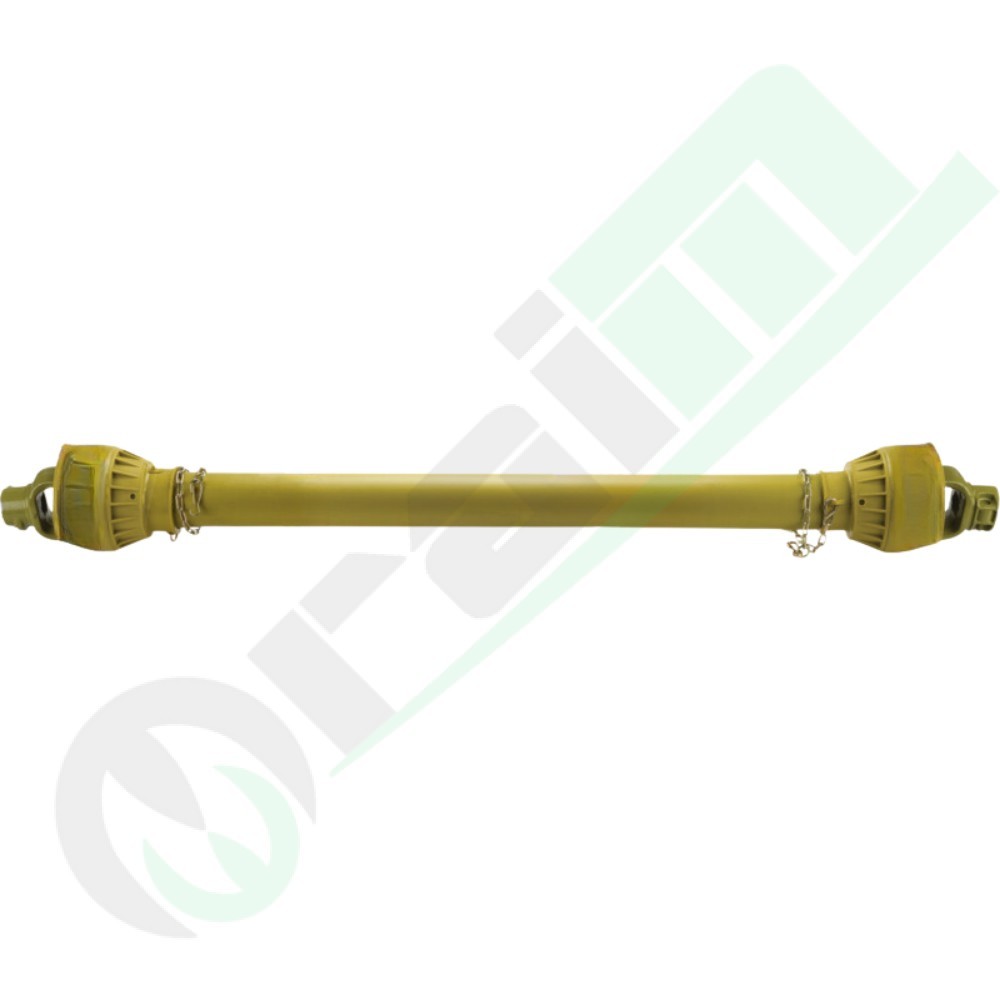

BLUELINE 377377432 PTO Shaft Series F25 860mm

377377432 BLUELINE PTO Drive Shaft Series F25 Lz 860mm for Tractors up to 90HP

Blueline
377377432

BLUELINE F25 Series PTO Drive Shaft - L 860mm (Code 377377432)

Hurry! only 2 items left in stock.
€289.90
Tax included
Quantity

Last items in stock
Add to Compare
Add to Wishlist
  Security Policy

Secure Shopping. Data protected with encryption. Your privacy is our priority!

  Shipping Policy

Fast & Reliable Shipping. Orders handled with care. Various options available.

  Secure Payments

Secure Payments! Transactions protected by encryption. Your safety is guaranteed.

The BLUELINE F25 Series drive shaft (860 mm) is a high-performance transmission component designed for heavy-duty agricultural operations. Featuring the advanced Star Profile for superior torsional strength and massive 36 x 89 mm universal joints, it provides a nominal torque of 1165 Nm. This model is perfect for professional rotary harrows, large flail mowers, and diet feeders requiring reliable power delivery from high-horsepower tractors.

Technical Specifications

Part Number: 377377432

Series: F25 (Standard Version)

Total Length (Lz): 860 mm

Profile A (Tractor Side): 1 3/8" 6 Splines

Profile B (Implement Side): 1 3/8" 6 Splines

Cross Kit Dimension (A/B): 36 x 89 mm

Locking System: Push-button / Push-button (G7/G8 Coupling)

Tube Profile: Star Profile

Performance Data

Power at 540 rpm: Up to 90 HP (66 kW)

Power at 1000 rpm: Up to 140 HP (102 kW)

Nominal Torque (540 rpm): 1165 Nm

Nominal Torque (1000 rpm): 970 Nm

Operating instructions are included. For high-torque F25 shafts, regular greasing of the cross kits is mandatory to ensure durability and prevent overheating during intense work sessions.
