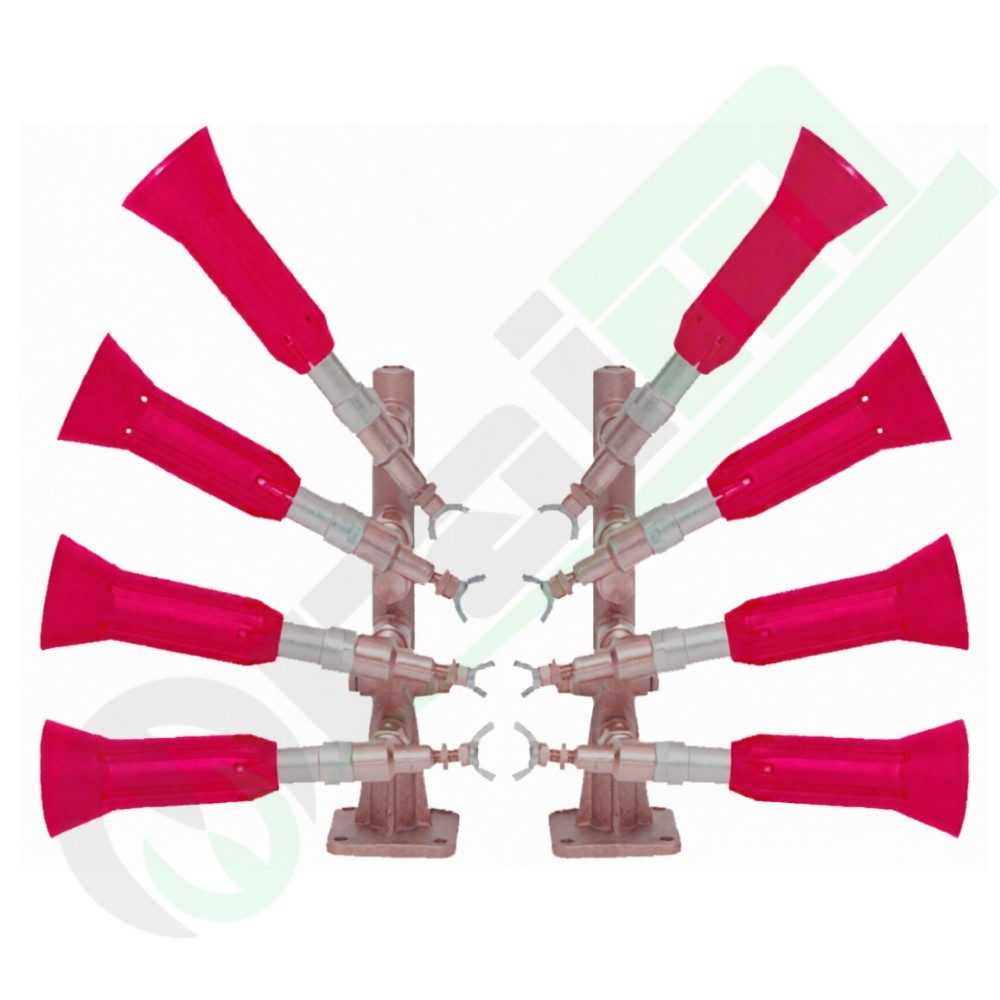

Articulated Stainless Steel Spray Boom Column 4+4 Jets - Code 26231
The professional-grade spray boom column with integrated articulated joint (Product Code: 26231), engineered as a direct structural match adaptable to OEM part number 004123, is a high-precision fluid-dynamic assembly developed for agrochemical applications and crop protection. Engineered specifically for air-blast orchard sprayers, vineyard atomizers, and high vertical canopy boom arrays, this column delivers exceptional fluid micronization and targeted delivery, locking onto the foliage wall while suppressing chemical drift drop-offs.
Design Details and Fluid-Dynamic Engineering
This technical spray column is fully manufactured from high-grade Stainless Steel (INOX), a premium material selection that guarantees total immunity against galvanic oxidation, corrosion, and the chemical breakdown triggered by concentrated pesticides or aggressive liquid fertilizers. The fluid distribution grid follows a 4+4 way infrastructure (totaling 8 distribution spray points), meticulously balanced to establish a symmetrical, uniform pattern across tall or high-density target crop canopies. The technical core of the assembly incorporates specialized "Microjet" rose-pattern mist nozzles, fitted with technical ceramic orifice discs featuring a calibrated 1.5 mm diameter hole. Technical ceramic yields structural abrasion resistance far superior to brass or plastic alternatives, ensuring long-term retention of the pre-set spray angle, flow constants, and droplet micronization metrics. The integrated mechanical swivel joint gives operators full field flexibility to adjust the geometrical inclination of the vertical column, tailoring the spray projection angle to matching canopy contours or row spacing parameters.
Technical Specifications
| Component Classification |
Vertical fluid spray column / boom assembly with adjustable swivel joint |
| Fluid Distribution Layout |
4 + 4 independent spray outlets (8 jets total grid) |
| Nozzle Atomization Pattern |
"Microjet" series rose-pattern multidirectional mist spray |
| Nozzle Material & Diameter |
Heavy-duty technical ceramic (1.5 mm orifice Ø scale) |
| Column Structural Material |
Stainless Steel (INOX – premium chemical and rust defense) |
| OEM Cross Compliance |
Adaptable to original equipment factory code: 004123 |
| Product Reference Code |
26231 |
Operational Guidelines and Field Maintenance Advantages
- Swivel Articulation Setup: Utilize the mechanical hardware joint to lock in the ideal column angle relative to the crop rows. Secure the locking fasteners completely to avoid positional shift caused by heavy machine vibration loops or high fluid backpressure spikes.
- Microjet Ceramic Longevity: The 1.5 mm technical ceramic insert withstands intense high-pressure operational cycles without suffering geometric bore enlargement. This locks in steady volume-per-hectare targets, eliminating accidental over-application faults.
- End-of-Season Flush Protocol: Run a systematic clear-water purge loop through the line following the application of wettable powders or seasonal chemicals. The Stainless Steel pipeline layout prevents internal scale and rust buildup, keeping the 4+4 fluid passages completely unobstructed.
