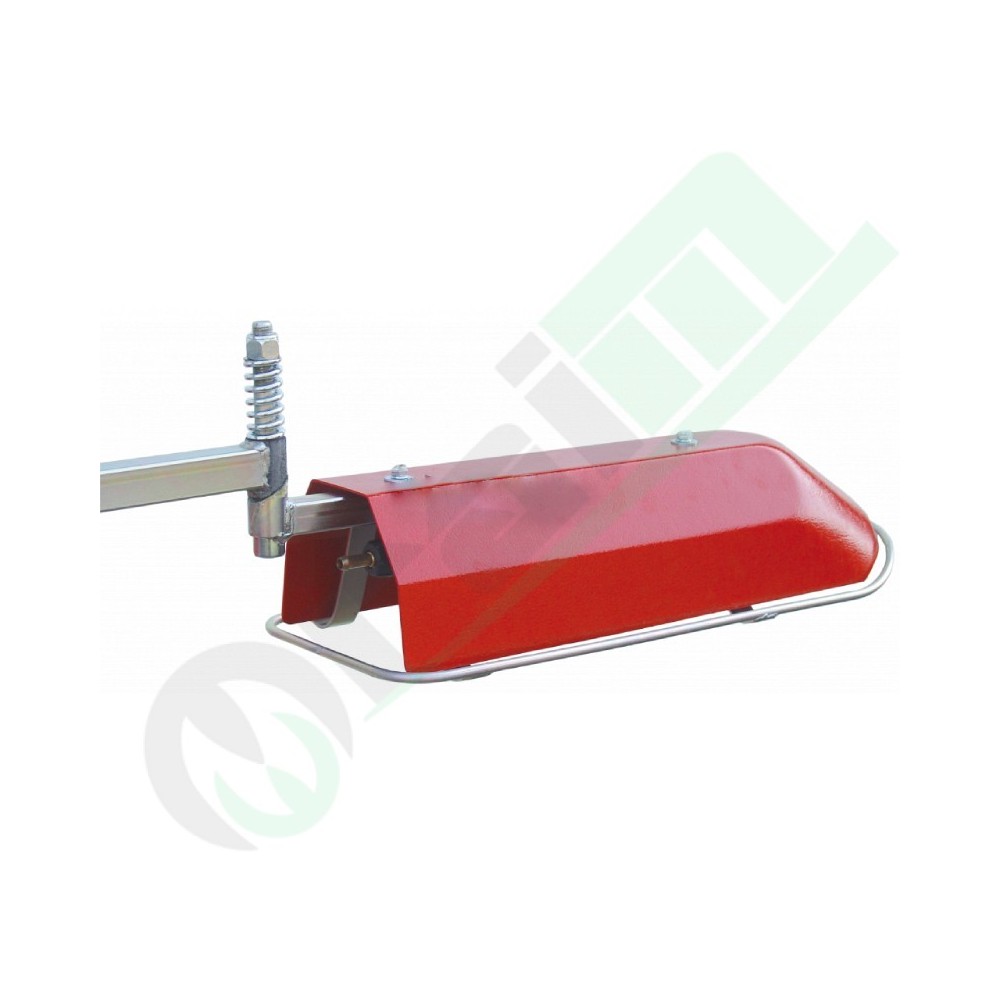

Articulated Hooded Inter-Row Spray Boom End Section 40 cm - Code 26890

The professional-grade articulated inter-row spray boom end section (Product Code: 26890) is a specialized mechanical and fluid-dynamic component engineered to complete localized weed-spraying booms in vineyards, orchards, and row crops. Featuring a built-in spring-loaded safety pivot and a 40 cm protective drift-shielding hood, this terminal assembly enables high-precision herbicide application immediately adjacent to crop rows and plant bases without risking physical damage to tree trunks, while isolating the atomized chemical spray pattern from ambient winds.

Design Details and Self-Resetting Anti-Shock Mechanism

The foundational engineering feature of the 26890 end section lies within its flexible swivel joint assembly, backed by a heavy-duty mechanical return spring. This anti-shock setup allows the shielded canopy to swing back elastically and pivot away upon making physical contact with tree stalks, vine bases, or solid field obstacles, automatically resetting to its original operating layout once the obstruction is cleared. The structural mounting sleeve is engineered to clamp securely onto standard 30x30 mm square profile toolbar frames. The integrated anti-drift containment dome houses a single high-efficiency spray jet layout (1 internal nozzle body holder) and features an ultra-slim profile: it delivers a total terminal section length of 40 cm combined with a narrow structural body width of just 23.5 mm, a compact geometry that facilitates unhindered travel through tightly spaced row paths or dense undergrowth.

Technical Specifications

Installation Guidelines and Field Maintenance

• Toolbar Assembly Binding: Slide the mounting sleeve onto the 30x30 mm square arm of the primary inter-row spray boom. Tighten the clamping hardware completely, ensuring that the safety pivot hinge remains entirely unhindered to execute its breakout safety cycle.
• Anti-Drift Field Alignment: Verify that the protective canopy outline sits parallel to the ground surface. The 40 cm technical hood must serve as a completely enclosed chamber to catch atomized mist particles, preventing chemical drift onto sensitive green foliage or crop root collars.
• Spring Cluster Maintenance: Periodically inspect the tension rate of the mechanical return spring assembly. Clean the swivel hinge interface to eliminate mud, dirt, or field trash accumulation, preserving optimal anti-shock breakaway sensitivity.
