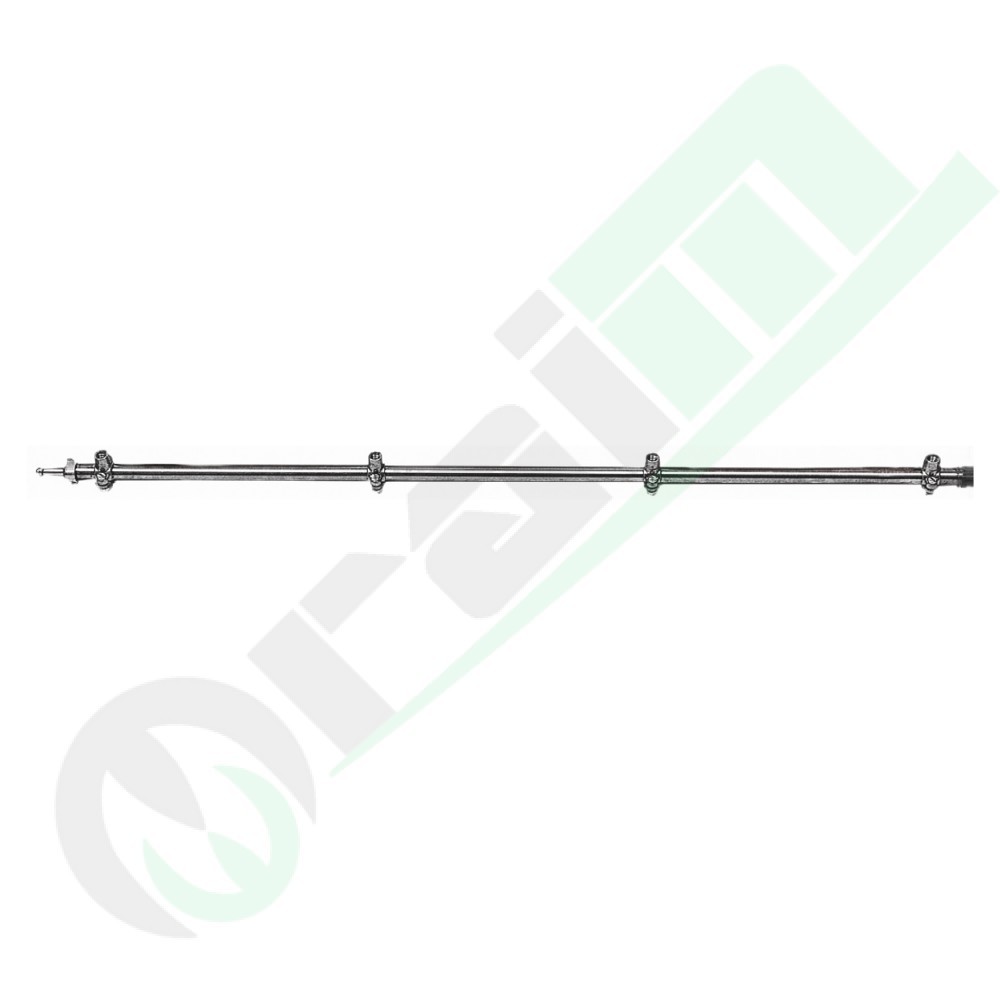

Stainless Steel Nozzle Holder Spray Rail 1/2" with 4 U-Clamps (80 cm) - Code 25058
The professional-grade 1/2" Stainless Steel nozzle holder spray rail (Product Code: 25058) is a heavy-duty structural and fluid-dynamic manifold segment engineered for the custom building, repair, or expansion of distribution lines on boom sprayers, weeding rigs, and orchard atomizers. Supplied in a bare nozzle-free configuration, this pre-arranged steel pipeline delivers a rigid and highly durable foundation for mounting clamp-on nozzle bodies, optimizing fluid supply loops during precision farming chemical applications.
Design Details and Mounting Architecture
This pipeline segment is fully manufactured from premium industrial-grade Stainless Steel (INOX) with a 1/2" nominal bureau diameter, a material selection that guarantees absolute resistance against rust, galvanic oxidation, and chemical degradation triggered by concentrated pesticides, liquid acids, or aggressive fertilizers. The manifold features an exact linear extension of 80 cm and comes factory-equipped with 4 structural U-clamps (mounting collars) positioned along the barrel. This design enables rigid mechanical binding of the steel rail onto the sprayer's structural implement chassis, dampening severe field vibrations and absorbing hydraulic shock loads stemming from line pressure shifts. The smooth inner surface of the INOX conduit maintains consistent laminar fluid flow, minimizing internal pressure drops while preventing the accumulation of chemical scaling or wettable powder residues, allowing for easy clean-water flushing procedures.
Technical Specifications
| Component Classification |
Primary fluid manifold pipeline / structural spray boom rail segment |
| Nominal Conduit Diameter |
1/2" (Half-inch gauge) |
| Manifold Longitudinal Extension |
80 cm |
| Included U-Clamps Quantity |
4 structural chassis-mounting collar clamps |
| Output Distribution Interface |
Tailored for clamp-on nozzle assemblies, supplied clean without jets/nozzles |
| Rail Structural Material |
Stainless Steel (INOX – premium corrosion and wear defense) |
| Product Reference Code |
25058 |
Operational Guidelines and Field Assembly Advice
- Rigid Chassis Mounting: Secure the 80 cm segment onto the primary frame of the spray boom using the 4 integrated structural U-clamps. Tighten the hardware fasteners thoroughly to eliminate any mechanical play during rough field operations.
- Nozzle Array Customization: Since this rail is supplied bare, operators have total freedom to align single, twin, or multi-selection (trijet/quadrijet) clamp-on nozzle bodies matched for 1/2" tubing, adjusting nozzle spacing parameters to meet specific swath criteria.
- Line Rinsing & Maintenance: Due to the anti-corrosive nature of Stainless Steel, the pipeline core resists crystallization and chemical binding. Running a systematic clear-water purge cycle after each treatment session washes away compound residues, protecting the seals of the attached clamp units.
