Diaphragm Pump AR 45 BP C Blue Flex | Annovi Reverberi

iPhotos are indicative: the product may differ in some details. Refer to the specifications.

Annovi ReverberiRef.

Diaphragm Pump AR 45 BP C Blue Flex | Annovi Reverberi

€465.00VAT incl.

Coupon -€9.30 -2% sul carrello

Sconto extra riservato ai clienti registrati

Accedi per sbloccare il codice

Prezzo finale con coupon: €455.70

Not sure it fits?Message us with your tractor model

Secure paymentsEasy returnsFree shipping over €30 + VAT

Description

Diaphragm Pump AR 45 BP C Blue Flex | Annovi Reverberi

Description:

Semi-hydraulic three-diaphragm pump, for use with aggressive products at low pressure. Parts in contact with the pumped liquids in reinforced Polypropylene, Kynar and AISI 316L. Diaphragms in BlueFlex™. Seals in Viton®. Three-diaphragm configuration for greater regularity of operation and less pulsation in the delivery circuit. Die-cast casing with mechanics in oil bath, transparent plastic tank for visual level control. Remote control sensor available on request. Oil drain plug. Pistons with segment for greater efficiency of the “oil cushion” system for membrane protection. Newly designed membrane blocking system to avoid contact lacerations even in heavy-duty conditions. Valves with spherical sector profile that offer less resistance to the passage of the liquid and improve volumetric efficiency.

Technical Features:

AR Code: 32000

Version: C

N. membranes: 3

Max flow rate (l/min): 43.3

Max flow rate (gpm): 11.4

Max pressure (bar): 20

Max pressure (psi): 290

Power (Hp): 2.1

Rev/min (rpm): 550

Net weight (Kg): 11

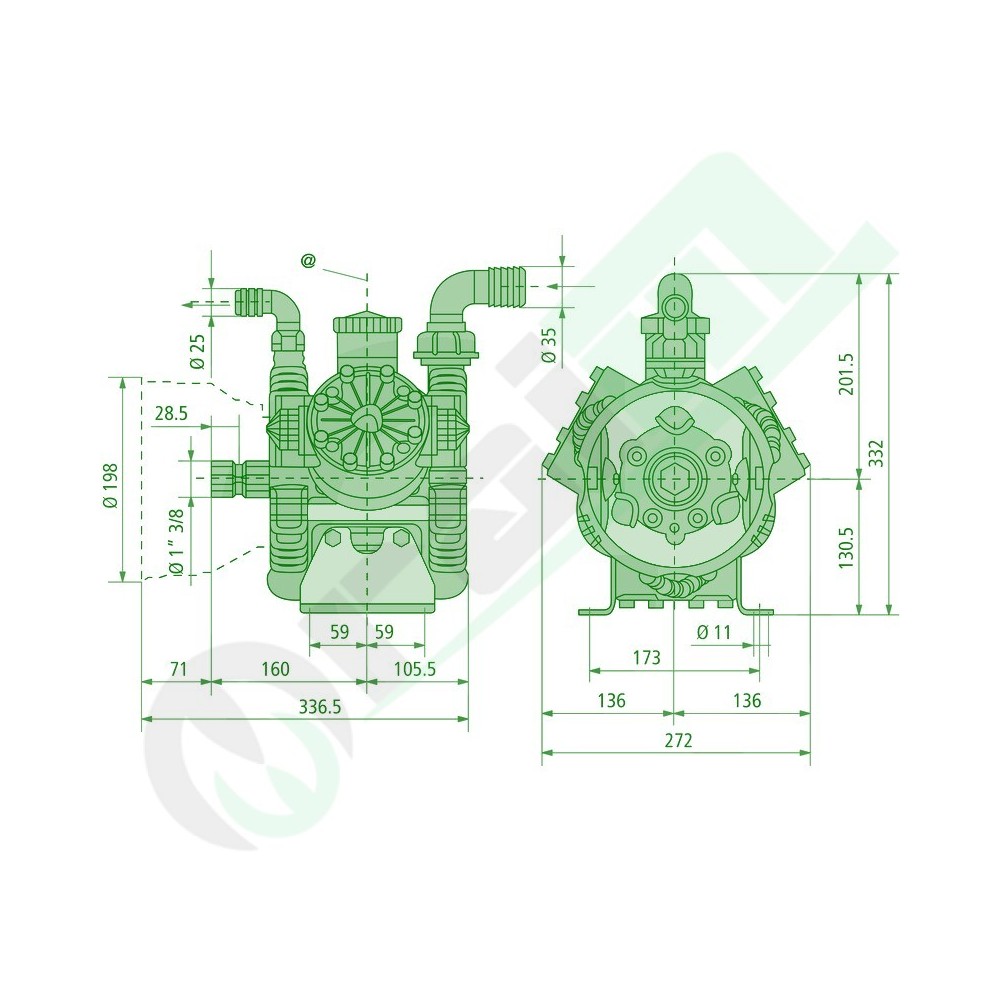

Dimensions (mm) - L: 272
