Description:

Four semi-hydraulic diaphragm pump, for low pressure applications. Parts in contact with pumped liquids in Rilsan plasticized aluminum and AISI 303/304. Diaphragms in NBR. Seals in NBR. Die-cast casing with mechanics in oil bath, transparent plastic tank for visual level control. Supplied with hydro-pneumatic damper for greater regularity of operation and less pulsation in the delivery circuit. Remote control sensor available on request. Remote oil tank mounting kit available on request. Oil drain plug. Pistons with segment for greater efficiency of the “oil cushion” system for membrane protection. Valves with spherical sector profile that offer less resistance to the passage of the liquid and improve volumetric efficiency. Sturdy feet fixed to the pump casing. Complete with overpressure valve with reset and cardan protection. Geomet screws. Pulley applications available, flanges for hydraulic motors and for hydraulic pumps for speed multipliers. Kit for coupling two pumps to form a modular group intended for the different uses of the sprayer.

Technical Features:

AR Code: 1228

Version: C/F Ø 32

N. membranes: 4

Max flow rate (l/min): 166.2

Max flow rate (gpm): 43.9

Max pressure (bar): 20

Max pressure (psi): 290

Power (Hp): 8.4

Rev/min (rpm): 550

Net weight (Kg): 27.5

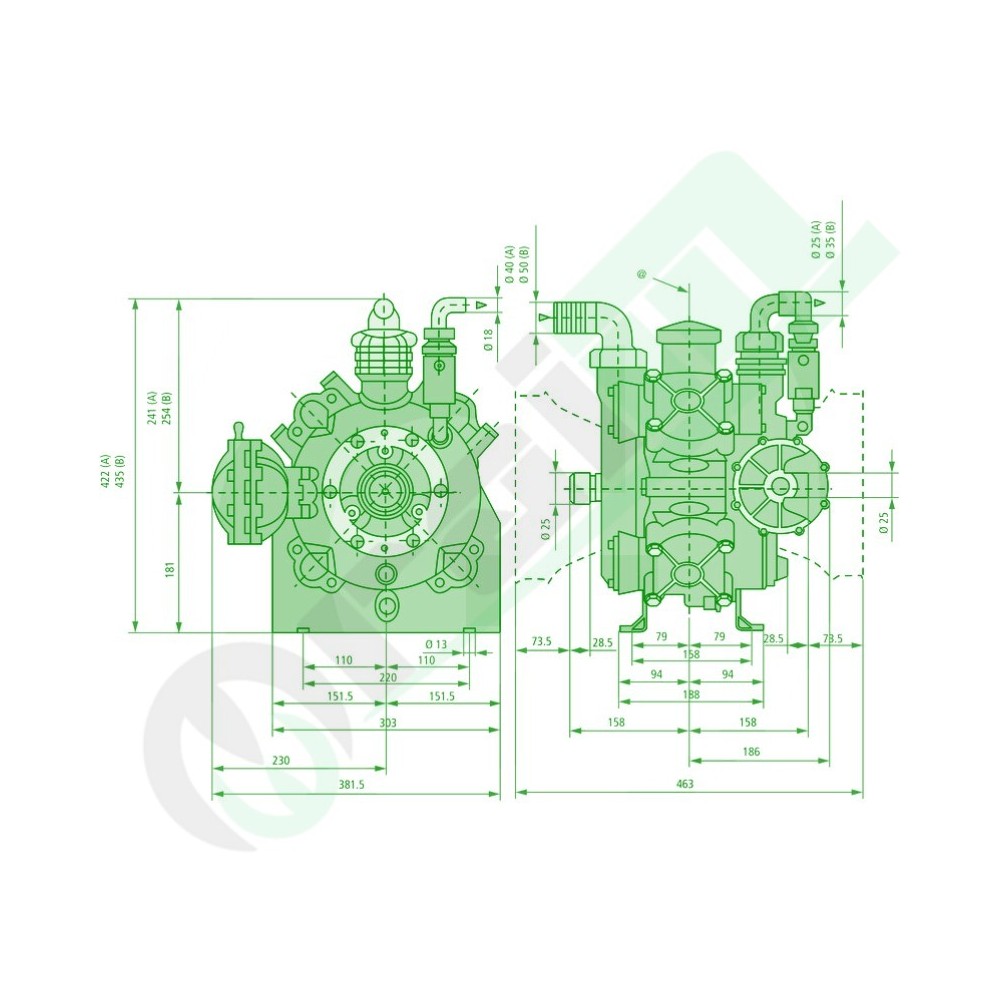

Dimensions (mm) - L: 381.5

Dimensions (mm) - H: 422

Dimensions (mm) - W: 463

Suction (mm): ø 40

Discharge (mm): ø 25

Max temperature (°C): 60
