Description:

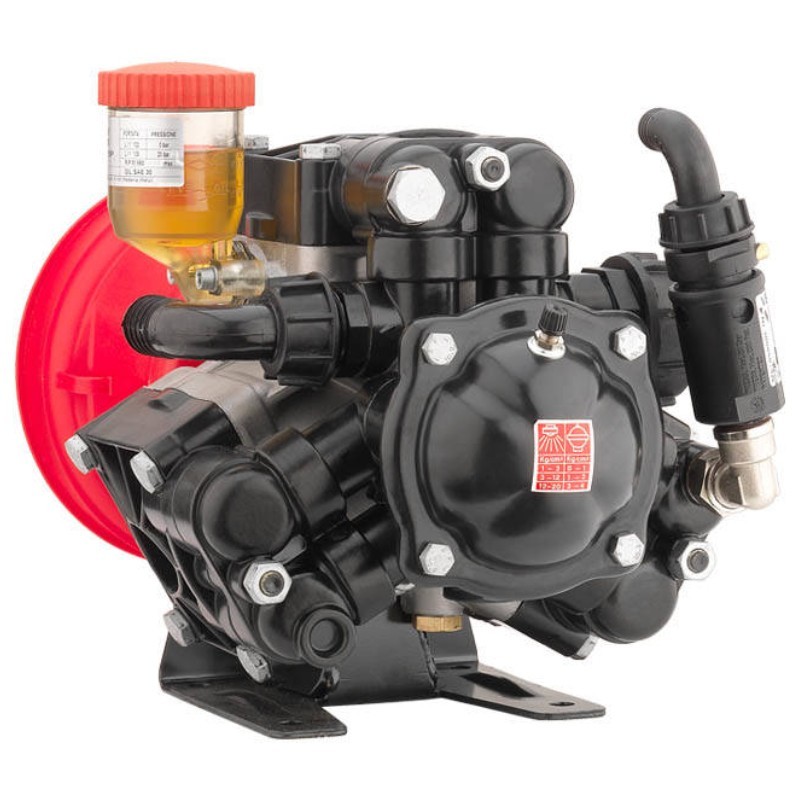

Semi-hydraulic three-diaphragm pump, for low-pressure applications. Parts in contact with pumped liquids in Rilsan plasticized aluminum and AISI 303/304. Diaphragms available in NBR. Seals in NBR. Die-cast casing with mechanics in oil bath, transparent plastic tank for visual level control. Supplied with hydro-pneumatic damper for greater regularity of operation and less pulsation in the delivery circuit. Remote control sensor available on request. Remote oil tank mounting kit available on request. Oil drain plug. Pistons with segment for greater efficiency of the “oil cushion” system for membrane protection. Valves with spherical sector profile that offer less resistance to the passage of the liquid and improve volumetric efficiency. Sturdy feet fixed to the pump casing. Complete with overpressure valve with reset and cardan shaft protection. Geomet screws. Available with reducers for internal combustion engines, pulley applications or flanges for hydraulic motors.

Technical Features:

AR Code: 1206

Version: C

N. membranes: 3

Max flow rate (l/min): 128

Max flow rate (gpm): 33.8

Max pressure (bar): 20

Max pressure (psi): 290

Power (Hp): 6.8

Rev/min (rpm): 550

Net weight (Kg): 15.5

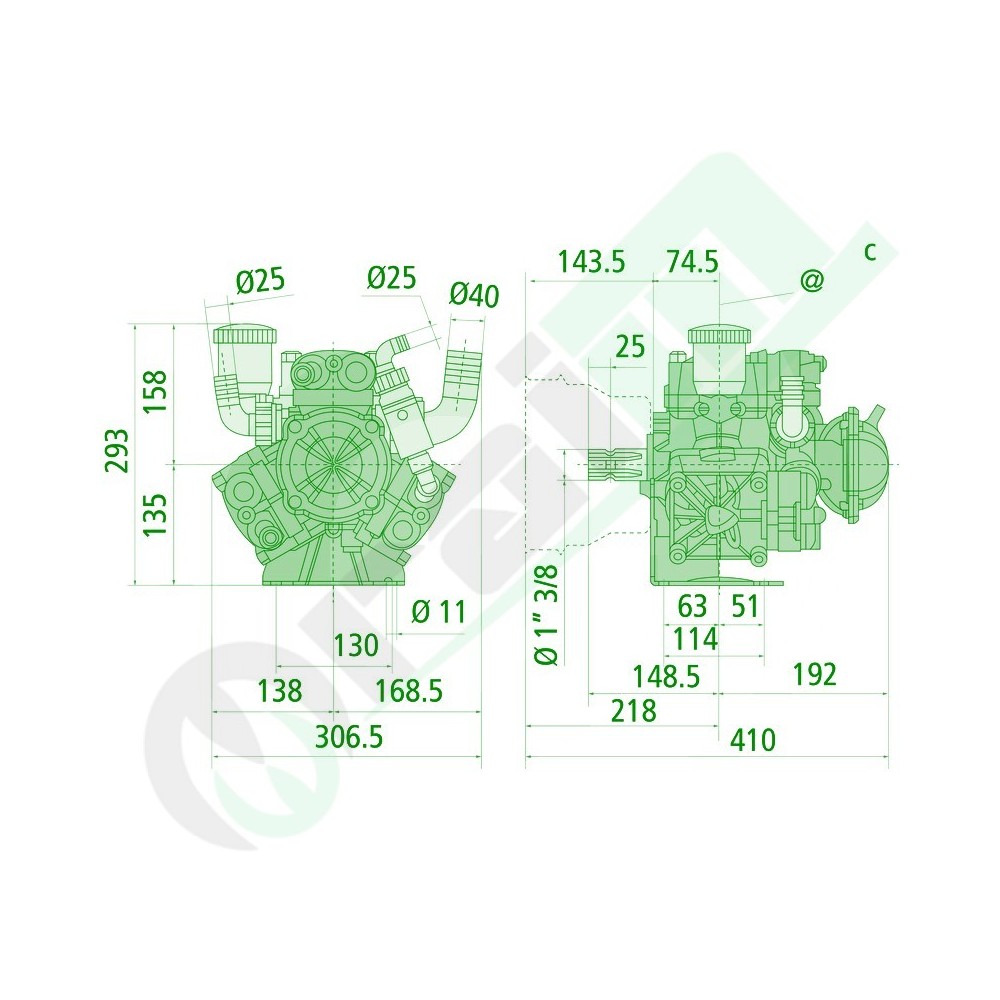

Dimensions (mm) - L: 306.5

Dimensions (mm) - H: 293

Dimensions (mm) - W: 410

Suction (mm): ø 40

Discharge (mm): ø 25

Max temperature (°C): 60
