Description:

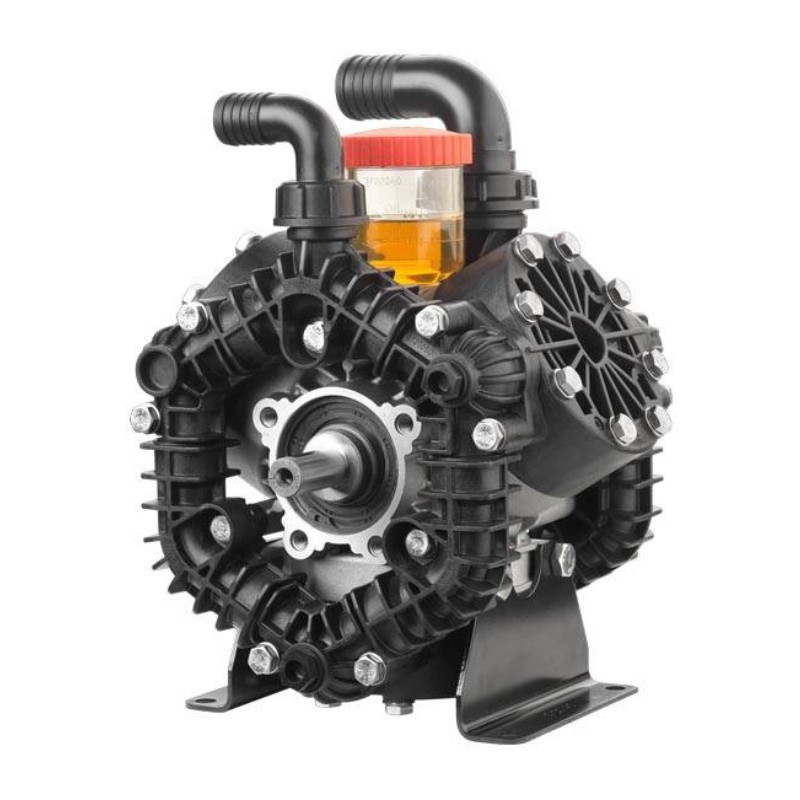

Semi-hydraulic three-diaphragm pump, for low-pressure applications. Parts in contact with pumped liquids in reinforced polypropylene and AISI 303/304. Diaphragms in NBR. Seals in NBR. Die-cast casing with mechanics in oil bath, transparent plastic tank for visual level control. Remote oil tank mounting kit available on request. Oil drain plug. Pistons with segment for greater efficiency of the “oil cushion” system for membrane protection. Newly designed membrane locking system to prevent contact lacerations even in heavy-duty conditions. Valves with spherical sector profile that offer less resistance to the passage of the liquid and improve volumetric efficiency.

Technical Features:

AR Code: 32001

Version: SP

N. membranes: 3

Max flow rate (l/min): 43.3

Max flow rate (gpm): 11.4

Max pressure (bar): 20

Max pressure (psi): 290

Power (Hp): 2.1

Rev/min (rpm): 550

Net weight (Kg): 11

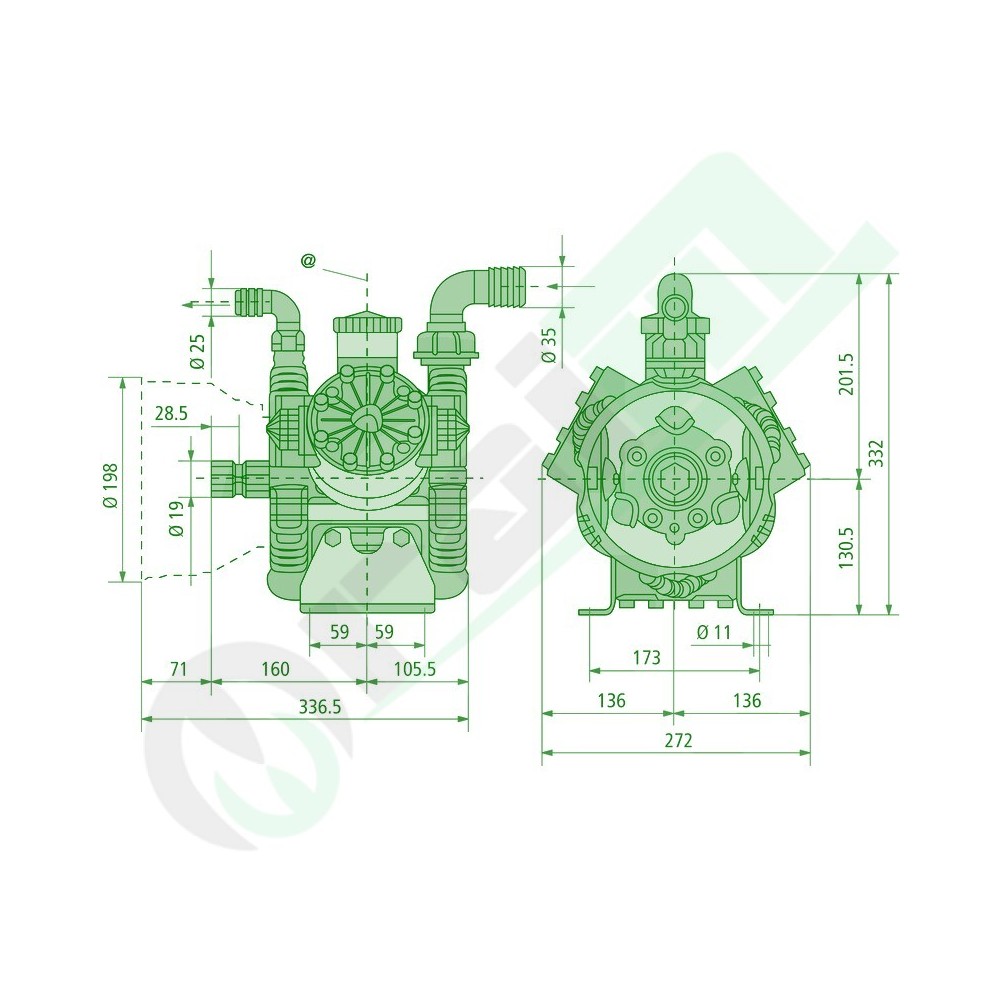

Dimensions (mm) - L: 272

Dimensions (mm) - H: 332

Dimensions (mm) - W: 336.5

Suction (mm): ø 35

Discharge (mm): ø 25

Max temperature (°C): 60
